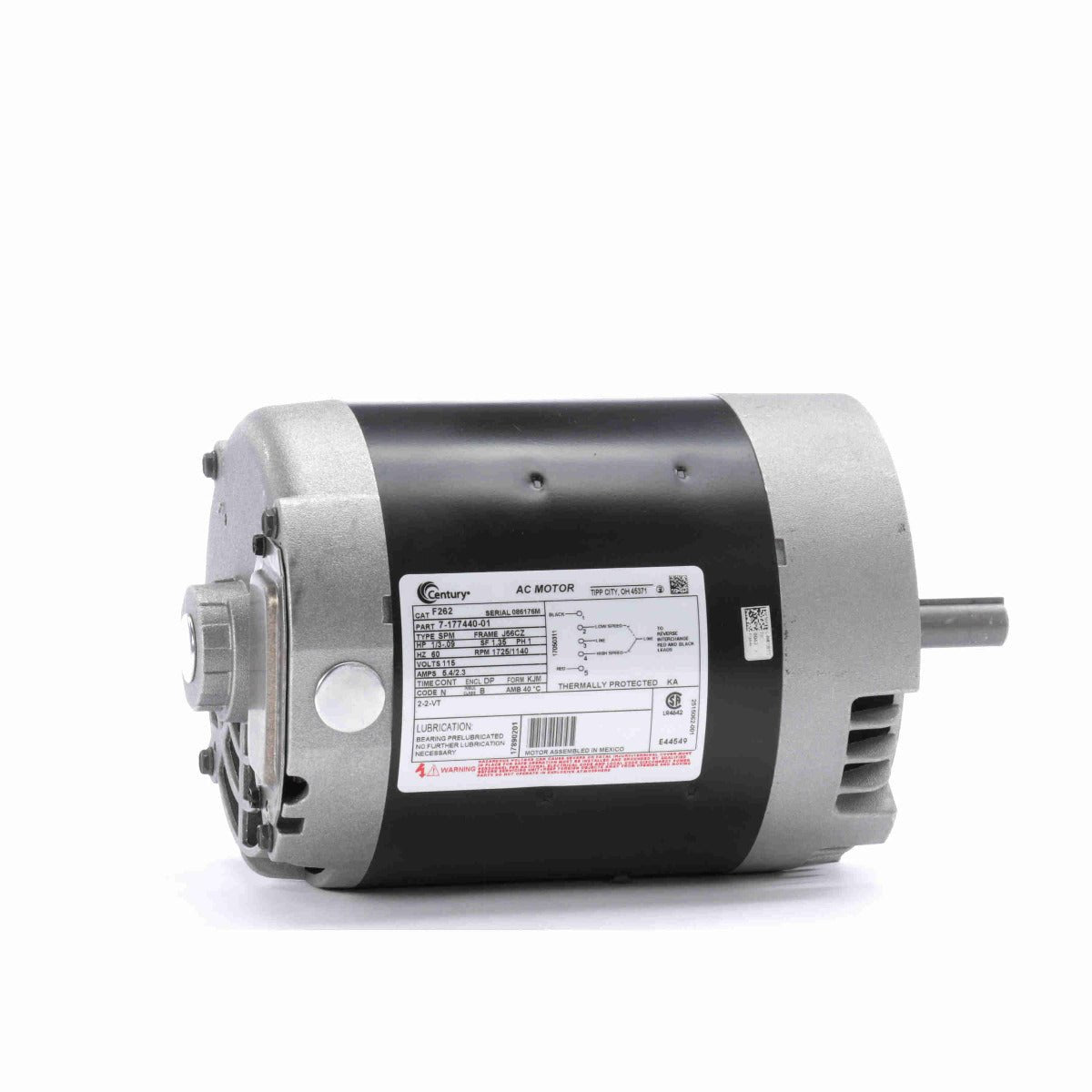

* Image is for reference only

F262 Century Motor 1/3-9/100HP 1725/1140RPM J56CZ ODP 115 Volt 1 Phase

SKU: F262
$454.17
Sale $454.17
Description
  • 2-1/4 x 5/8 shaft dimensions
  • Single speed
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/3-.09 Hp
Output KW: 0.25 kW Voltage: 115 V
Speed: 1725/1140 rpm Service Factor: 1.35
Frame: J56CZ Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.4/2.3 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Split Phase, Induction Run, Multi-Speed Starting Method: Across The Line
Poles: 4/6 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.25 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 2.25 in

General Specifications

UPC: 786674019820 Weight: 23.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.00 IN
Packaged Height: 8.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
