C830V1 Century General Purpose Motor

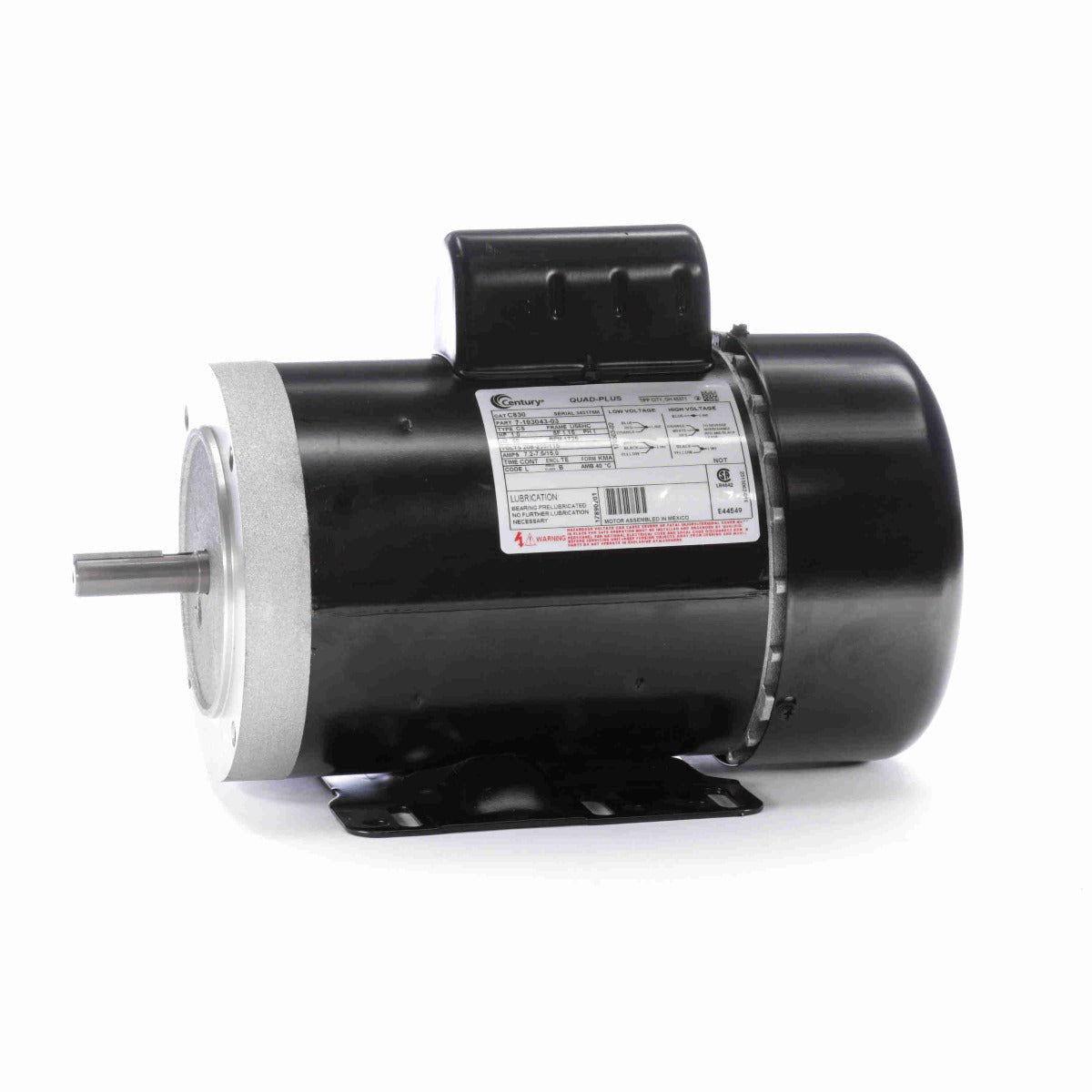

* Image is for reference only

C830V1 Century General Purpose Motor | 1HP 1725RPM U56HC TEFC 115/208-230V Single Phase

SKU: C830V1
$468.40
Sale $468.40
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and effciency performance.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56HC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 72 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 14/6.8-7.0 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.16 in
Frame Length: 7.65 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in

General Specifications

UPC: 786674074775 Weight: 25.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
