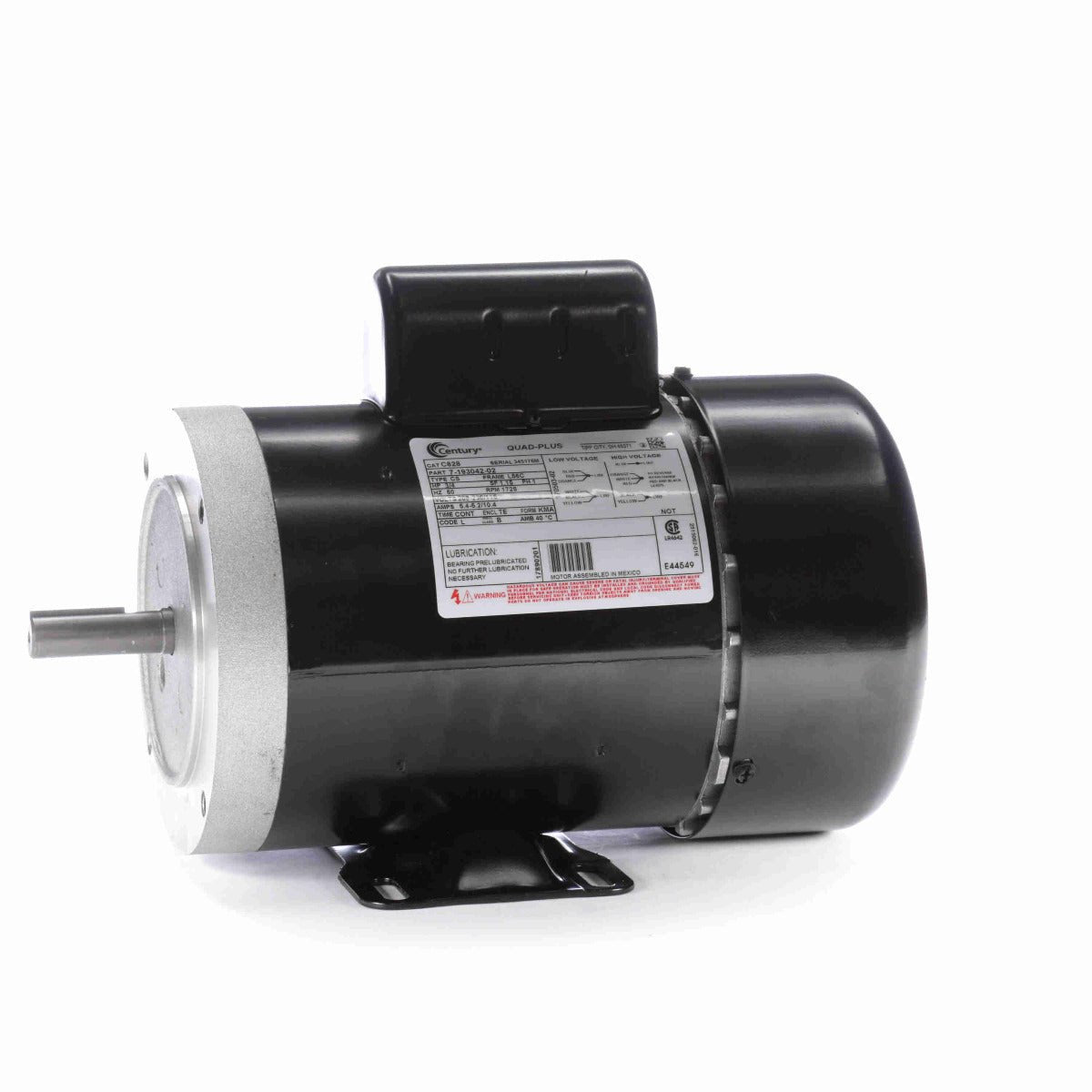

* Image is for reference only

C828V1 Century Motor 3/4HP 1725RPM L56C TEFC 208-230/115 Volt 1 Phase

SKU: C828V1
$433.38
Sale $433.38
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and effciency performance.
Specifications

Nameplate Specifications

Phase: 1 Output HP: .75 Hp
Output KW: 0.56 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 72 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 10.4/5.2-5.2 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.15 in
Frame Length: 7.65 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in

General Specifications

UPC: 786674075291 Weight: 32.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 26.60 512.0 107.00 297.0 162 5.76 92.0 0.75
Locked-Rotor 27.00 519.0 108.00 300.0 0 5.81 90.0 0.75
Full Load 5.20 100.0 36.00 100.0 1,750 0.77 68.0 0.75
Break-Down 26.37 507.0 87.00 242.0 1,530 5.72 94.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 4.00 4.10 4.40 4.80 5.20 5.60 6.00
Rated Output (KW) 0.15 0.29 0.45 0.62 0.77 0.91 0.98
Efficiency (%) 0.0 49.0 63.0 68.0 72.0 70.5 70.5
Power Factor (%) 16.5 30.5 44.0 55.5 68.0 68.5 70.5
Speed (RPM) 1,790 1,780 1,770 1,760 1,750 1,740 1,730
Temp. Rise @ FL 0.0 0.0 0.0 0.0 77.0 95.0 0.0
Torque (ft-lbs) 0.00 9.00 18.00 27.00 36.00 41.40 45.00
