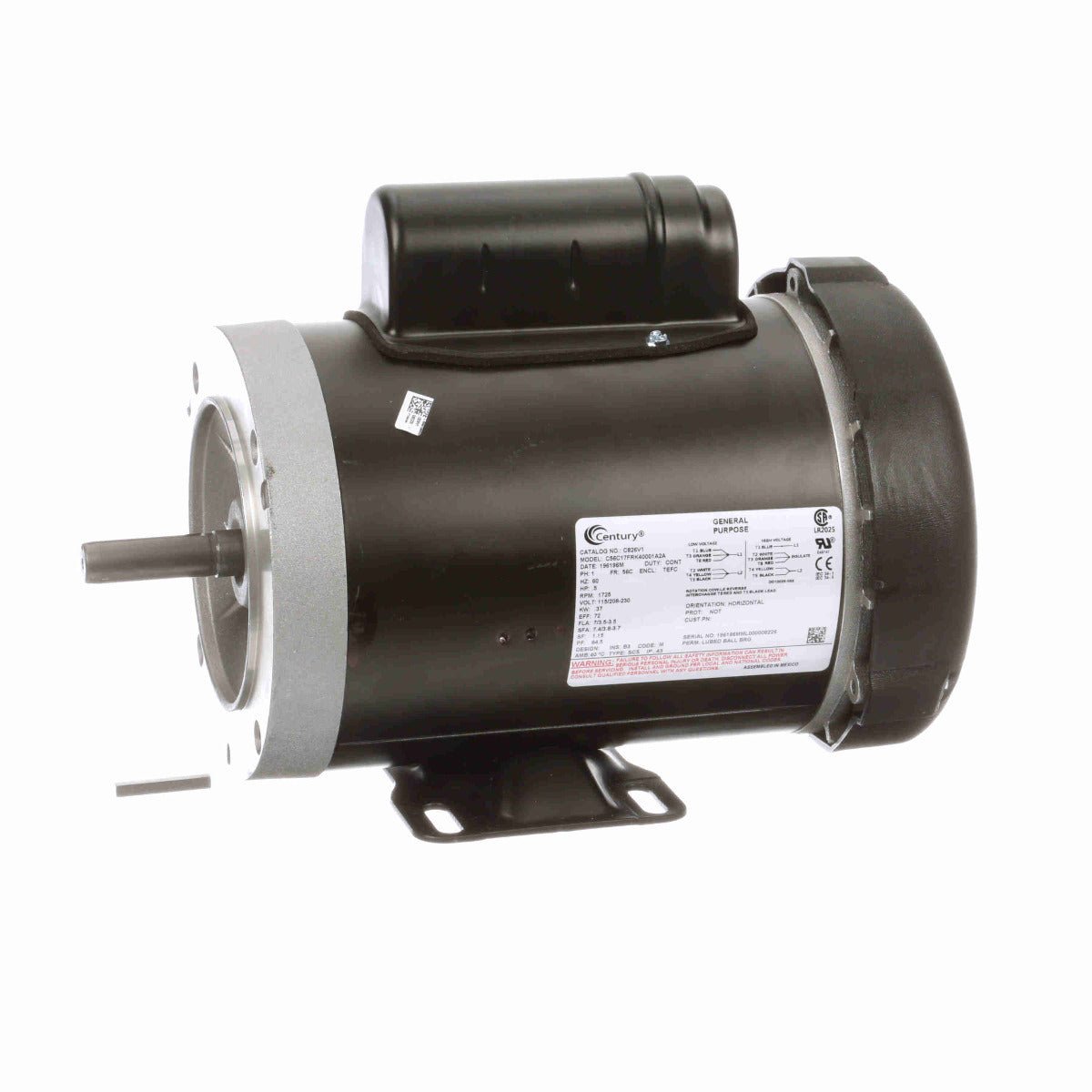

C826V1 Century Motor 1/2HP 1725RPM G56C TEFC 115/208-230 Volt 1 Phase

SKU: C826V1
$373.78
Sale $373.78
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and efficiency performance.
Specifications

Nameplate Specifications

Phase: 1 Output HP: .5 Hp
Output KW: 0.37 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 72 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 7/3.5-3.5 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.66 in
Frame Length: 7.15 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674074768 Weight: 29.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
