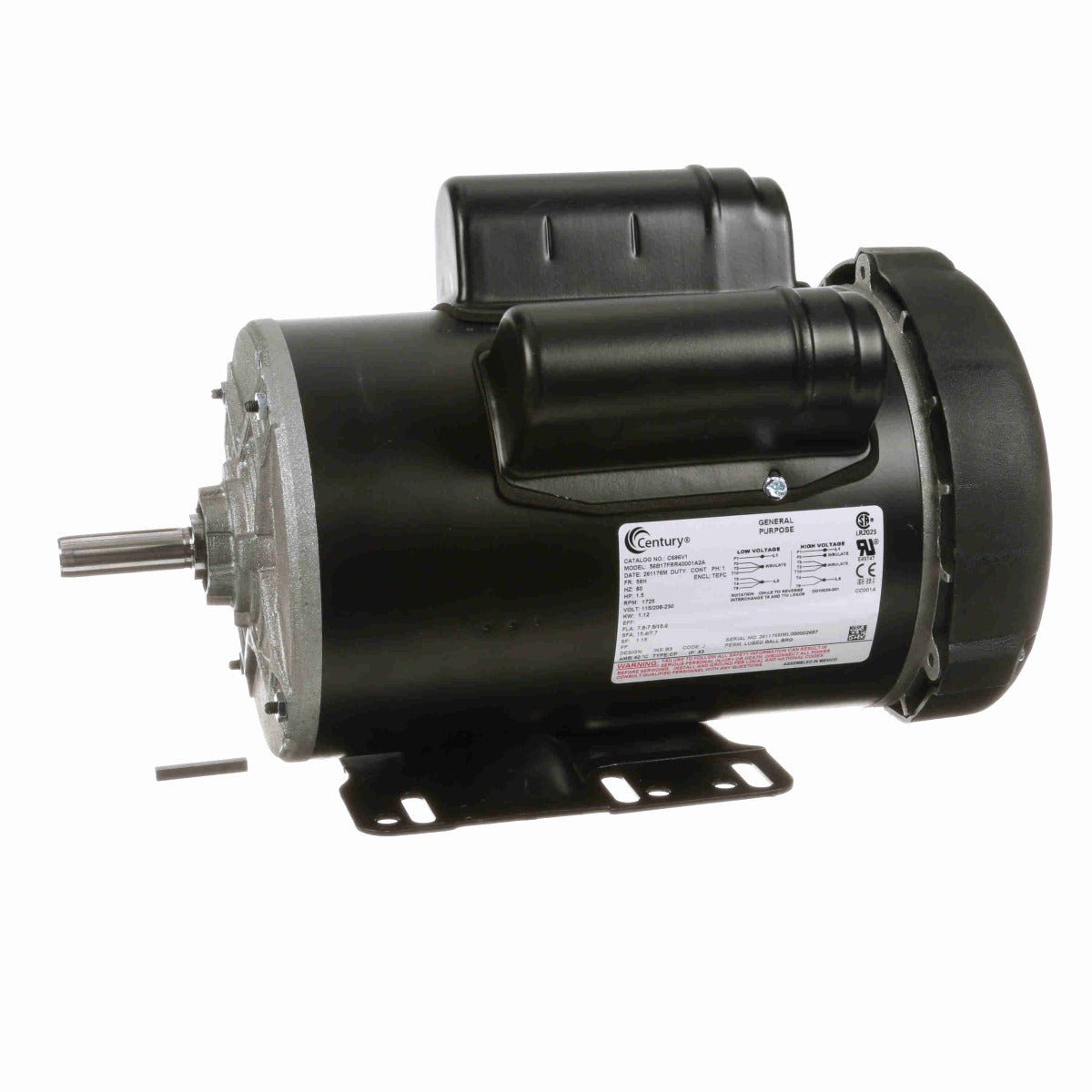

* Image is for reference only

C686V1 Century Motor 1.5HP 1725RPM M56H TEFC 208-230/115 Volt 1 Phase

SKU: C686V1
$642.19
Sale $642.19
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power specifications.
  • Class B or F Insulation protects motor for a maximum temperature rating.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56H Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Efficiency: 82 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 15.0/7.8-7.5 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 14.33 in
Frame Length: 8.65 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in

General Specifications

UPC: 786674074744 Weight: 43.00 LB
Packaged Length: 15.00 IN Packaged Width: 13.00 IN
Packaged Height: 10.50 IN HTC: 8501.40.6040
Country of Origin: Mexico
