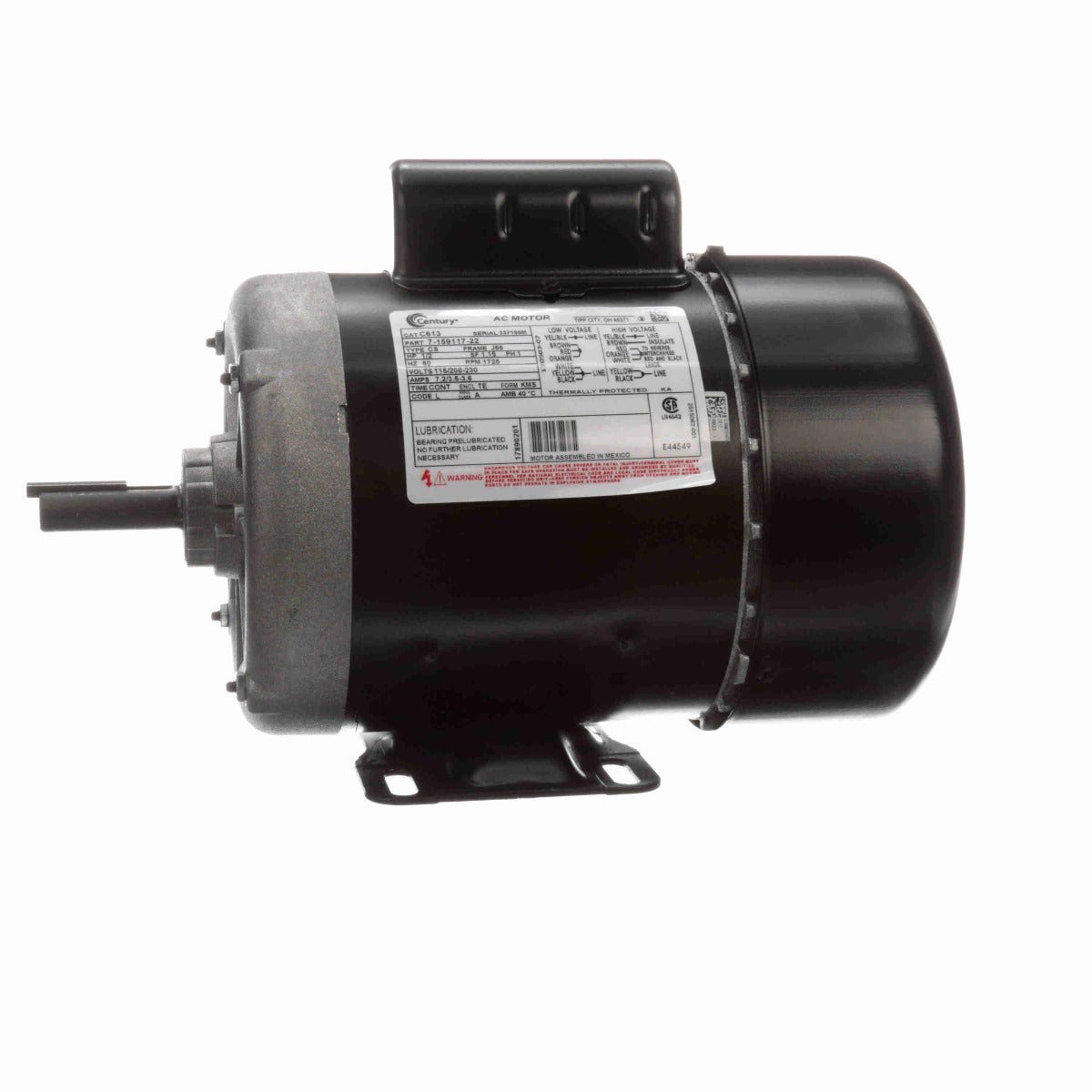

* Image is for reference only

C613V1 Century Motor 1/2HP 1725RPM J56 TEFC 115/208-230 Volt 1 Phase

SKU: C613V1
$420.84
Sale $420.84
Description
  • Heavy gauge steel construction
Specifications

Nameplate Specifications

Phase: 1 Output HP: .5 Hp
Output KW: 0.37 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Efficiency: 74 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 6.4/3.4-3.2 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.83 in
Frame Length: 7.15 in Shaft Diameter: 0.625 in
Shaft Extension: 2.03 in

General Specifications

UPC: 786674074652 Weight: 28.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 17.68 552.0 65.00 271.0 0 3.87 90.5 0.50
Break-Down 17.35 542.0 56.00 233.0 1,520 3.81 95.0 0.50
Full Load 3.20 100.0 24.00 100.0 1,745 0.50 67.5 0.50
Pull-Up 17.52 548.0 59.40 248.0 157 3.83 92.6 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 2.30 2.33 2.50 2.80 3.20 3.50 3.70 4.20
Rated Output (KW) 0.06 0.16 0.26 0.38 0.50 0.58 0.63 0.76
Efficiency (%) 0.0 59.5 72.0 74.0 74.0 74.0 73.5 71.5
Power Factor (%) 12.0 29.5 45.5 58.0 67.5 71.5 74.0 78.5
Speed (RPM) 1,799 1,785 1,775 1,760 1,745 1,735 1,725 1,705
Temp. Rise @ FL 0.0 0.0 0.0 0.0 53.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 6.00 12.00 18.00 24.00 27.60 30.00 36.00
