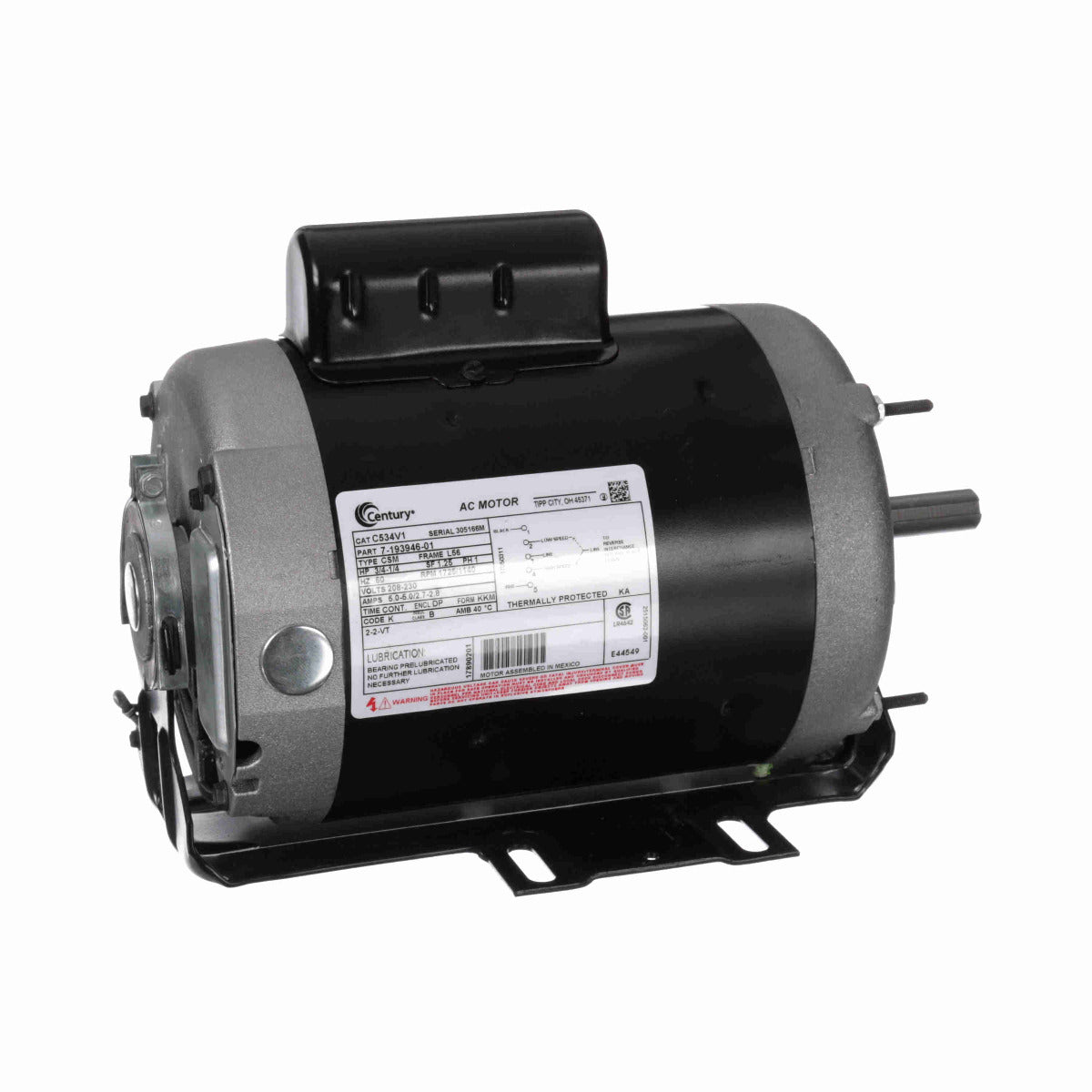

* Image is for reference only

C534V1 Century Motor 3/4-1/4HP 1725/1140RPM L56 ODP 208-230 Volt 1 Phase

SKU: C534V1
$861.57
Sale $861.57
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • Double-shielded bearings extend the service life of the motor.
  • Automatic reset thermal protector (as noted) protects against overload.
  • Moderate starting torque helps reduce fan stresses.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 3/4-1/4 Hp
Output KW: 0.56 kW Voltage: 208-230 V
Speed: 1725/1140 rpm Service Factor: 1.25
Frame: L56 Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.0-5.0/2.7-2.8 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2-2-VT

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Multi-Speed Starting Method: Across The Line
Poles: 4/6 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.25 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.97 in

General Specifications

UPC: 786674016232 Weight: 32.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
