Home » C521 Century Farm Duty Motor | 1/2HP 1725RPM J56 TEFC 115/208-230V Single Phase

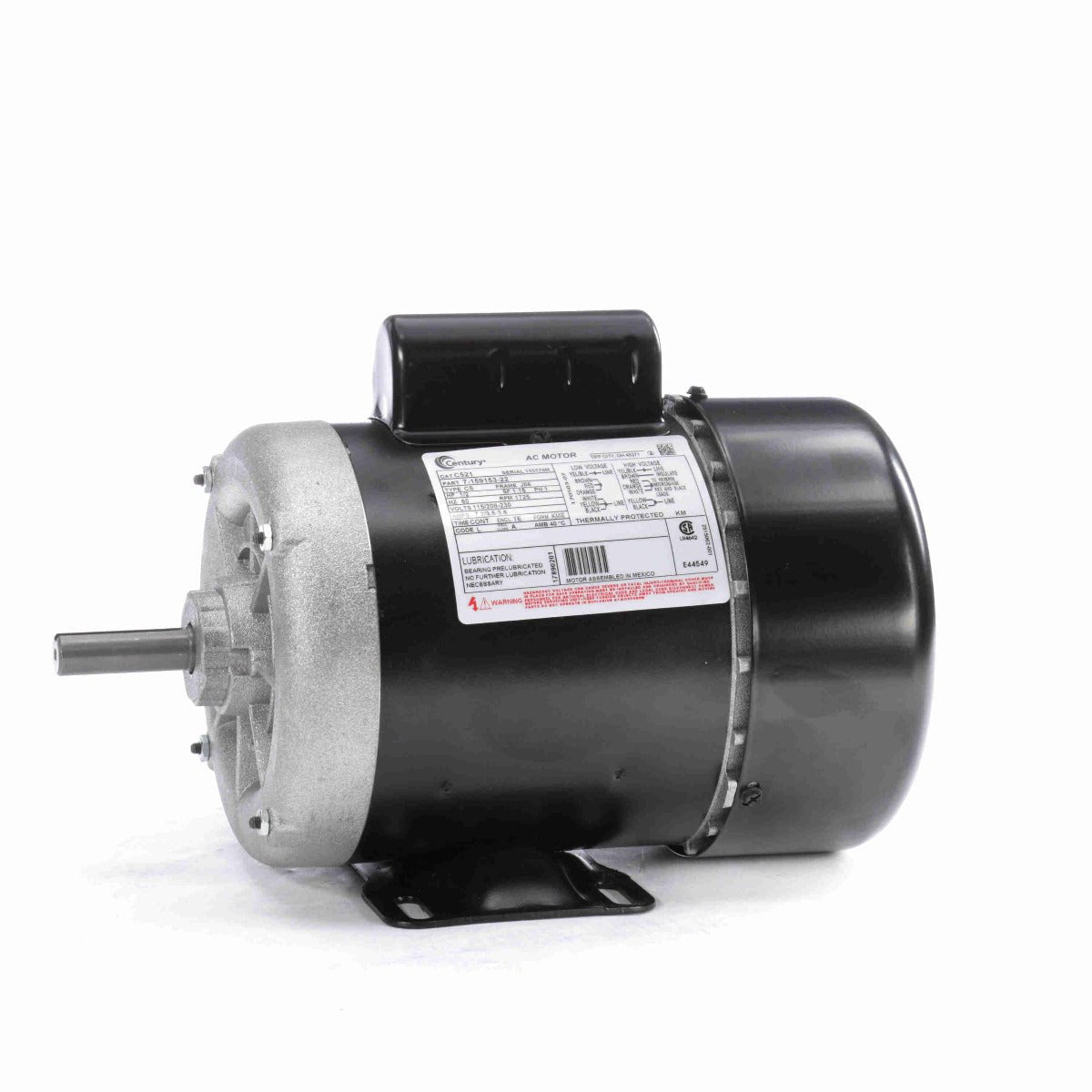

C521 Century Farm Duty Motor

* Image is for reference only

C521 Century Farm Duty Motor | 1/2HP 1725RPM J56 TEFC 115/208-230V Single Phase

SKU: C521
$455.31
Sale $455.31
Description
  • Double-shielded bearings extend the service life of the motor.
  • EXXON®?Polyrex®?EM Grease supports extreme temperatures between -20°F(-29 ? C) and +350°F(+177?C).
  • Shaft flingers protect bearings from damage caused by dirt and rain.
  • Condensation drains allow the motor to expel and drain built-up moisture.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: J56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 7.2/3.5-3.6 A
Duty: Continuous Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.24 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674016157 Weight: 29.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
