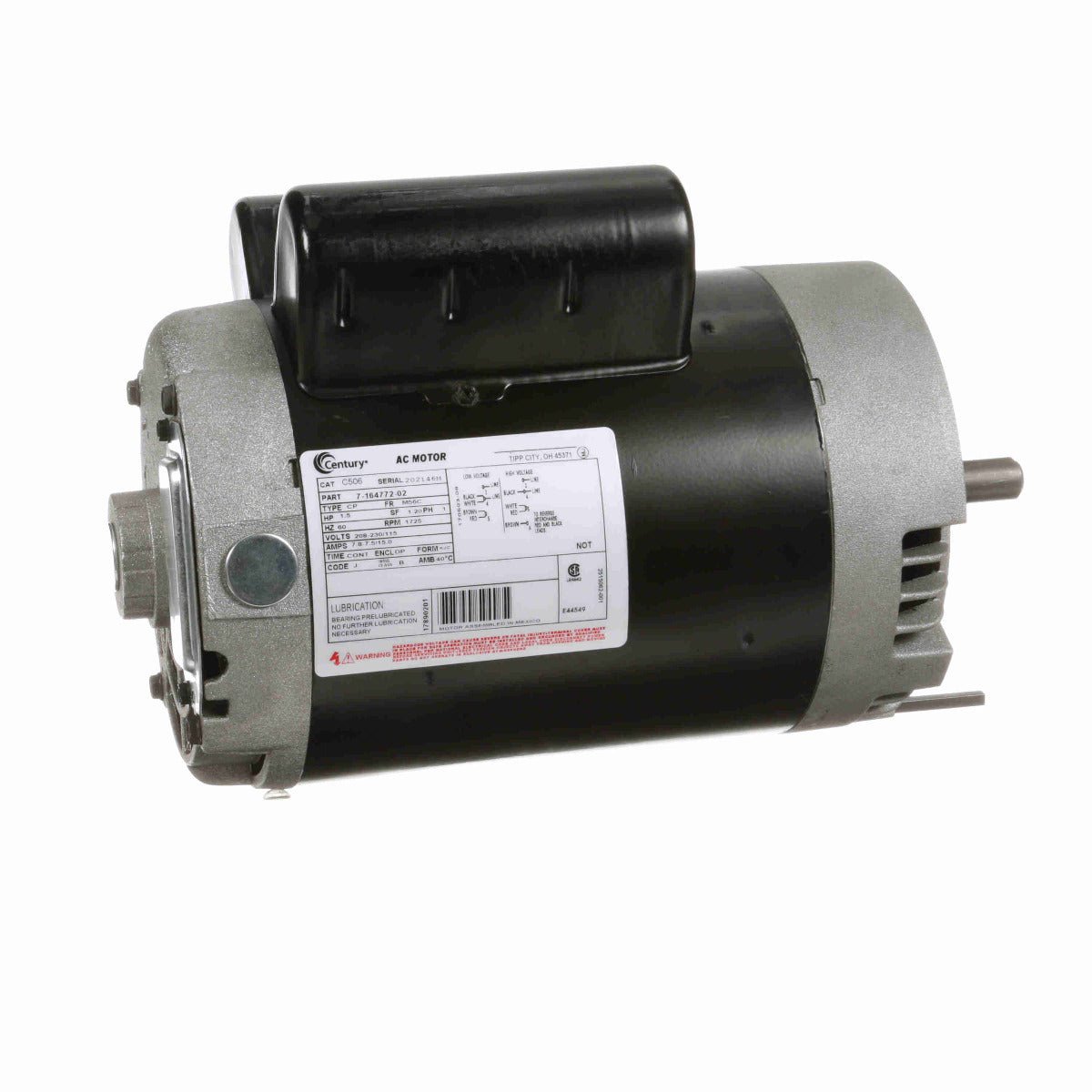

* Image is for reference only

C506ES Century Motor 1.5HP 1725RPM M56C ODP 208-230/115 Volt 1 Phase

SKU: C506ES
$272.83
Sale $272.83
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 115/230 V
Speed: 1725 rpm Service Factor: 1.2
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Protection Efficiency: 82.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 12.6/6.3 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: N CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.69 in
Frame Length: 7.88 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674070760 Weight: 25.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
