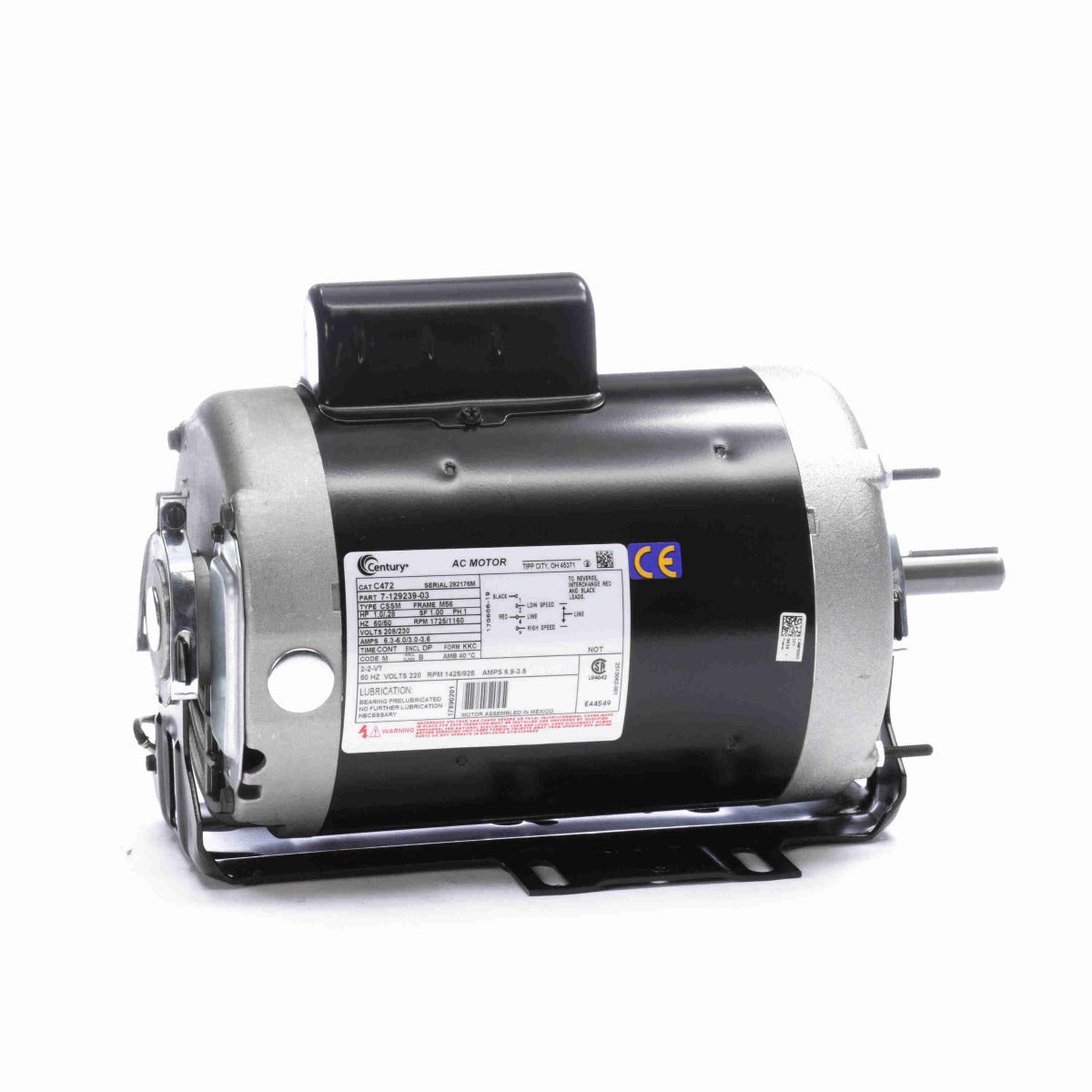

* Image is for reference only

C472 Century Motor 1-7/25HP 1725/1160RPM M56 ODP 208-230 Volt 1 Phase

SKU: C472
$869.08
Sale $869.08
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • Double-shielded bearings extend the service life of the motor.
  • Automatic reset thermal protector (as noted) protects against overload.
  • Moderate starting torque helps reduce fan stresses.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.0/.28 Hp
Output KW: 0.75 kW Voltage: 208/230 V
Speed: 1725/1160 rpm Service Factor: 1
Frame: M56 Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 6.3-6.0/3.0-3.6 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2-2-VT

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Special Service, Multi-Speed Starting Method: Across The Line
Poles: 4/6 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.69 in
Frame Length: 6.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674016058 Weight: 36.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
