C312CV1 Century Farm Duty Motor | 3/4HP 1725RPM K56 TEFC 115/230V Single Phase
Skip to product information
Open media 1 in modal

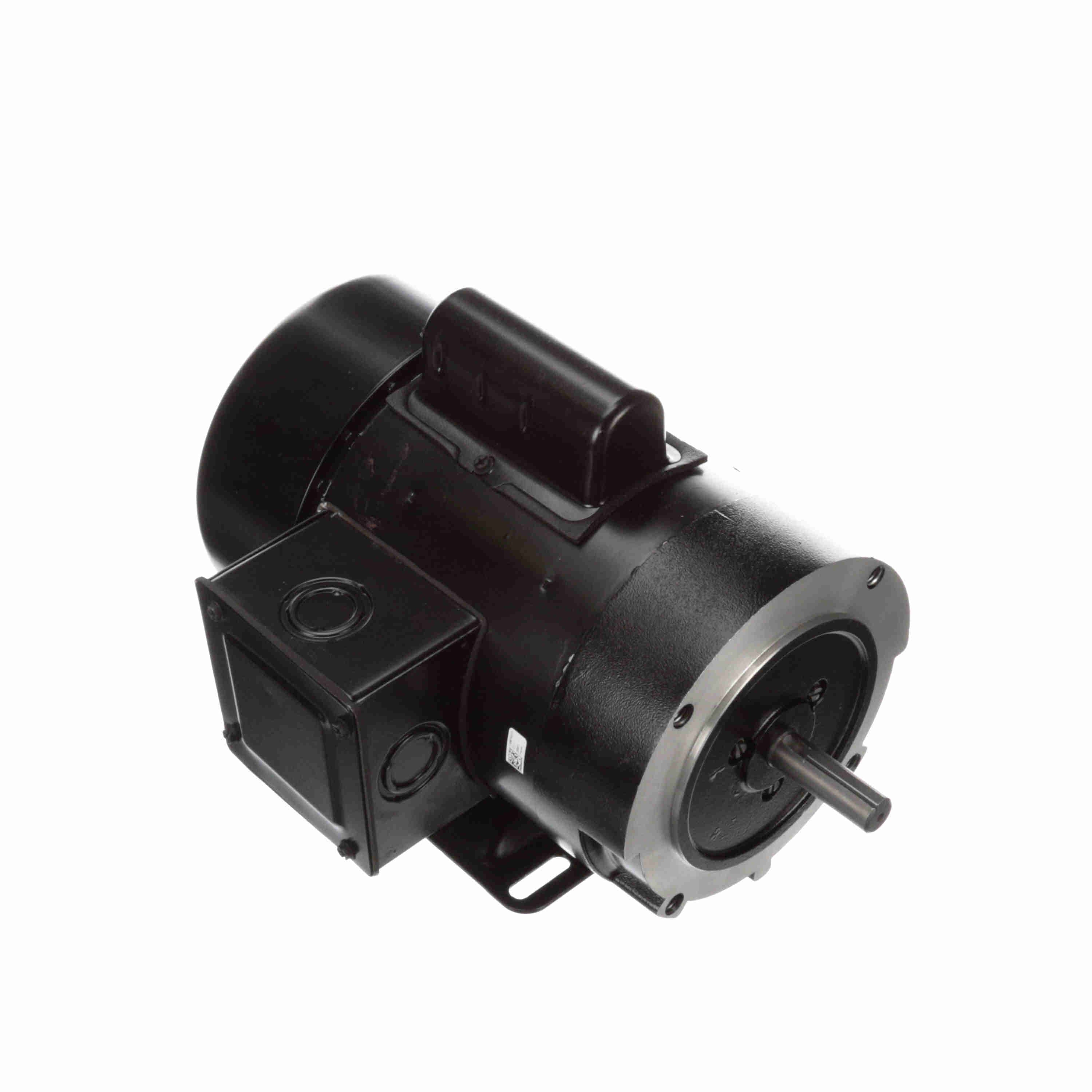

* Image is for reference only
C312CV1 Century Farm Duty Motor | 3/4HP 1725RPM K56 TEFC 115/230V Single Phase
SKU:
C312CV1
Description
Specifications
Description
This item replaces Century C312
Shaft end mechanically locked on C-face models
Shaft slinger
Low temperature manual reset thermal protector
Condensate drains
Specifications
Nameplate Specifications
Phase:
1
Output HP:
.75 Hp
Output KW:
0.56 kW
Voltage:
115/230 V
Speed:
1725 rpm
Service Factor:
1.15
Frame:
56C
Enclosure:
Totally Enclosed Fan Cooled
Thermal Protection:
Thermally Protected
Efficiency:
72 %
Ambient Temperature:
40 °C
Frequency:
60 Hz
Current:
10.4/5.2 A
Duty:
Continuous
Insulation Class:
F
UL:
Recognized
CSA:
Y
CE:
Y
Number of Speeds:
1
Technical Specifications
Electrical Type:
Capacitor Start Induction Run
Starting Method:
Across The Line
Poles:
4
Rotation:
Selective Counterclockwise
Mounting:
Rigid Base
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
NEMA 56
Overall Length:
13.15 in
Frame Length:
7.65 in
Shaft Diameter:
0.625 in
Shaft Extension:
2.06 in
General Specifications
UPC:
786674074508
Weight:
34.00 LB
Packaged Length:
13.75 IN
Packaged Width:
10.00 IN
Packaged Height:
10.00 IN
Country of Origin:
Mexico
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Full Load
5.20
100.0
36.00
100.0
1,750
0.77
68.0
0.75
Locked-Rotor
27.00
519.0
108.00
300.0
0
5.81
90.0
0.75
Pull-Up
26.60
512.0
107.00
297.0
162
5.76
92.0
0.75
Break-Down
26.37
507.0
87.00
242.0
1,530
5.72
94.0
0.75
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
115 %
125 %
Current (Amps)
4.00
4.10
4.40
4.80
5.20
5.60
6.00
Rated Output (KW)
0.15
0.29
0.45
0.62
0.77
0.91
0.98
Efficiency (%)
0.0
49.0
63.0
68.0
72.0
70.5
70.5
Power Factor (%)
16.5
30.5
44.0
55.5
68.0
68.5
70.5
Speed (RPM)
1,790
1,780
1,770
1,760
1,750
1,740
1,730
Temp. Rise @ FL
0.0
0.0
0.0
0.0
77.0
95.0
0.0
Torque (ft-lbs)
0.00
9.00
18.00
27.00
36.00
41.40
45.00
