Home » C044A Century Motor 1/2HP 1700RPM F48Y ENCLOSED 115/230 Volt 1 Phase
C044A Century Motor 1/2HP 1700RPM F48Y ENCLOSED 115/230 Volt 1 Phase - Square One Electric Motors & Pumps

* Image is for reference only

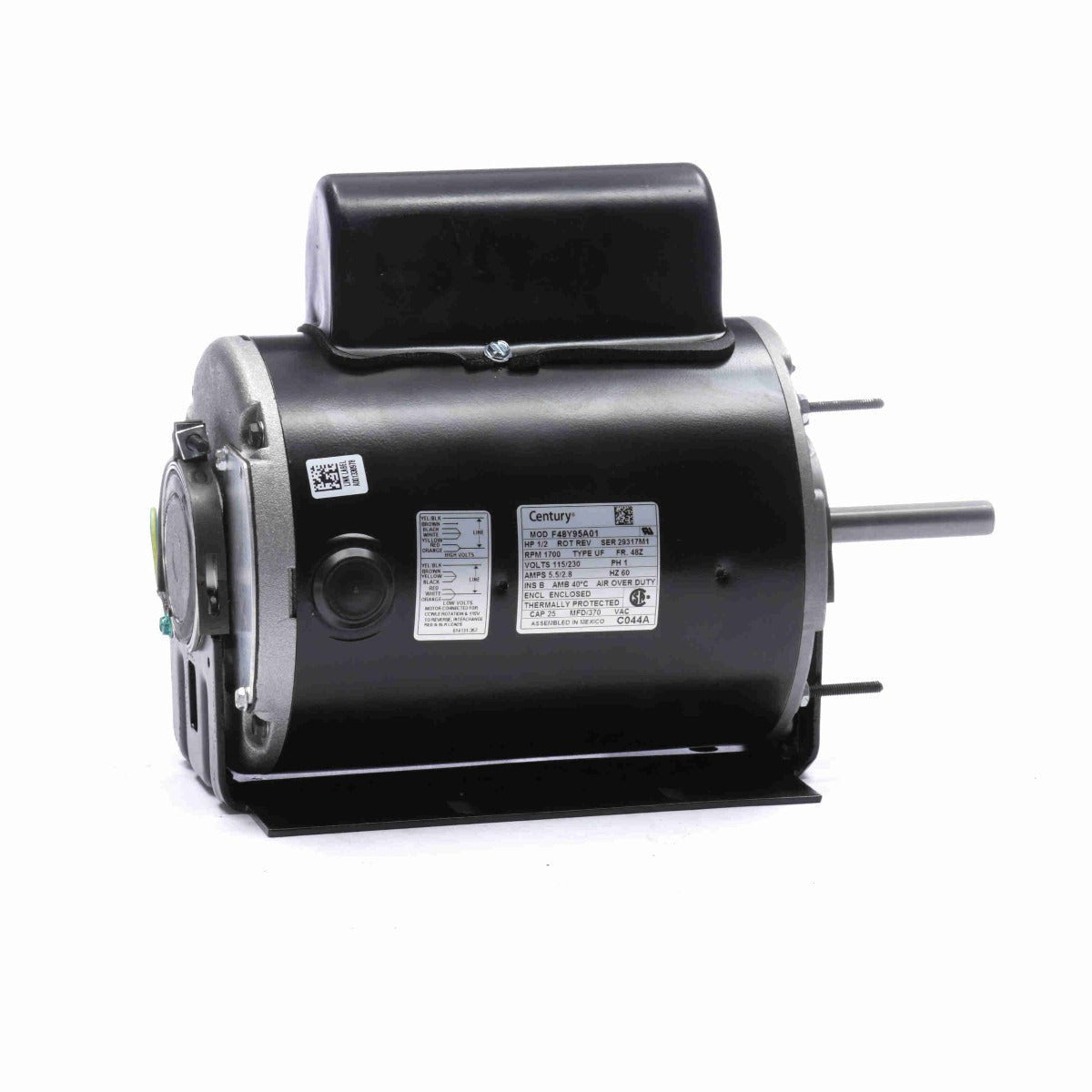

C044A Century Motor 1/2HP 1700RPM F48Y ENCLOSED 115/230 Volt 1 Phase

SKU: C044A
$251.84
Sale $251.84
Description
  • Farm / AG Direct Drive Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Supplied with Motor)
  • Thermal Protection: Automatic
  • Totally Enclosed Air Over, Fully Gasketed
  • Class B Insulation, 40°C Ambient
  • Ball Bearings, Double Sealed
  • 1/2" Diameter Shaft with Double Flat
  • Resilient Base, Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 115/230 V
Speed: 1700 rpm Service Factor: 1
Frame: F48Z Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.5/2.8 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 11.00 in
Frame Length: 6.50 in Shaft Diameter: 0.500 in
Shaft Extension: 3.14 in

General Specifications

UPC: 786674015082 Weight: 24.00 LB
Packaged Length: 13.00 IN Packaged Width: 7.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
