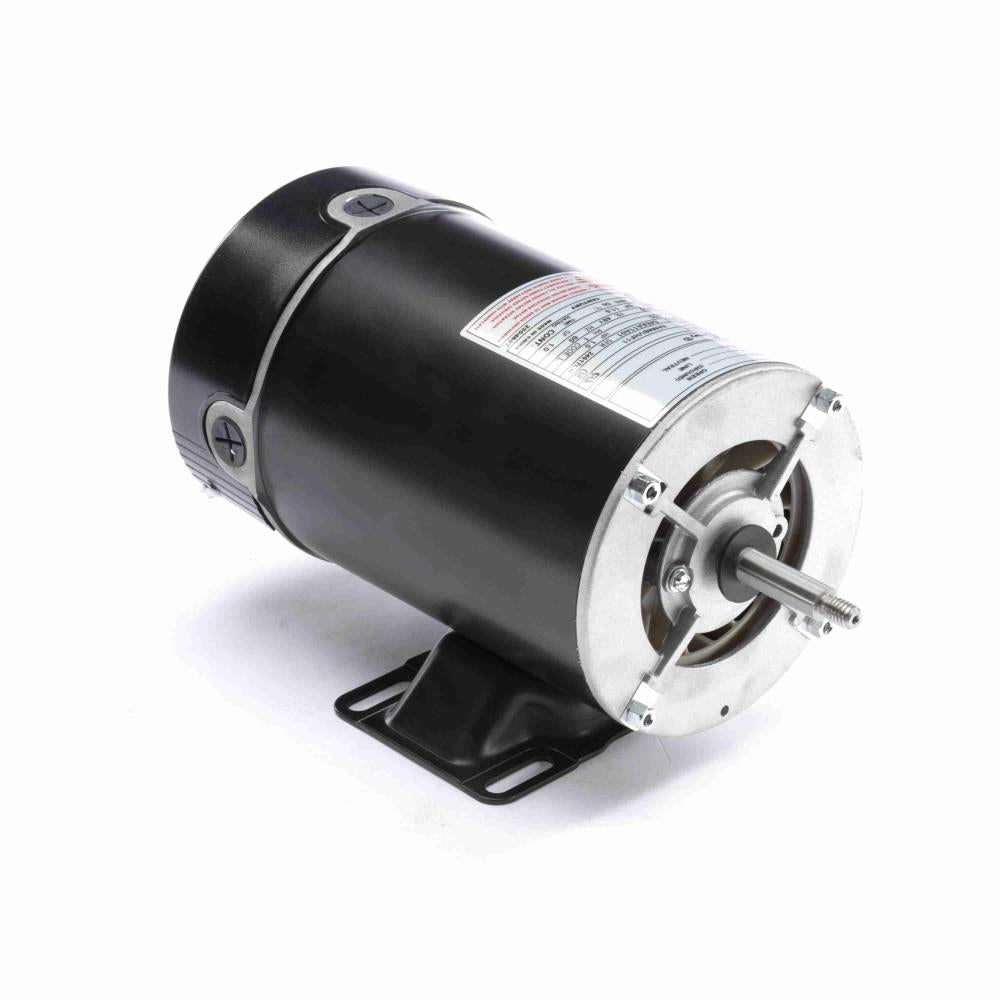

* Image is for reference only

BN25V1 Century Motor 1HP 3600RPM 56Y DP 115 Volt 1 Phase

SKU: BN25V1
$193.48
Sale $193.48
Description
Title 20 CCR section 1605.3(g)(5): We are unable to ship this product to California
  • 12 & 3 O'clock Conduit Entries
  • 3-1/2" Shaft Height
  • 40°C Ambient
  • Stainless Steel Shaft
  • Four Thru Bolts on a 5.146 Bolt Circle
  • 48/56 Base Mounting
  • Sealed Ball Bearings
  • UL 1081 Design
  • Rigid Base
  • Threaded Shaft
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 115 V
Speed: 3450 rpm Service Factor: 1
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
Frequency: 60 Hz Current: 11.8 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Split Phase, Induction Run, Single Or Dual Voltage Poles: 2
Rotation: Counterclockwise Pump End Mounting: Thru Bolt
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: 3/8 THREADS Overall Length: 11.46 in
Frame Length: 6.75 in Shaft Diameter: 0.500 in
Shaft Extension: 2.372 in

General Specifications

UPC: 786674014368 Weight: 18.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.50 IN
Packaged Height: 9.50 IN HTC: 8501.40.6040
Country of Origin: Mexico
