Home » B2858 Century Motor 1.5HP 3450RPM 56Y ODP 115/230 Volt 1 Phase
B2858 Century Motor 1.5HP 3450RPM 56Y ODP 115/230 Volt 1 Phase - Square One Electric Motors & Pumps

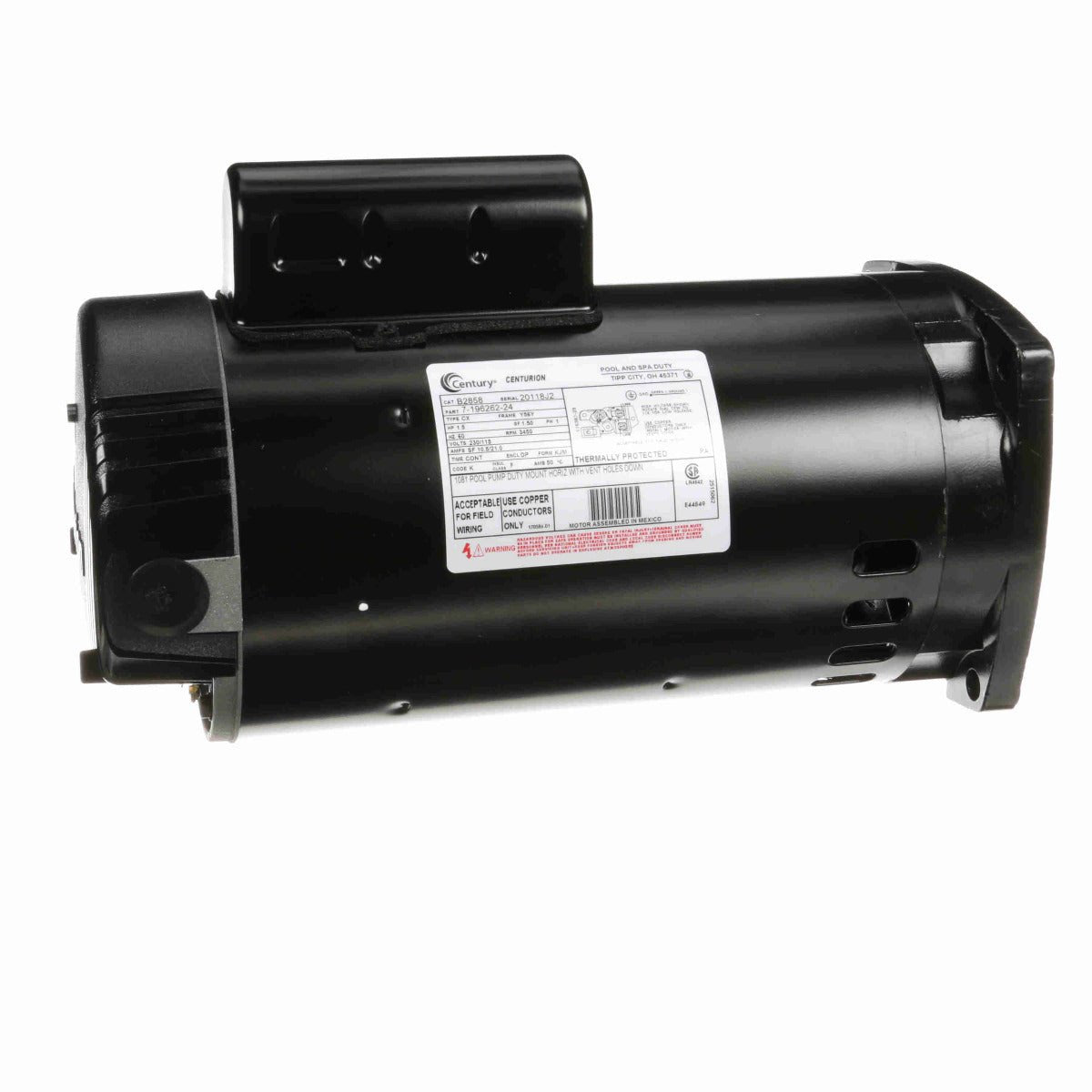

* Image is for reference only

B2858 Century Motor 1.5HP 3450RPM 56Y ODP 115/230 Volt 1 Phase

SKU: B2858
$421.47
Sale $421.47
Description

Alternate Part #'s

10-177476-20, 14728, 16-177476-28, 164654, 168345, 168454, 177081, 177476, 193987, 355025S, 355342, 5KCR48UN2493X, 7-168454-24, 7-168454-25, 7-177081-24, 7-177476-20, 7-177476-26, 7-177476-28, 75235, 8-168454-25, 8-177081-40, 8-177476-20, B2858, C1307, EB858, P714, SQD15FL1, V14728, AOSB2858, MGT-60-2858

  • Sealed Ball Bearings
  • 50°C Ambient
  • Stainless Steel Shaft
  • Switchless
  • UL 1081 Design
  • Open Dripproof
  • Threaded Shaft
  • Permanent Split Capacitor
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 230/115 V
Speed: 3450 rpm Service Factor: 1.5
Frame: Y56Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
Frequency: 60 Hz Current: SF 10.5/21.0 A
Duty: Continuous Insulation Class: F
UL: Recognized CSA: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage Poles: 2
Rotation: Counterclockwise Pump End Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: 1/2 Threaded Overall Length: 14.40 in
Frame Length: 10.00 in Shaft Diameter: 0.625 in
Shaft Extension: 0.91 in

General Specifications

UPC: 786674012302 Weight: 35.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.50 IN
Packaged Height: 11.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
