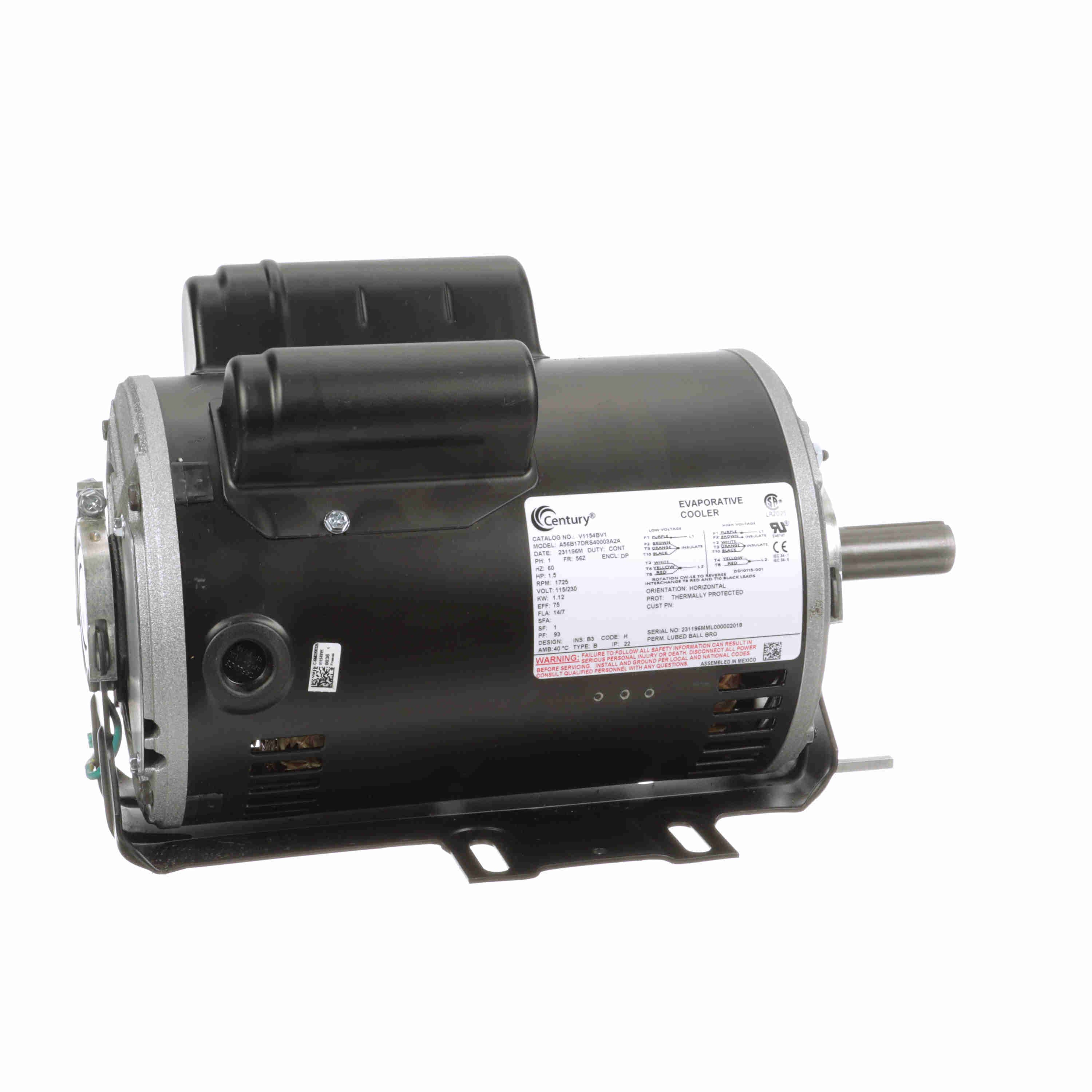

V1154BV1 Century Motor 1.5HP 1725RPM P56Z ODP 115/230 olt 1 Phase

SKU: V1154BV1

$0.00

Sale $0.00

Description
Specifications

Description

This motor replaces Century V1154B
Brass current carrying
Single and two speed
Continuous filtration of oil
Electro-zinc encapsulating varnish
Heavy magnet wire insulation

Specifications

Nameplate Specifications

Phase:	1	Output HP:	1.5 Hp
Output KW:	1.1 kW	Voltage:	115/230 V
Speed:	1725 rpm	Service Factor:	1
Frame:	56Z	Enclosure:	Drip Proof
Thermal Protection:	Thermally Protected	Efficiency:	75 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	14/7 A	Duty:	Continuous
Insulation Class:	B	UL:	Recognized
CSA:	Y	CE:	Y
Number of Speeds:	1

Technical Specifications

Electrical Type:	Capacitor Start Capacitor Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Mounting:	Resilient Base	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Single Special Extension	Overall Length:	13.32 in
Frame Length:	8.65 in	Shaft Diameter:	0.875 in
Shaft Extension:	2.25 in

General Specifications

UPC:	786674075031	Weight:	42.00 LB
Packaged Length:	15.50 IN	Packaged Width:	10.50 IN
Packaged Height:	10.00 IN	HTC:	8501.40.6040
Country of Origin:	Mexico

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Pull-Up	42.17	602.0	4.86	108.0	210	8.02	81.5	1.50
Full Load	7.00	100.0	4.50	100.0	1,745	1.48	93.0	1.50
Break-Down	24.37	348.0	11.24	250.0	1,480	4.99	90.0	1.50
Locked-Rotor	42.74	611.0	6.34	141.0	0	8.10	79.5	1.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %
Current (Amps)	2.60	3.30	4.30	5.50	7.00	7.90
Rated Output (KW)	0.24	0.51	0.82	1.14	1.48	1.69
Efficiency (%)	0.0	55.5	69.0	73.5	75.0	75.5
Power Factor (%)	40.5	69.0	83.5	90.5	93.0	94.5
Speed (RPM)	1,795	1,785	1,770	1,760	1,745	1,733
Temp. Rise @ FL	0.0	0.0	0.0	0.0	72.0	0.0
Torque (ft-lbs)	0.00	1.13	2.25	3.38	4.50	5.18

Description
Specifications

Description

This motor replaces Century V1154B
Brass current carrying
Single and two speed
Continuous filtration of oil
Electro-zinc encapsulating varnish
Heavy magnet wire insulation

Specifications

Nameplate Specifications

Phase:	1	Output HP:	1.5 Hp
Output KW:	1.1 kW	Voltage:	115/230 V
Speed:	1725 rpm	Service Factor:	1
Frame:	56Z	Enclosure:	Drip Proof
Thermal Protection:	Thermally Protected	Efficiency:	75 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	14/7 A	Duty:	Continuous
Insulation Class:	B	UL:	Recognized
CSA:	Y	CE:	Y
Number of Speeds:	1

Technical Specifications

Electrical Type:	Capacitor Start Capacitor Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Mounting:	Resilient Base	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Single Special Extension	Overall Length:	13.32 in
Frame Length:	8.65 in	Shaft Diameter:	0.875 in
Shaft Extension:	2.25 in

General Specifications

UPC:	786674075031	Weight:	42.00 LB
Packaged Length:	15.50 IN	Packaged Width:	10.50 IN
Packaged Height:	10.00 IN	HTC:	8501.40.6040
Country of Origin:	Mexico

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Pull-Up	42.17	602.0	4.86	108.0	210	8.02	81.5	1.50
Full Load	7.00	100.0	4.50	100.0	1,745	1.48	93.0	1.50
Break-Down	24.37	348.0	11.24	250.0	1,480	4.99	90.0	1.50
Locked-Rotor	42.74	611.0	6.34	141.0	0	8.10	79.5	1.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %
Current (Amps)	2.60	3.30	4.30	5.50	7.00	7.90
Rated Output (KW)	0.24	0.51	0.82	1.14	1.48	1.69
Efficiency (%)	0.0	55.5	69.0	73.5	75.0	75.5
Power Factor (%)	40.5	69.0	83.5	90.5	93.0	94.5
Speed (RPM)	1,795	1,785	1,770	1,760	1,745	1,733
Temp. Rise @ FL	0.0	0.0	0.0	0.0	72.0	0.0
Torque (ft-lbs)	0.00	1.13	2.25	3.38	4.50	5.18
