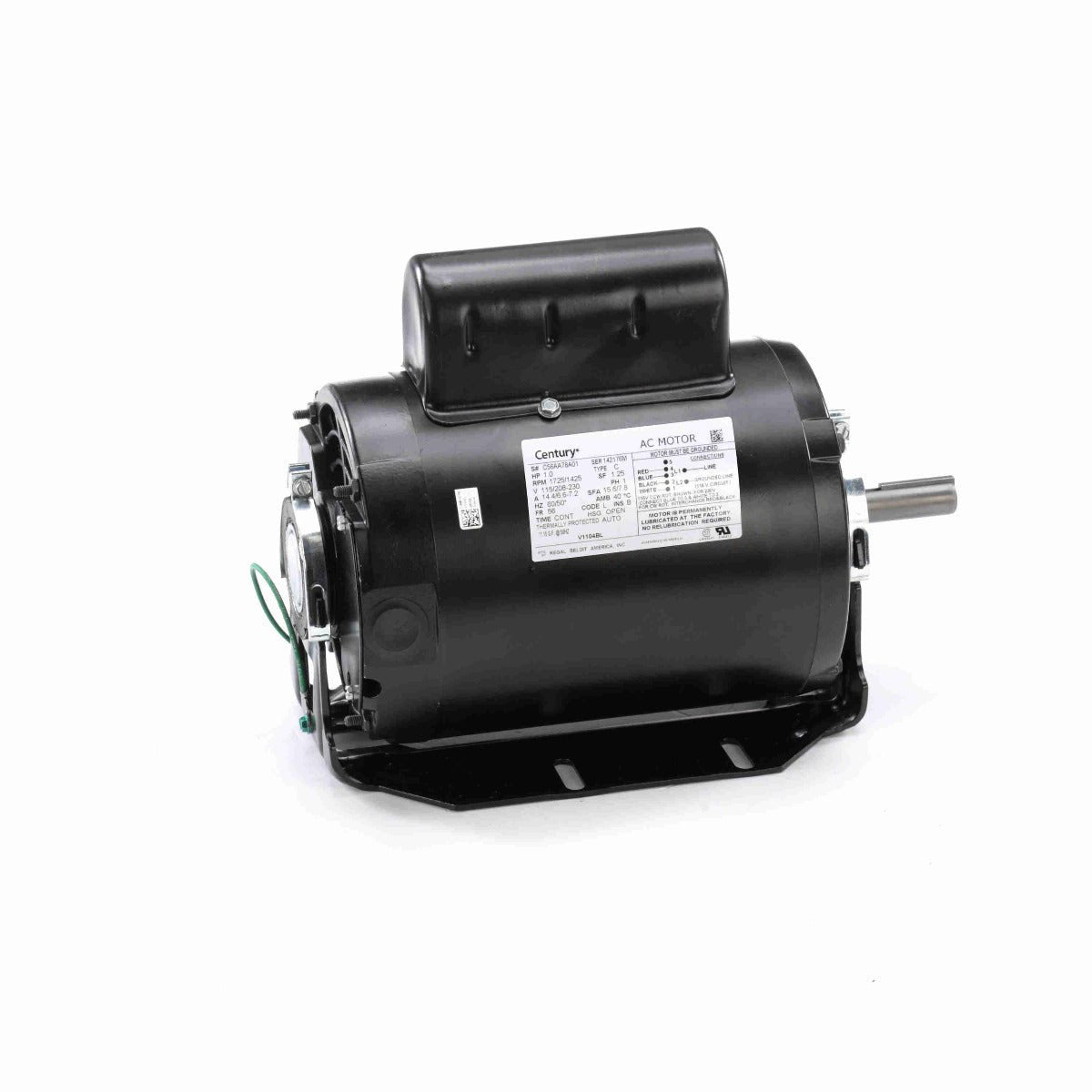

* Image is for reference only

V1104BL Century Motor 1HP 1725/1425RPM 56 OPEN 115/208-230 Volt 1 Phase

SKU: V1104BL
$345.54
Sale $345.54
Description

Century Motors V1104BL Features:

  • Brass current carrying
  • Single and two speed
  • Continuous filtration of oil
  • Electro-zinc encapsulating varnish
  • Heavy magnet wire insulation
  • Moisture resistant terminal board
  • Electro-zinc plated governor parts, dust caps and terminal board cover
  • Auto protector
Specifications

General Specifications

UPC: 786674033468 Weight: 32.00 LB
Packaged Length: 17 IN Packaged Width: 11 IN
Packaged Height: 11 IN


Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60/50 Hz Voltage: 115/208-230 V
Current: 14.4/6.6-7.2 A Speed: 1725/1425 rpm
Service Factor: 1.25 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56 Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: No CSA: Y
CE: N Number of Speeds: 1


Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.84 in
Frame Length: 6.69 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in
