Home » V102 Century Motor 2HP 1745RPM Y145T ODP 208-230/115 Volt 1 Phase
V102 Century Motor 2HP 1745RPM Y145T ODP 208 - 230/115 Volt 1 Phase - Square One Electric Motors & Pumps

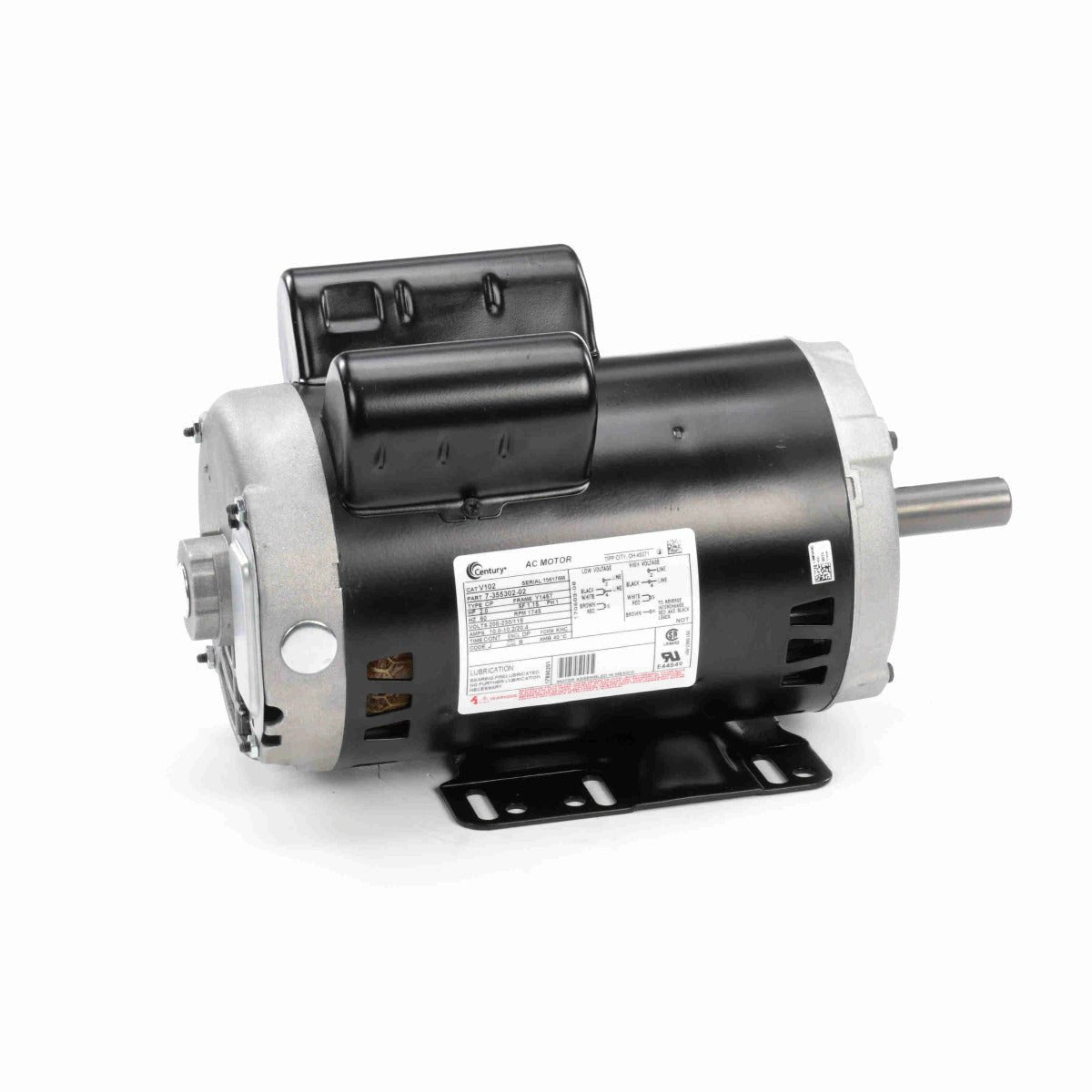

* Image is for reference only

V102 Century Motor 2HP 1745RPM Y145T ODP 208-230/115 Volt 1 Phase

SKU: V102
$577.23
Sale $577.23
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • This item replaces Leeson 120067.00
Specifications

Nameplate Specifications

Phase: 1 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 208-230/115 V
Speed: 1745 rpm Service Factor: 1.15
Frame: Y145T Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 10.0-10.2/20.4 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.31 in
Frame Length: 8.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in

General Specifications

UPC: 786674033420 Weight: 42.00 LB
Packaged Length: 17.00 IN Packaged Width: 11.00 IN
Packaged Height: 11.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
