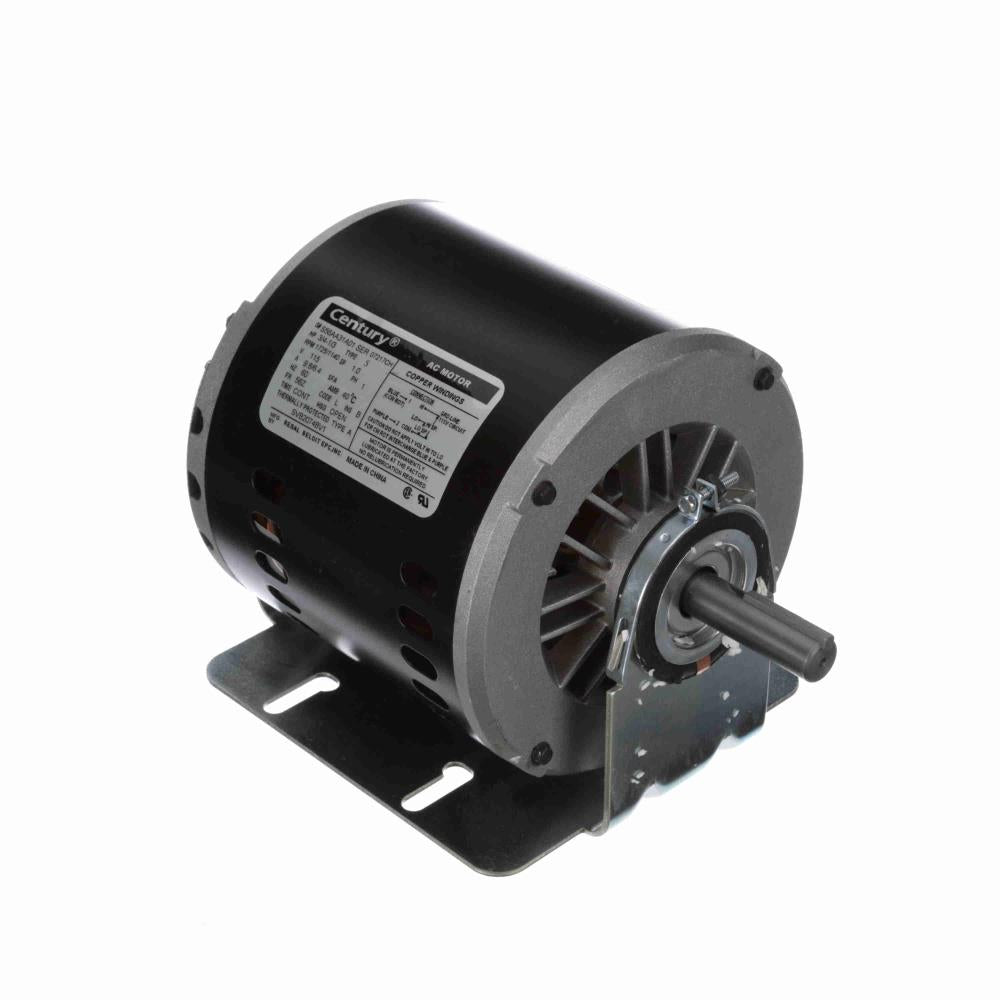

* Image is for reference only

SVB2074BV2 Century Motor 3/4-1/3HP 1725/1140RPM 56Z ODP 115 Volt 1 Phase

SKU: SVB2074BV2
Description
  • This motor replaces Century SVB2074BV1
Specifications

Nameplate Specifications

Phase: 1 Output HP: 3/4-1/3 Hp
Output KW: 0.56 kW Voltage: 115 V
Speed: 1725/1140 rpm Service Factor: 1
Frame: 56Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 9.8/6.4 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Poles: 4/6 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Frame Length: 5.20 in
Shaft Diameter: 0.625 in Shaft Extension: 1.88 in

General Specifications

UPC: 786674076366 Weight: 24.14 LB
HTC: 8501.40.4040 Country of Origin: China
