Home » SVB2054HV1 Century Motor 1/2-1/6HP 1725/1140RPM 56Z ODP 230 Volt 1 Phase
SVB2054HV1 Century Motor 1/2 - 1/6HP 1725/1140RPM 56Z ODP 230 Volt 1 Phase - Square One Electric Motors & Pumps

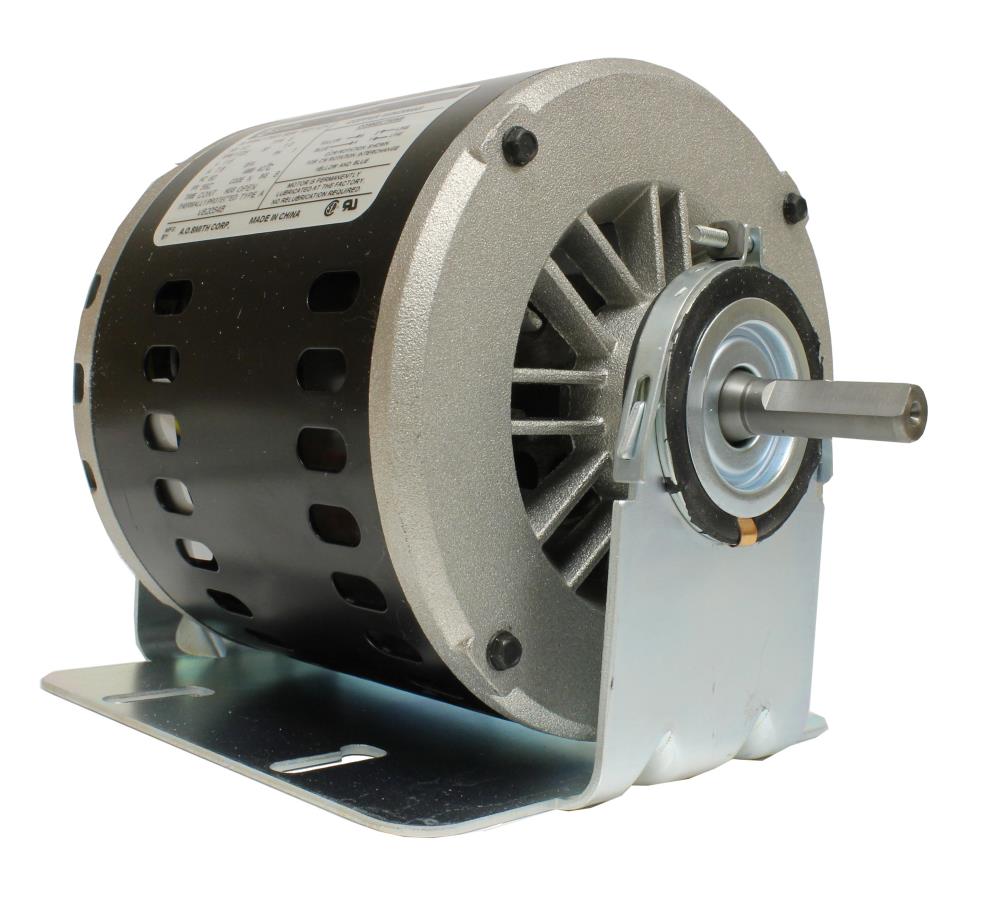

* Image is for reference only

SVB2054HV1 Century Motor 1/2-1/6HP 1725/1140RPM 56Z ODP 230 Volt 1 Phase

SKU: SVB2054HV1
$224.04
Sale $224.04
Description
  • This motor replaces Century SVB2054H
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/2-1/6 Hp
Output KW: 0.37 kW Voltage: 230 V
Speed: 1725/1140 rpm Service Factor: 1
Frame: 56Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 4.4 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Poles: 4/6 Rotation: Counterclockwise Lead End
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Frame Length: 4.57 in
Shaft Diameter: 0.500 in Shaft Extension: 1.5 in

General Specifications

UPC: 786674076342 Weight: 18.00 LB
Packaged Length: 10.59 IN Packaged Width: 6.69 IN
Packaged Height: 6.77 IN HTC: 8501.40.4040
Country of Origin: China
