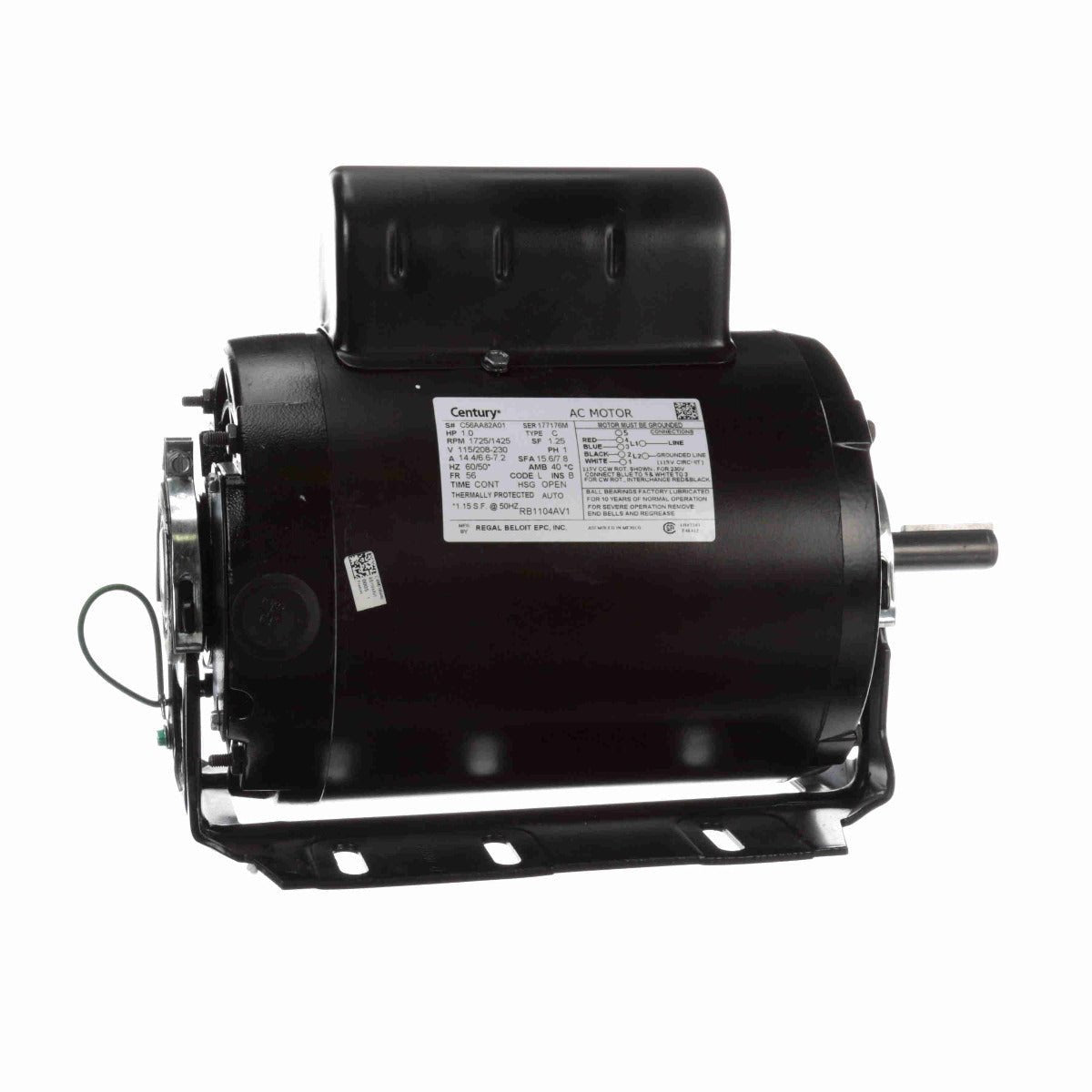

* Image is for reference only

RB1104AV1 Century Motor 1HP 1725/1425RPM 56 OPEN 115/208-230 Volt 1 Phase

SKU: RB1104AV1
$421.16
Sale $421.16
Description
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 115/208-230 V
Speed: 1725/1425 rpm Service Factor: 1.25
Frame: 56 Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60/50* Hz Current: 14.4/6.6-7.2 A
Duty: Continuous Insulation Class: B
UL: No CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.84 in
Frame Length: 6.69 in Shaft Diameter: 0.625 in
Shaft Extension: 2 in

General Specifications

UPC: 786674030399 Weight: 31.00 LB
Packaged Length: 11.00 IN Packaged Width: 7.81 IN
Packaged Height: 9.81 IN HTC: 8501.40.6040
Country of Origin: Mexico
