Home » ORM4688BF Century Condenser Motor 1/3-1/6HP 825RPM 48 ENC 460V 1 Phase
ORM4688BF Century Condenser Motor 1/3 - 1/6HP 825RPM 48 ENC 460V 1 Phase - Square One Electric Motors & Pumps

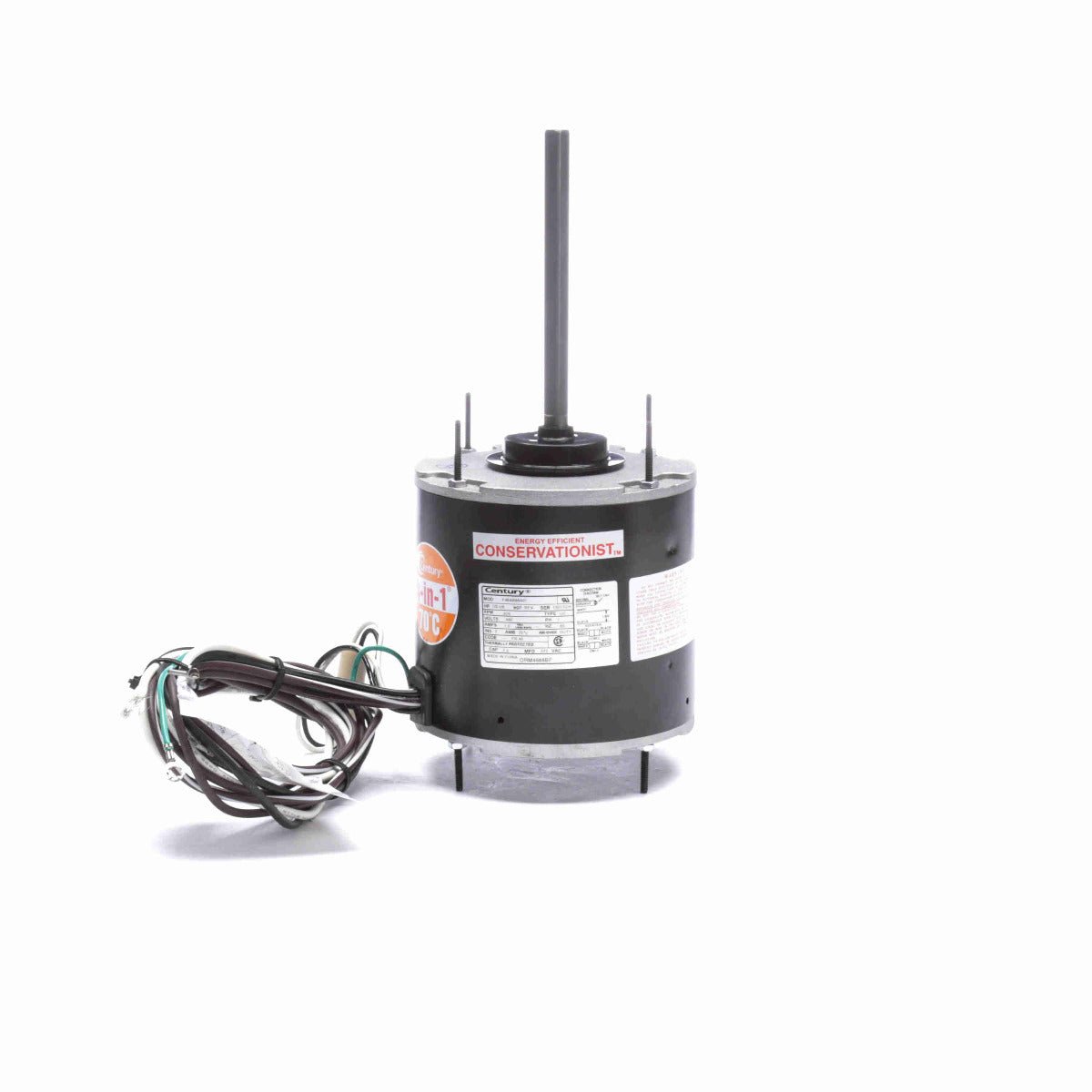

* Image is for reference only

ORM4688BF Century Condenser Motor 1/3-1/6HP 825RPM 48 ENC 460V 1 Phase

SKU: ORM4688BF
$218.73
Sale $218.73
Description
  • 4-in-1 HeatMaster - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band
