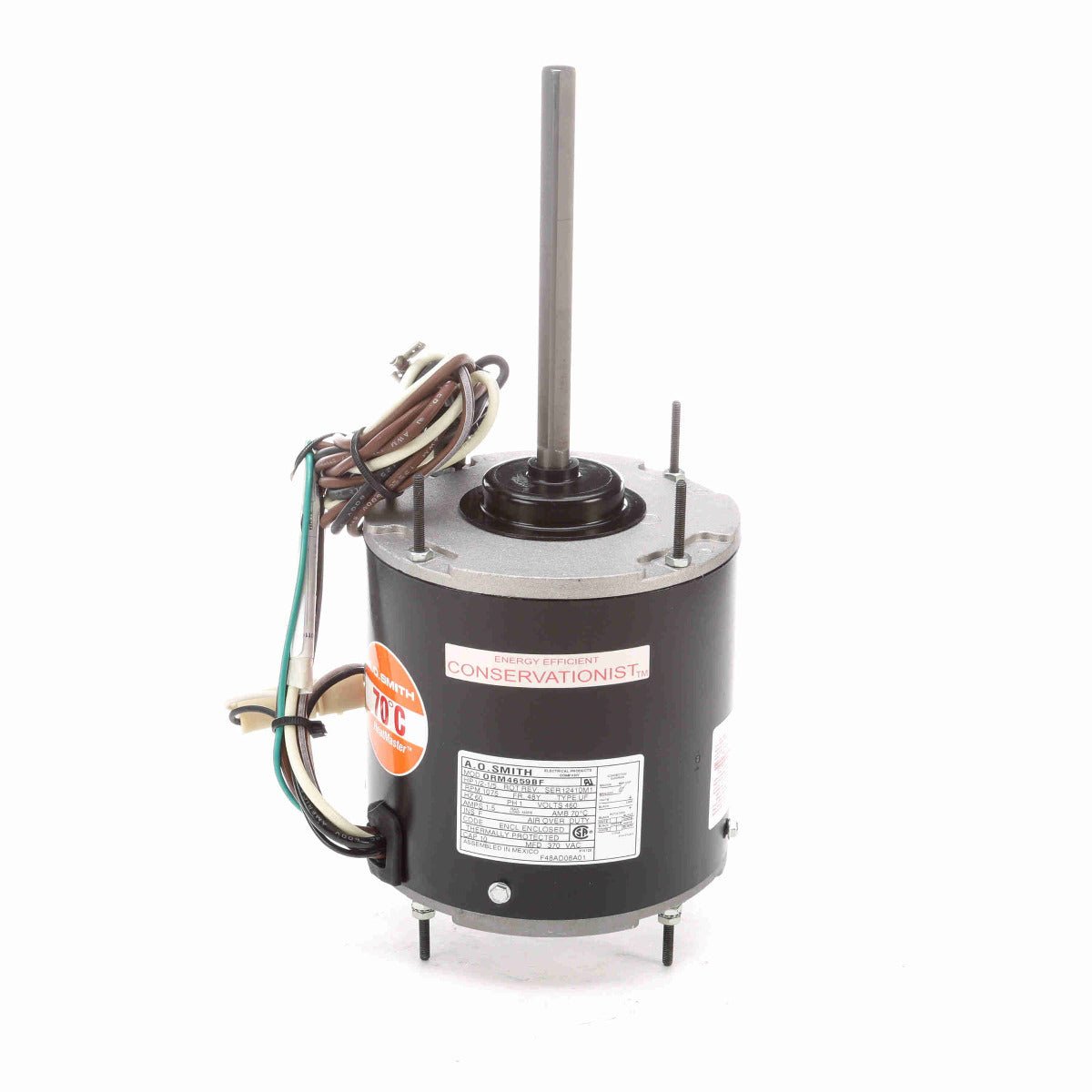

* Image is for reference only

ORM4659BF Century Motor 1/2-1/5HP 1075RPM 48 ENC 460 Volt 1 Phase

SKU: ORM4659BF
$321.92
Sale $321.92
Description
  • 4-in-1 HeatMaster - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/2-1/5 Hp
Output KW: 0.37 kW Voltage: 460 V
Speed: 1075 rpm Service Factor: 1
Frame: 48 Enclosure: Totally Enclosed
Thermal Protection: Automatic Ambient Temperature: 70 °C
Frequency: 60 Hz Current: 1.5 A
Duty: Air Over Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Any
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 12.99 in Frame Length: 5.13 in
Shaft Diameter: 0.500 in Shaft Extension: 6.5 in

General Specifications

UPC: 786674054517 Weight: 19.00 LB
Packaged Length: 12.18 IN Packaged Width: 7.31 IN
Packaged Height: 7.37 IN HTC: 8501.40.4040
Country of Origin: Mexico
