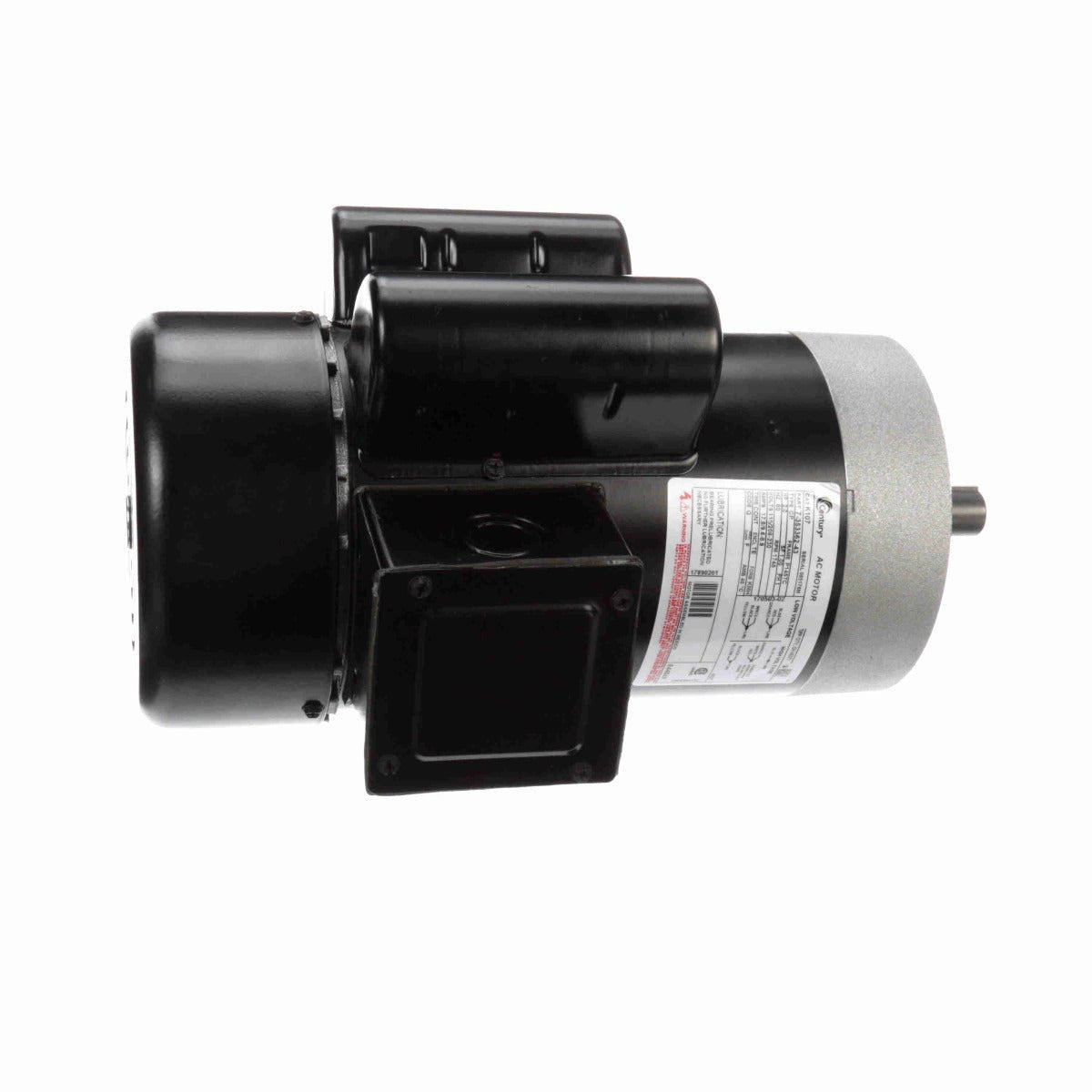

* Image is for reference only

K107 Century Motor 2HP 1745RPM P145TC TEFC 115/208-230 Volt 1 Phase

SKU: K107
$595.03
Sale $595.03
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and efficiency performance.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 115/208-230 V
Speed: 1745 rpm Service Factor: 1
Frame: P145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 17.8/9.6-8.9 A
Duty: Continuous Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 15.17 in
Frame Length: 8.00 in Shaft Diameter: 0.875 in
Shaft Extension: 2.13 in

General Specifications

UPC: 786674025586 Weight: 46.00 LB
Packaged Length: 19.00 IN Packaged Width: 12.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
