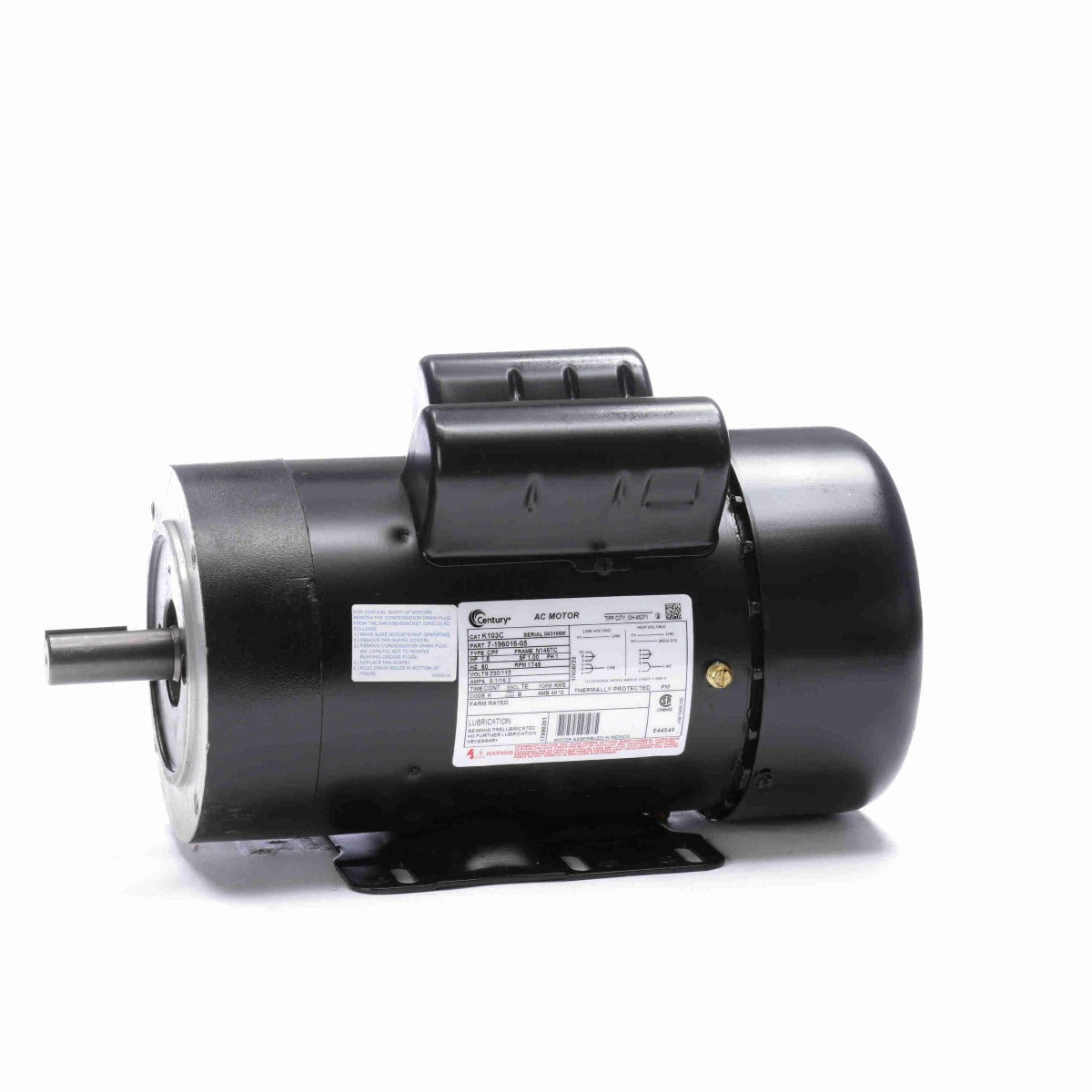

* Image is for reference only

K103C Century Motor 1.5HP 1745RPM N143TC TEFC 230/115 Volt 1 Phase

SKU: K103C
$0.00
Sale $0.00
Description
  • Double-shielded bearings extend the service life of the motor.
  • EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
  • Shaft flingers protect bearings from damage caused by dirt and rain.
  • Condensation drains allow the motor to expel and drain built-up moisture.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 230/115 V
Speed: 1745 rpm Service Factor: 1
Frame: N145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 8.1/16.2 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.42 in
Frame Length: 7.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.26 in

General Specifications

UPC: 786674025548 Weight: 42.00 LB
Packaged Length: 19.00 IN Packaged Width: 12.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
