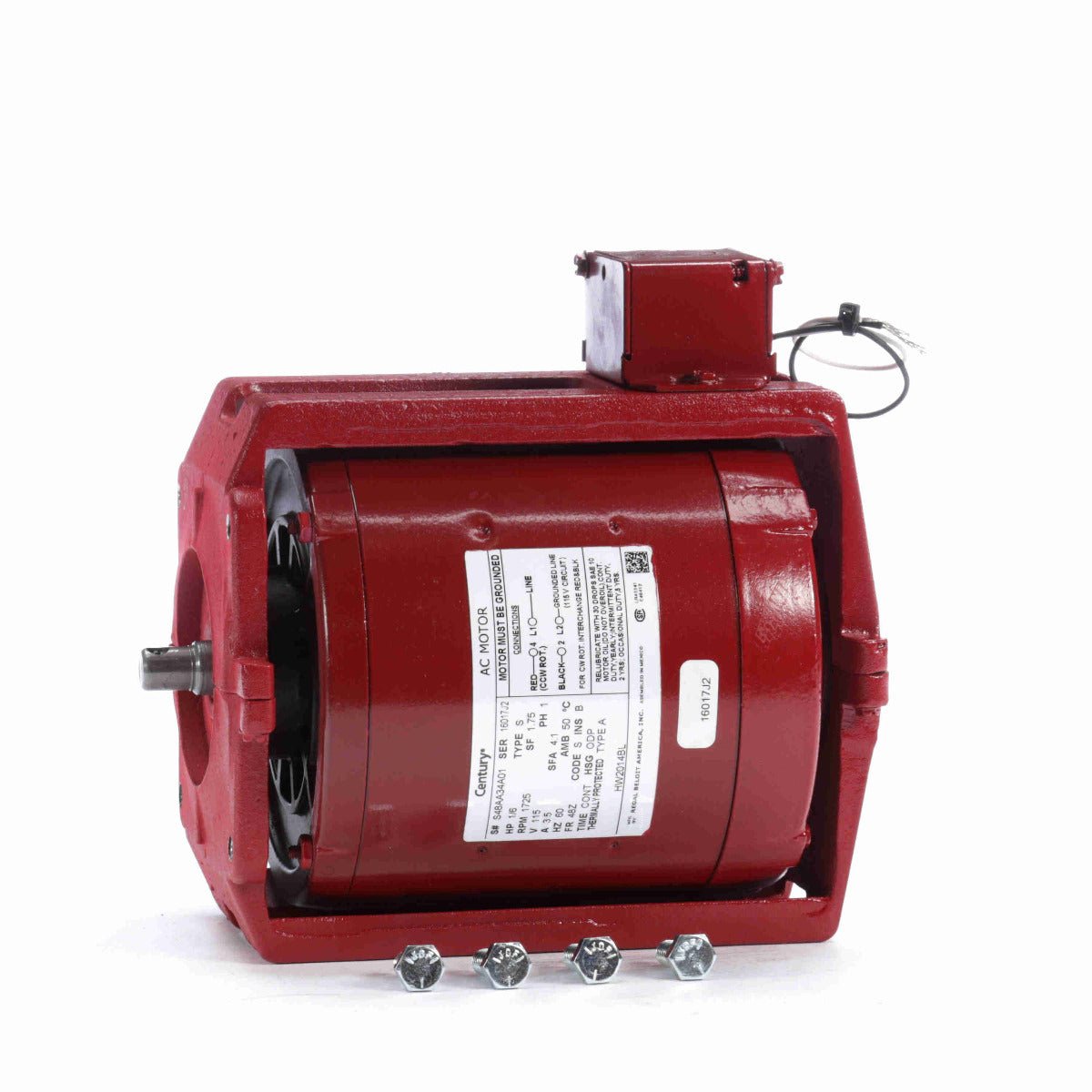

* Image is for reference only

HW2014BL Century Motor 1/6HP 1725RPM 48Z ODP 115 Volt 1 Phase

SKU: HW2014BL
$220.47
Sale $220.47
Description

Century Motors HW2014BL Features:

  • Automatic reset thermal protector
Specifications

General Specifications

UPC: 786674025296 Weight: 15.00 LB
Packaged Length: 11 IN Packaged Width: 8 IN
Packaged Height: 9 IN


Nameplate Specifications

Output HP: 1/6 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.5 A Speed: 1725 rpm
Service Factor: 1.75 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1


Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Spot Drill Overall Length: 8.29 in
Frame Length: 4.34 in Shaft Diameter: 0.500 in
Shaft Extension: 0.83 in
