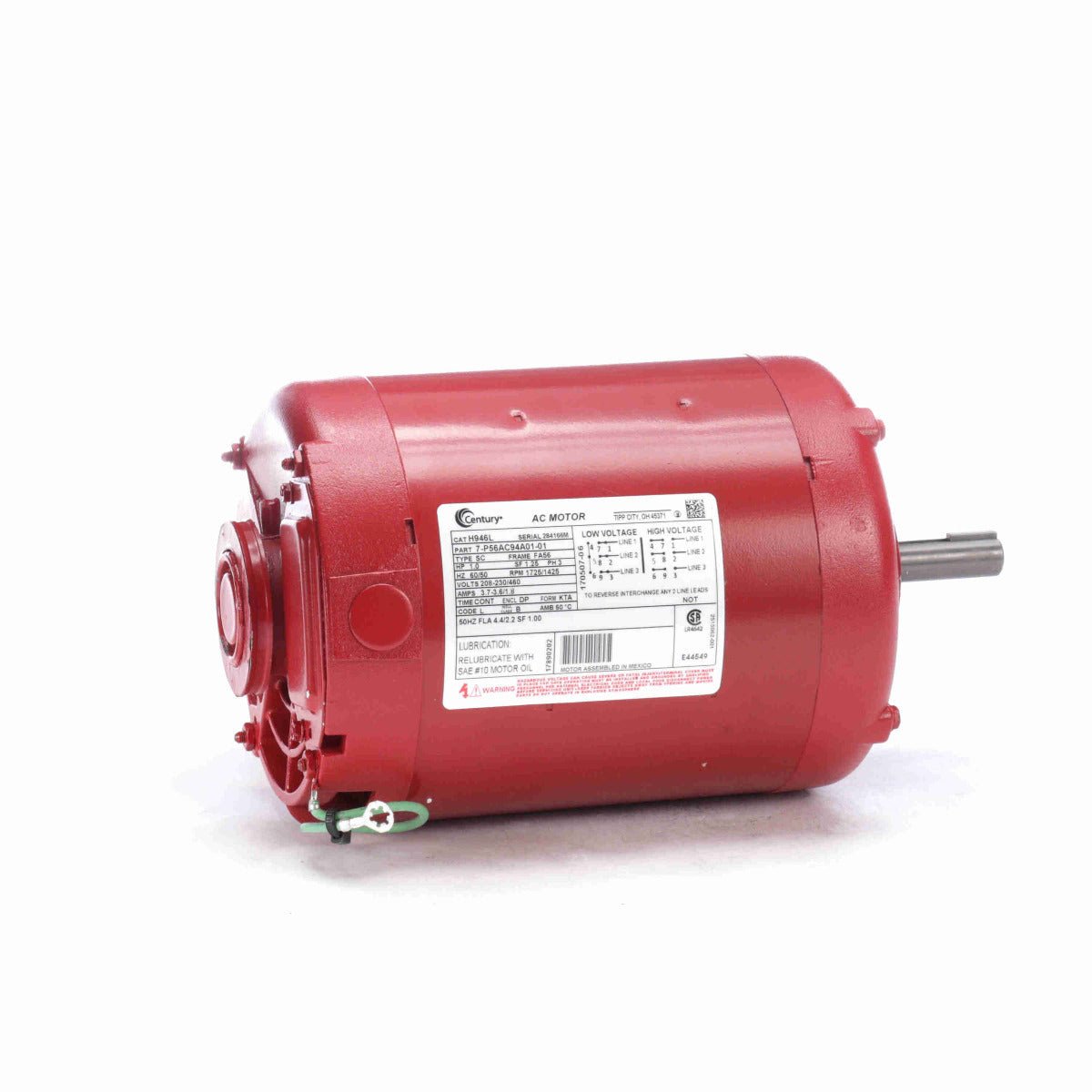

* Image is for reference only

H946L Century Motor 1HP 1725/1425RPM FA56 ODP 208-230/460 Volt 3 Phase

SKU: H946L
$104.97
Sale $104.97
Description

Century Motors H946L Features:

  • Reversible
  • Cushion ring, no base and C-face
  • No protector



PRODUCT SPECIFICATIONS

General Specifications

UPC: 786674057181 Weight: 25.00 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN



Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60/50 Hz Voltage: 208-230/460 V
Current: 3.7-3.6/1.8 A Speed: 1725/1425 rpm
Service Factor: 1.25 Phase: 3
Duty: Continuous Insulation Class: B
Frame: FA56 Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1



Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Ring Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.69 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in
