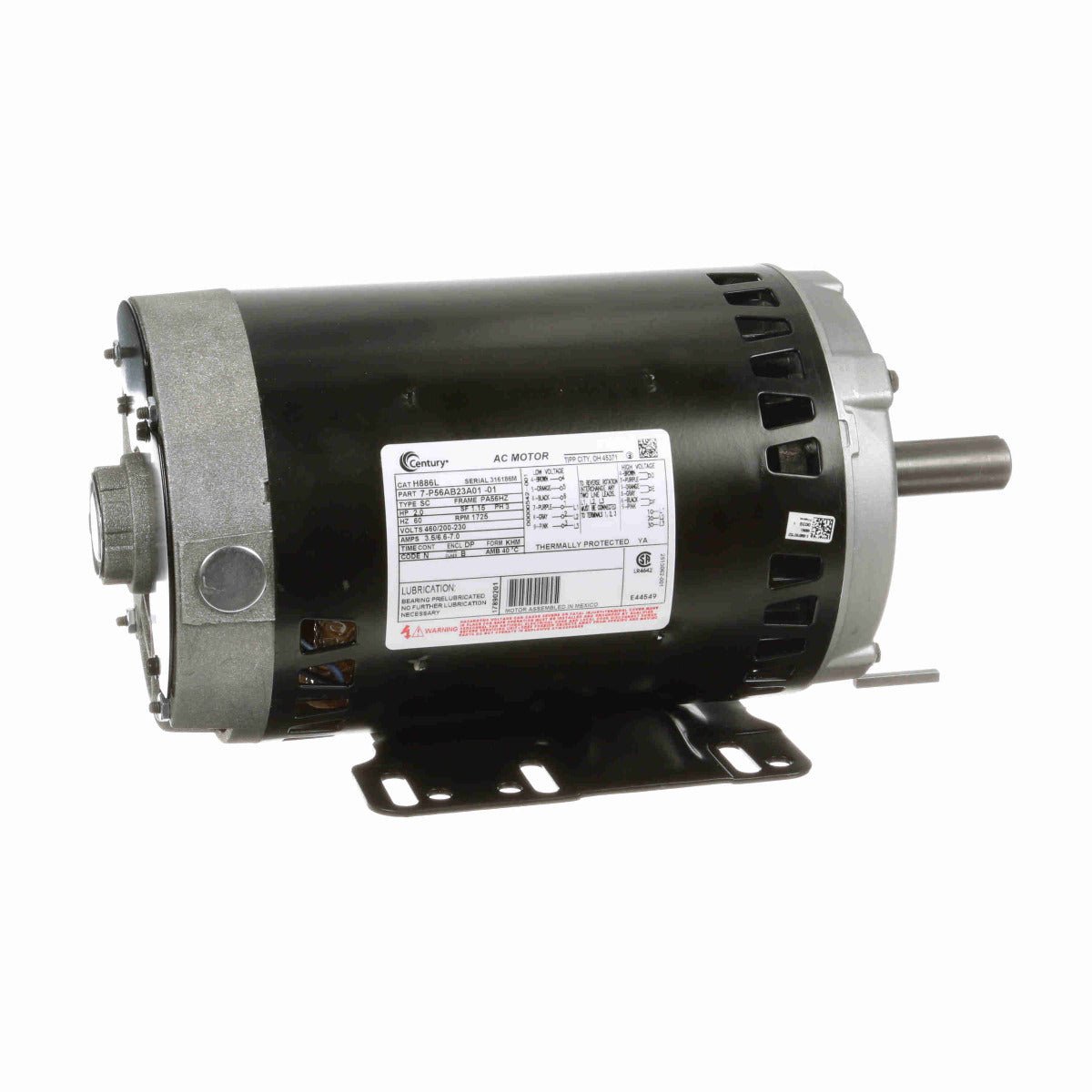

* Image is for reference only

H886LES Century Motor 2HP 1725RPM PA56HZ ODP 460/200-230 Volt 3 Phase

SKU: H886LES
$539.26
Sale $539.26
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Replaces Century H886L
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2 Hp
Output KW: 1.5 kW Voltage: 230/460 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56HZ Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 6/3 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 14.85 in
Frame Length: 10.15 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in

General Specifications

UPC: 786674074201 Weight: 44.09 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
