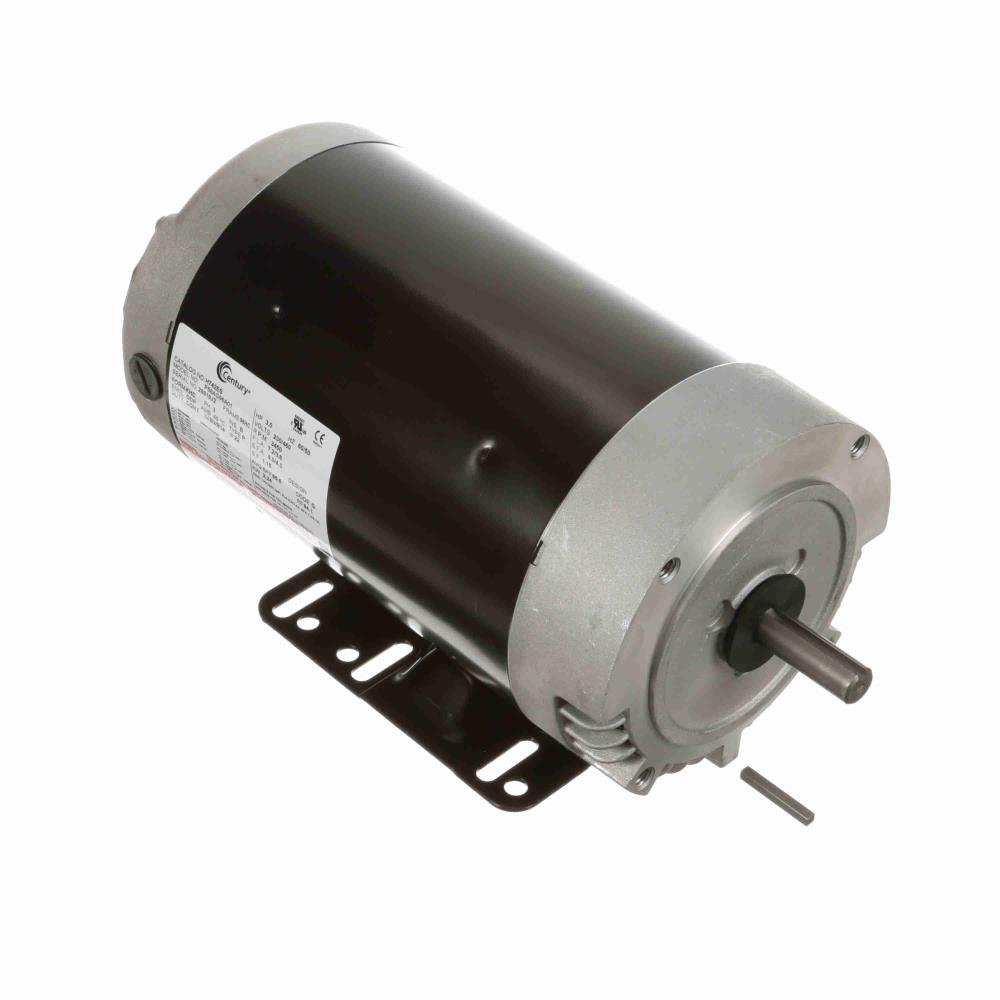

* Image is for reference only

H742ES Century Motor 3HP 3450RPM J56C ODP 200-230/460 Volt 3 Phase

SKU: H742ES
$624.46
Sale $624.46
Description
  • This motor replaces Century H742
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 3.0 Hp
Output KW: 2.2 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.15
Frame: 56HC Enclosure: Open Drip Proof
Thermal Protection: No Protection Efficiency: 85.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 7.2/3.6 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: N CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.03 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674071224 Weight: 21.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
