H733 Century Motor 2HP 3450/2850RPM N56J ODP 200 - 230/460 Volt 3 Phase - Square One Electric Motors & Pumps

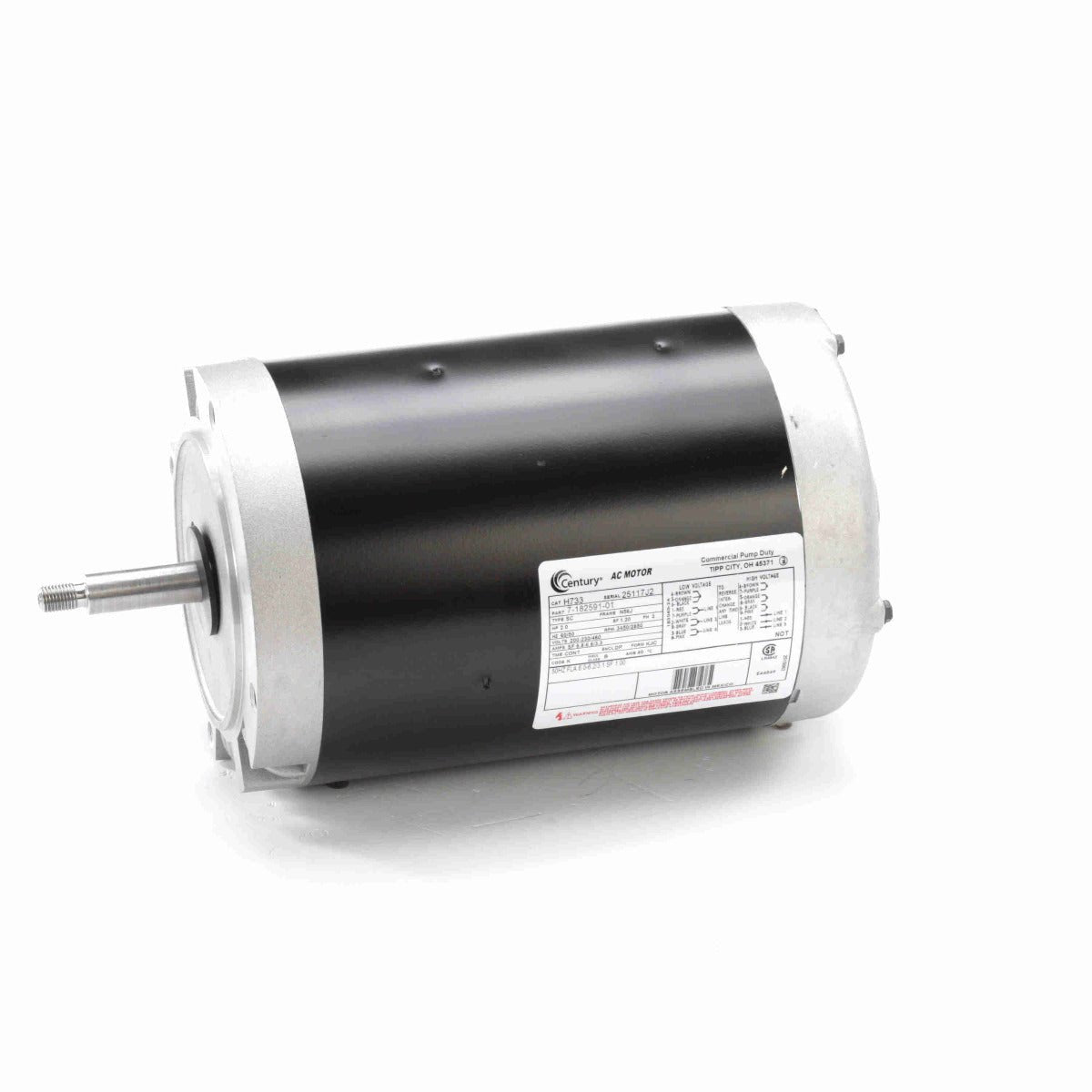

* Image is for reference only

H733 Century Motor 2HP 3450/2850RPM N56J ODP 200-230/460 Volt 3 Phase

SKU: H733
$591.58
Sale $591.58
Description
  • This item replaces Marathon K225
  • Mechanically locked bearing on shaft end
  • Double sealed ball bearings
  • 303 stainless steel threaded shaft
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.4 Hp
Output KW: 1.5 kW Voltage: 200-230/460 V
Speed: 3450/2850 rpm Service Factor: 1.00
Frame: N56J Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60/50 Hz Current: SF 6.8-6.6/3.3 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Clockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 12.85 in
Frame Length: 7.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.60 in

General Specifications

UPC: 786674024244 Weight: 34.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.00 IN
Packaged Height: 8.00 IN HTC: 8501.52.4000
Country of Origin: China
