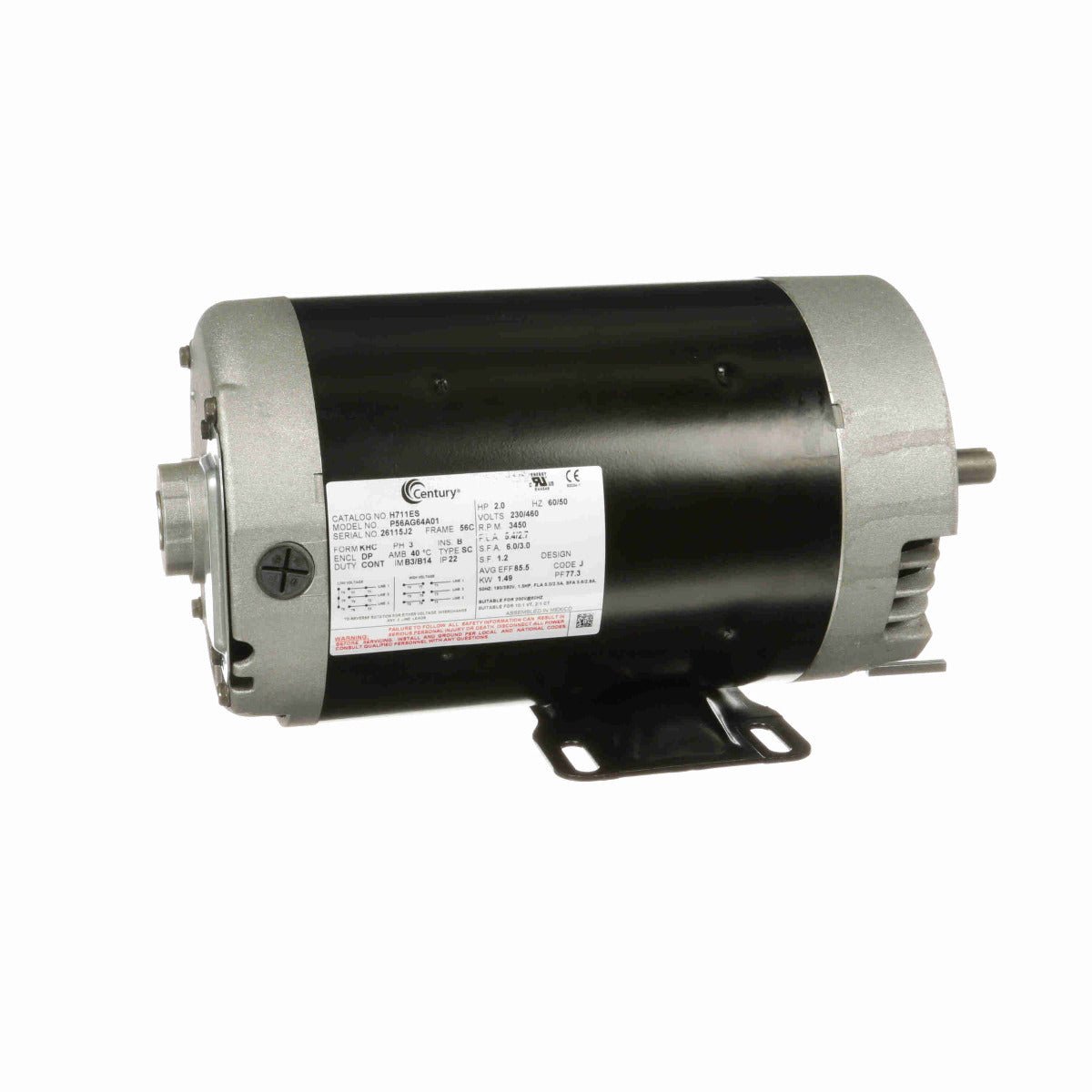

* Image is for reference only

H711ES Century Motor 2HP 3450/2850RPM K56C ODP 200-230/460 Volt 3 Phase

SKU: H711ES
$91.25
Sale $91.25
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.2
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60/50 Hz Current: 5.4/2.7 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Lead End
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.45 in
Frame Length: 7.63 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674071200 Weight: 21.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.00 IN
Packaged Height: 8.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
