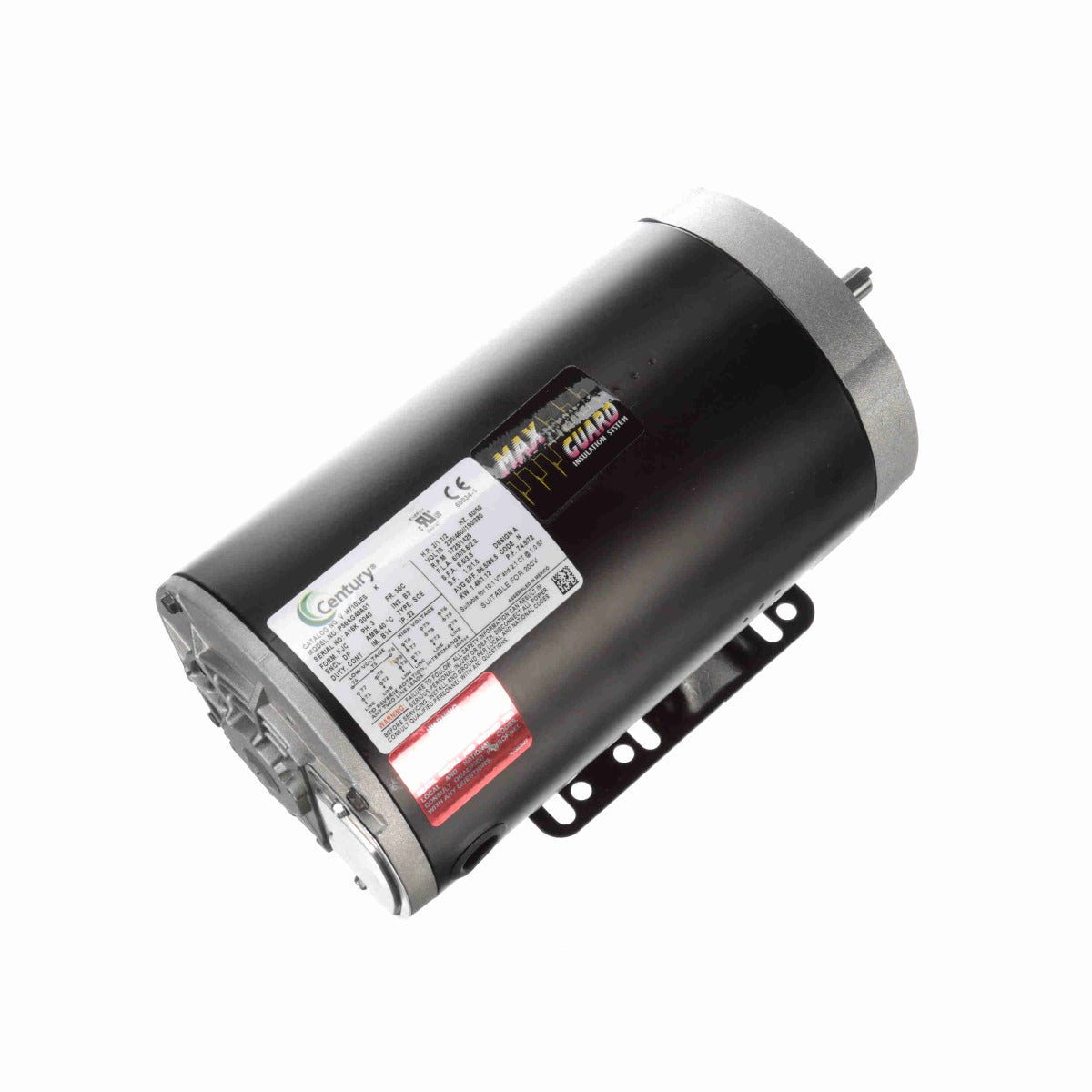

* Image is for reference only

H710LES Century Motor 2HP 1725RPM LA56C ODP 200-230/460 Volt 3 Phase

SKU: H710LES
$596.97
Sale $596.97
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 230/460 V
Speed: 1725 rpm Service Factor: 1.2
Frame: 56C Enclosure: Drip Proof
Thermal Protection: No Protection Efficiency: 86.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 6.0/3.0 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: N CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.44 in
Frame Length: 9.66 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in

General Specifications

UPC: 786674072207 Weight: 46.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 27.00 931.0 20.50 342.0 600 0.00 0.0 2.00
2/3 22.70 783.0 25.30 422.0 1,200 0.00 0.0 2.00
Locked-Rotor 28.40 979.0 24.10 402.0 0 16.10 71.5 2.00
Pull-Up 25.50 879.0 22.00 367.0 125 0.00 0.0 2.00
Full Load 3.00 100.0 6.00 100.0 1,750 0.00 0.0 2.00
No Load 1.75 60.0 0.00 0.0 1,800 0.11 7.9 2.00
Break-Down 17.60 607.0 30.70 512.0 1,220 0.00 90.0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 120 % 125 % 150 %
Current (Amps) 1.75 1.85 2.10 2.50 3.00 3.20 3.30 3.40 4.00
Rated Output (KW) 0.11 0.50 0.90 1.30 1.72 2.00 2.10 2.16 2.62
Efficiency (%) 0.0 76.2 82.8 85.8 86.5 86.8 86.9 87.0 86.0
Power Factor (%) 7.9 33.9 53.8 65.3 74.5 78.4 79.1 79.7 82.2
Speed (RPM) 1,800 1,789 1,778 1,765 1,750 1,745 1,743 1,740 1,725
Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 50.0 0.0 60.0 0.0
Torque (ft-lbs) 0.00 1.50 2.95 4.45 6.00 7.00 7.30 7.60 9.20
