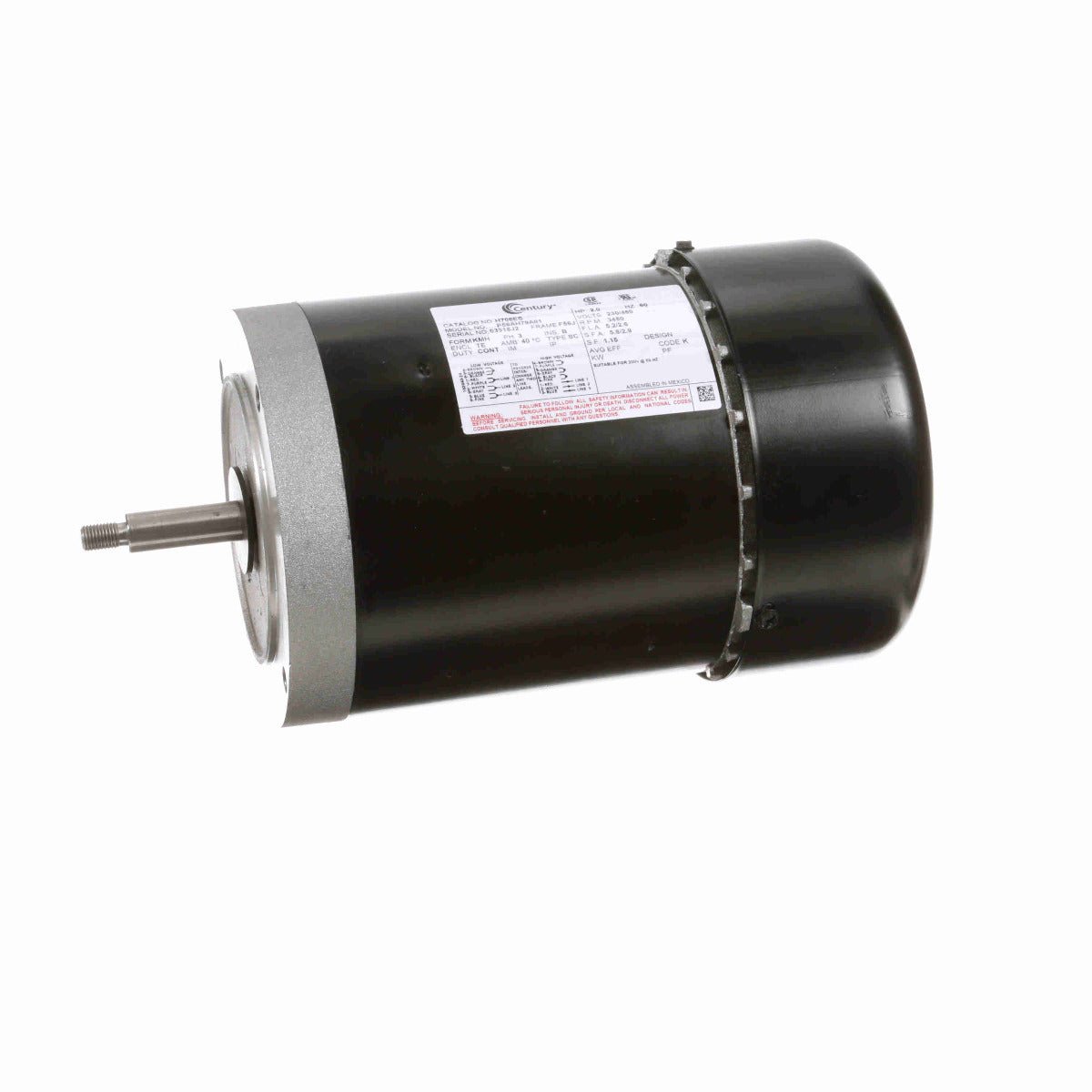

* Image is for reference only

H706ES Century Motor 2HP 3450RPM G56J TEFC 200-230/460 Volt 3 Phase

SKU: H706ES
$644.98
Sale $644.98
Description
  • This item replaces Marathon K238 / K238A
  • Mechanically locked bearing on shaft end
  • Double sealed ball bearings
  • 303 stainless steel threaded shaft
  • This item replaces Leeson 119455.00
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.15
Frame: F56J Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.2/2.6 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Clockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 12.52 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 2.60 in

General Specifications

UPC: 786674072856 Weight: 30.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
