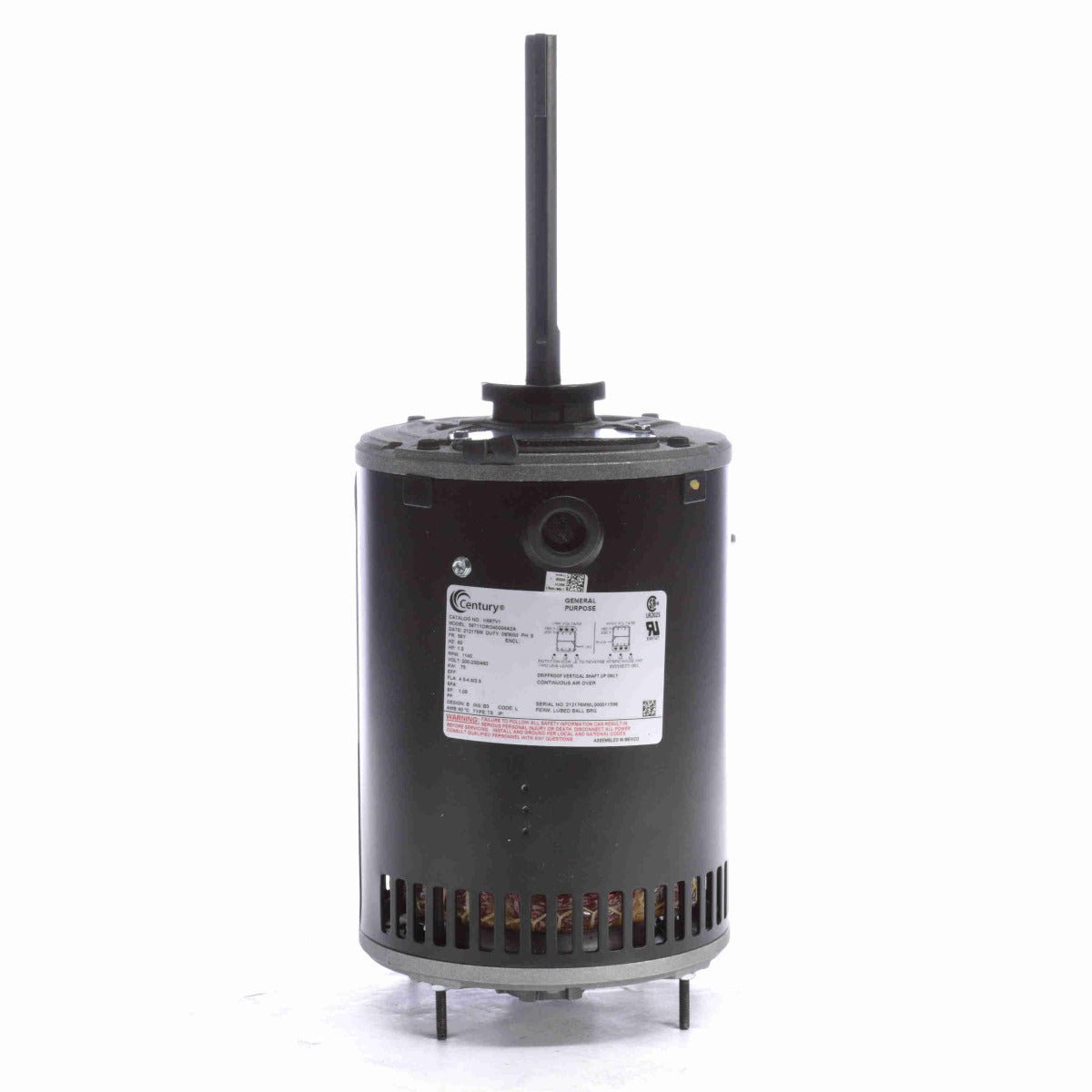

* Image is for reference only

H667V1 Century Motor 1HP 1140RPM M56Y OAO 460/200-230 Volt 3 Phase

SKU: H667V1
$404.85
Sale $404.85
Description
  • Automatic reset thermal protector prevents overheating.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 200-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 230/460 V
Speed: 1140 rpm Service Factor: 1.00
Frame: 56Y Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 72 %
Ambient Temperature: 60 °C Frequency: 60 Hz
Current: 4.6/2.3 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 16.52 in
Frame Length: 8.15 in Shaft Diameter: 0.625 in
Shaft Extension: 6.06 in

General Specifications

UPC: 786674074126 Weight: 31.00 LB
Packaged Length: 19.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.00 IN HTC: 8501.51.6040
Country of Origin: Mexico
