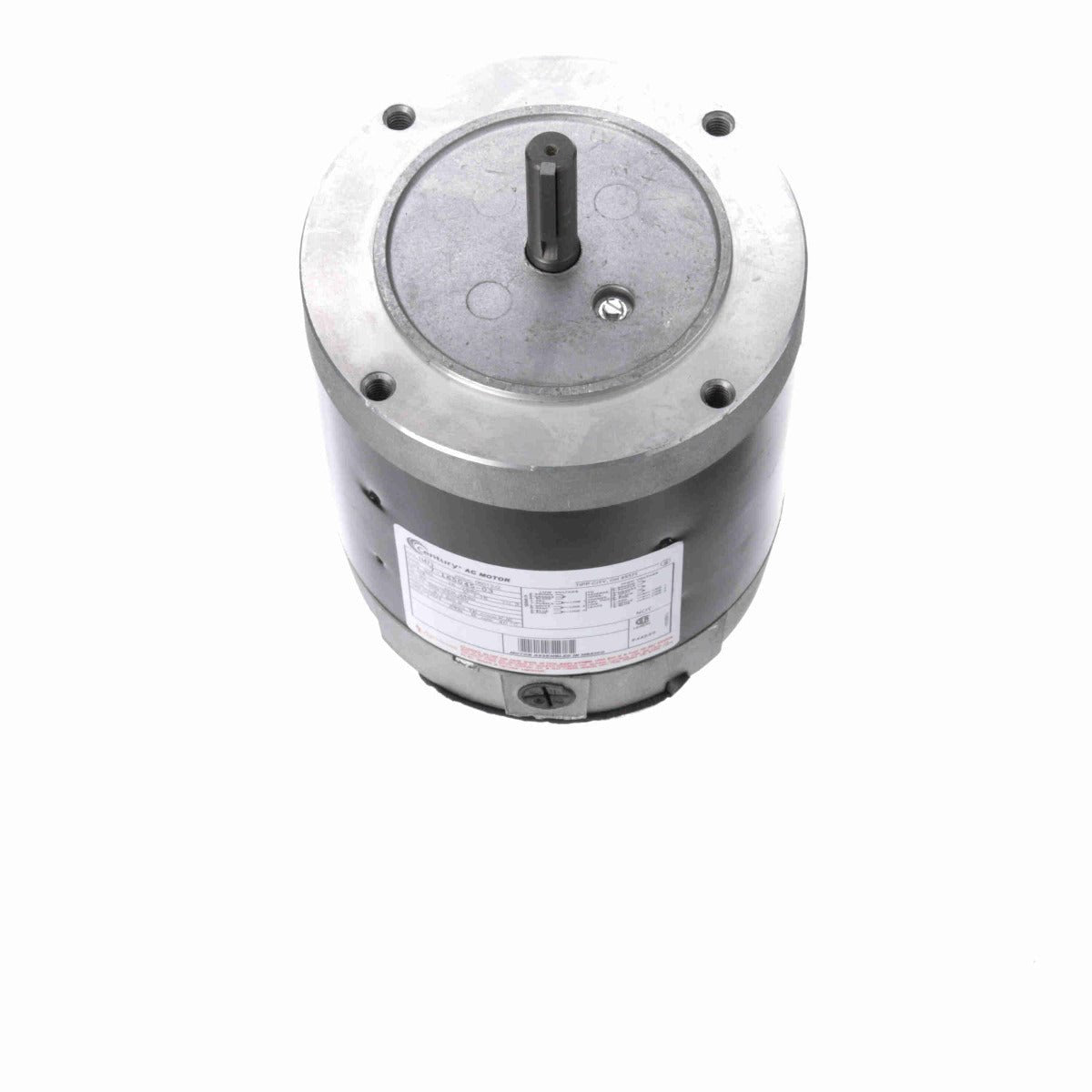

* Image is for reference only

H563 Century Motor 3/4HP 3450RPM K56C TENV 200-230/460 Volt 3 Phase

SKU: H563
$0.00
Sale $0.00
Description



  • Keyed shaft
Specifications

Nameplate Specifications

Phase: 3 Output HP: 3/4 Hp
Output KW: 0.56 kW Voltage: 200-230/460 V
Speed: 3450 rpm Service Factor: 1.15
Frame: K56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.5-2.4/1.2 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 10.54 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674023681 Weight: 27.00 LB
Packaged Length: 11.00 IN Packaged Width: 8.00 IN
Packaged Height: 9.00 IN HTC: 8501.51.4040
Country of Origin: Mexico
