H506 Century General Purpose Motor

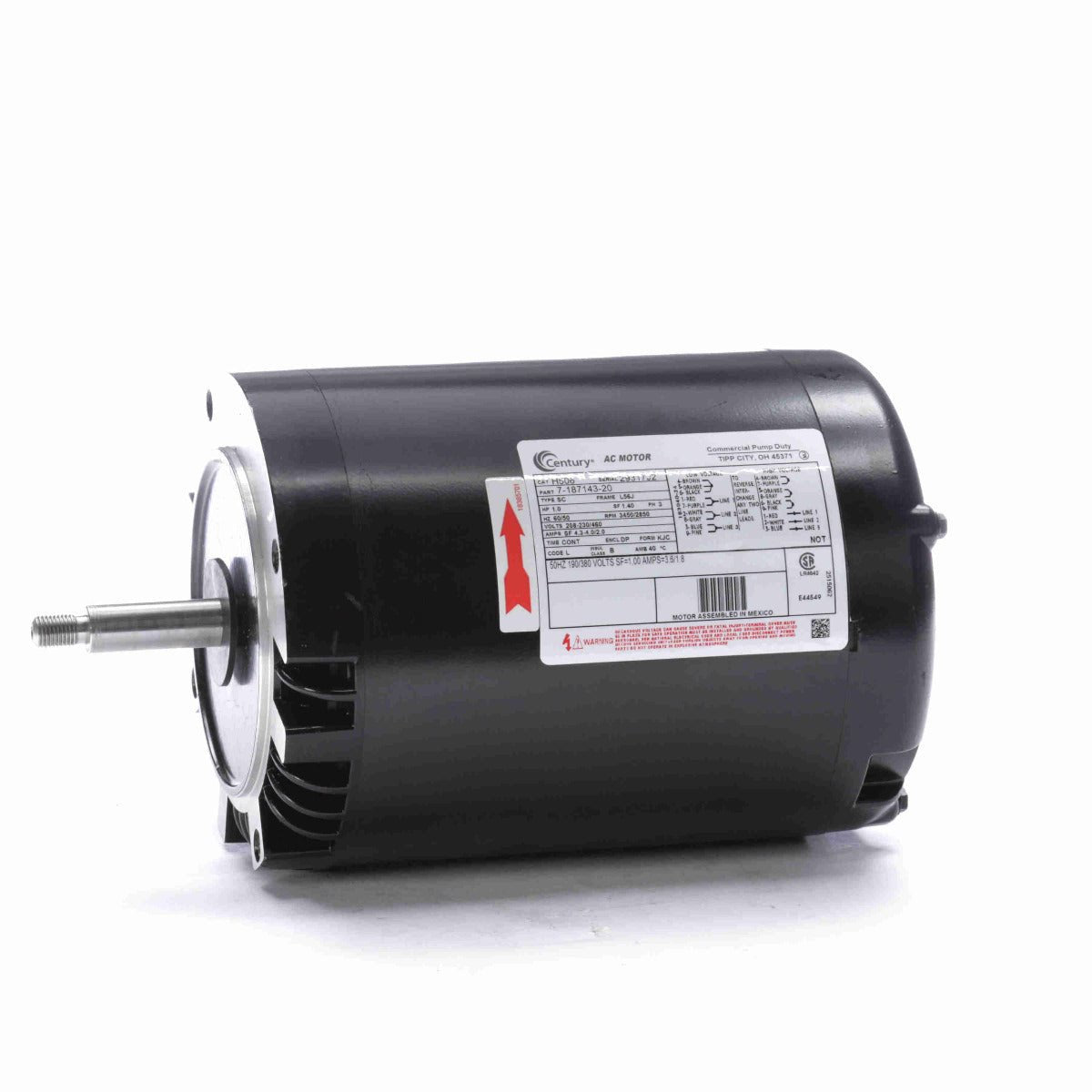

* Image is for reference only

H506 Century General Purpose Motor | 1HP 3450RPM L56J ODP 208-230/460V 3 Phase

SKU: H506
$385.74
Sale $385.74
Description
  • Mechanically locked bearing on shaft end
  • Double sealed ball bearings
  • 303 stainless steel threaded shaft
  • This item replaces Marathon K221
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 208-230/460 V
Speed: 3450/2850 rpm Service Factor: 1.4
Frame: L56J Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: SF 4.3-4.0/2.0 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Clockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.85 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.60 in

General Specifications

UPC: 786674023476 Weight: 24.00 LB
Packaged Length: 14.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.50 IN HTC: 8501.52.4000
Country of Origin: China
