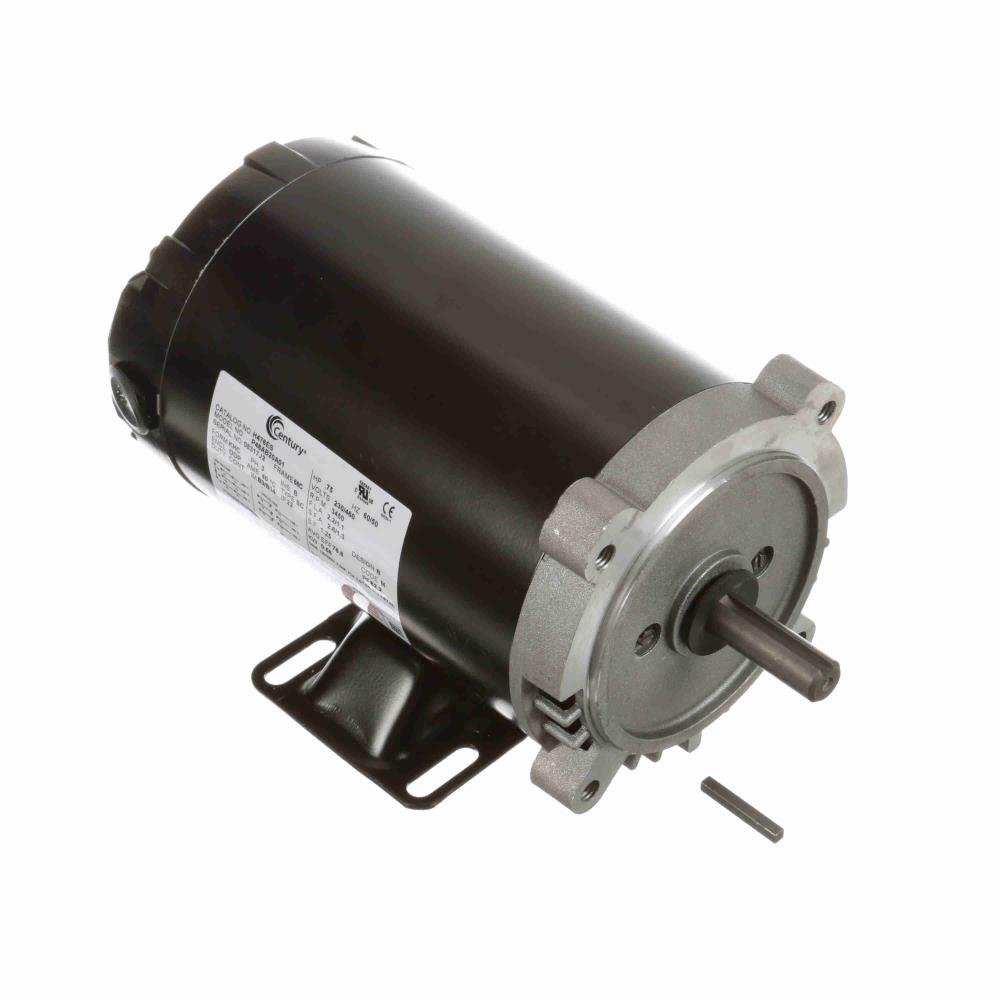

* Image is for reference only

H476ES Century Motor 3/4HP 3450/2850RPM J56C ODP 200-230/460 Volt 3 Phase

SKU: H476ES
$78.77
Sale $78.77
Description
  • This motor replaces Century H476
  • NEMA C-Face
  • Double sealed ball bearings
Specifications

Nameplate Specifications

Phase: 3 Output HP: .75 Hp
Output KW: 0.56 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.25
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60/50 Hz Current: 2.2/1.1 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: N
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Clockwise/Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.46 in
Frame Length: 8.01 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674071071 Weight: 21.00 LB
Packaged Length: 14.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.50 IN HTC: 8501.51.4040
Country of Origin: Mexico
