Home » H464 Century Motor 1HP 3450RPM J56 ODP 200-230/460 Volt 3 Phase
H464 Century Motor 1HP 3450RPM J56 ODP 200 - 230/460 Volt 3 Phase - Square One Electric Motors & Pumps

* Image is for reference only

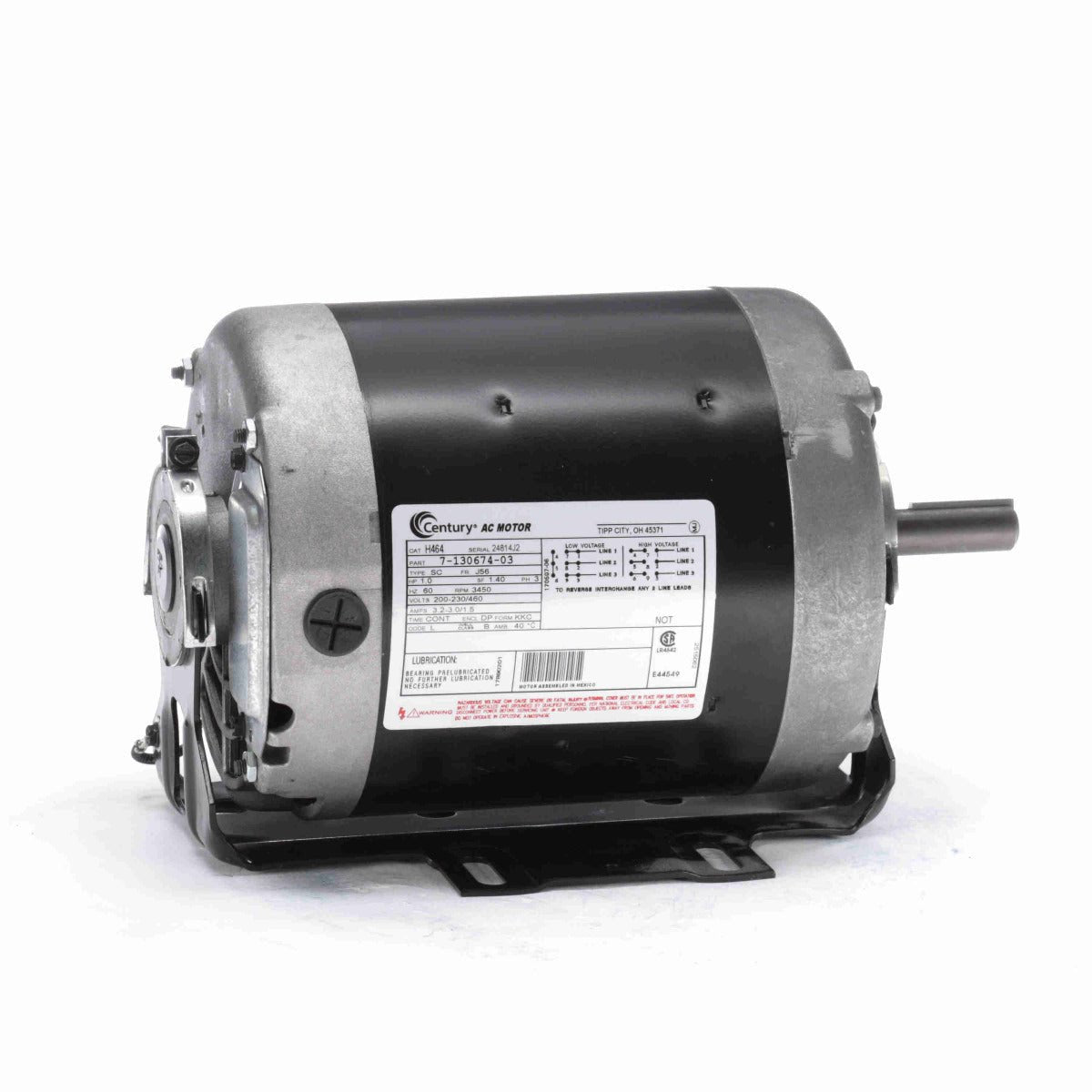

H464 Century Motor 1HP 3450RPM J56 ODP 200-230/460 Volt 3 Phase

SKU: H464
$83.98
Sale $83.98
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 200-230/460 V
Speed: 3450 rpm Service Factor: 1.4
Frame: J56 Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 3.2-3.0/1.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.13 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.974 in

General Specifications

UPC: 786674023384 Weight: 24.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
