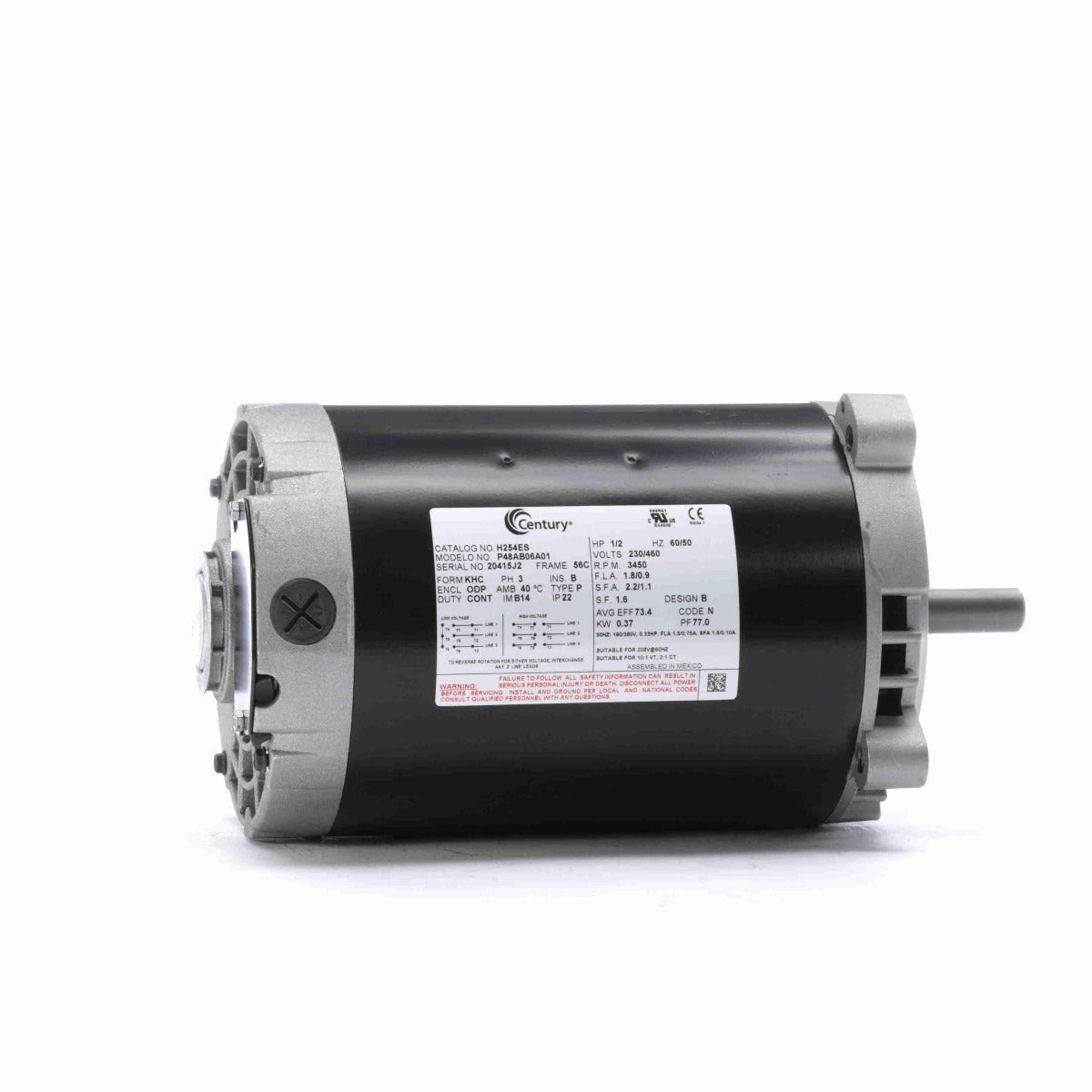

* Image is for reference only

H254ES Century Motor 1/2HP 3450/2850RPM K56C ODP 208-230/460 Volt 3 Phase

SKU: H254ES
$248.23
Sale $248.23
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: .50 Hp
Output KW: 0.37 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.6
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Protection Efficiency: 73.4 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.8/0.9 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: N CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 2 Rotation: Clockwise/Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.04 in
Frame Length: 6.59 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674070968 Weight: 21.00 LB
Packaged Length: 14.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.50 IN HTC: 8501.51.4040
Country of Origin: Mexico
