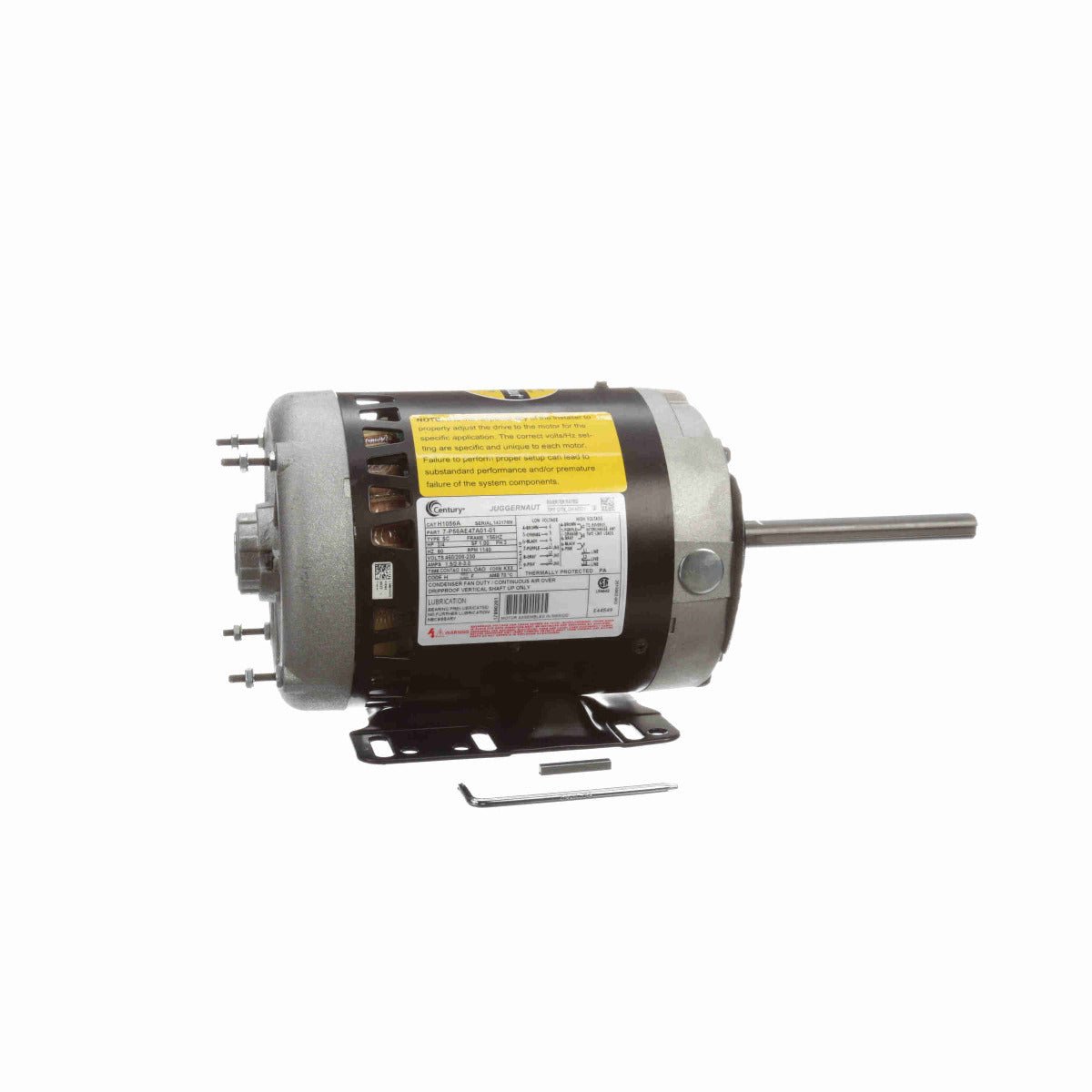

* Image is for reference only

H1056AV1 Century Motor 3/4HP 1140RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1056AV1
$417.19
Sale $417.19
Description
  • This motor replaces Century H1056A
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 0.75 Hp
Output KW: 0.56 kW Voltage: 230/460 V
Speed: 1140 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 74 %
Ambient Temperature: 70 °C Frequency: 60 Hz
Current: 3.2/1.6 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Mounting: Bolt-on Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Frame Length: 7.65 in
Shaft Diameter: 0.625 in Shaft Extension: 6.00 in

General Specifications

UPC: 786674076106 Weight: 27.83 LB
Packaged Length: 19.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.00 IN Country of Origin: Mexico
