Home » H1055AV1 Century Motor 1/2HP 1140RPM 56HZ OAO 208-230/460 Volt 3 Phase
H1055AV1 Century Motor 1/2HP 1140RPM 56HZ OAO 208 - 230/460 Volt 3 Phase - Square One Electric Motors & Pumps

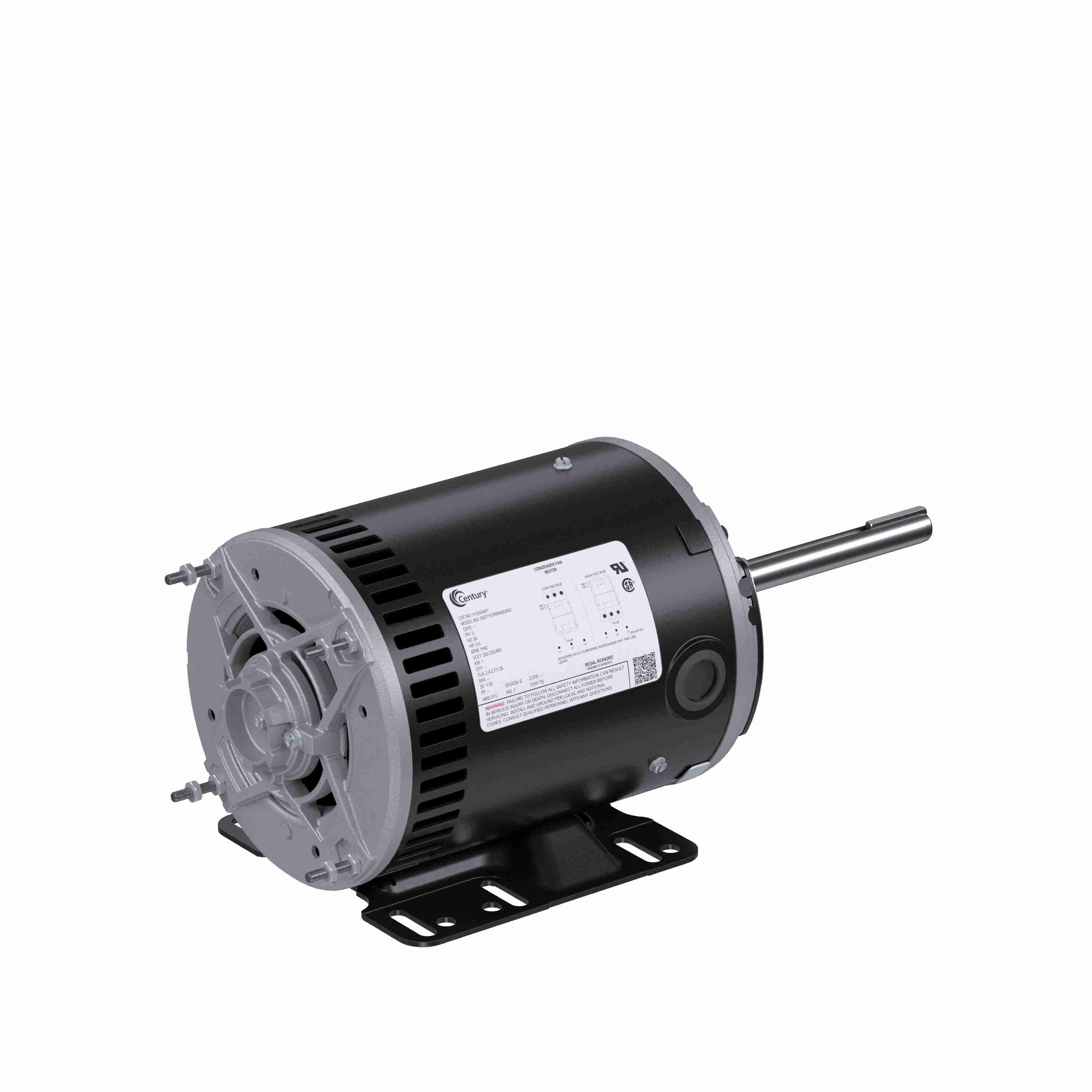

* Image is for reference only

H1055AV1 Century Motor 1/2HP 1140RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1055AV1
$389.90
Sale $389.90
Description
  • This motor replaces Century H1055A
  • High operating temps, Rated 70°C (158°F) Max Ambient temperature
  • Patented Max Guard® insulation system ensures dependable motor life under the adverse thermal and dielectric stresses imposed by the high switching frequencies of PWM medium voltage drives
  • VCD ™ Voltage Change Device enables quick 230V or 460V voltage selection
  • Double sealed ball bearings are pre-lubricated with a special formulation for moisture resistance and provide extra-long life
  • Automatic reset thermal protector protects against motor overload and automatically resets
  • Non-conductive greased bearings
  • UL® recognized and CSA® certified
  • Operational at 200-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 230/460 V
Speed: 1140 rpm Service Factor: 1.0
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 68 %
Ambient Temperature: 70 °C Frequency: 60 Hz
Current: 2.7/1.35 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Mounting: Bolt-on Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Frame Length: 7.15 in
Shaft Diameter: 0.625 in Shaft Extension: 6.0 in

General Specifications

UPC: 786674076090 Weight: 24.00 LB
Packaged Length: 19.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.00 IN HTC: 8501.51.4040
Country of Origin: Mexico
