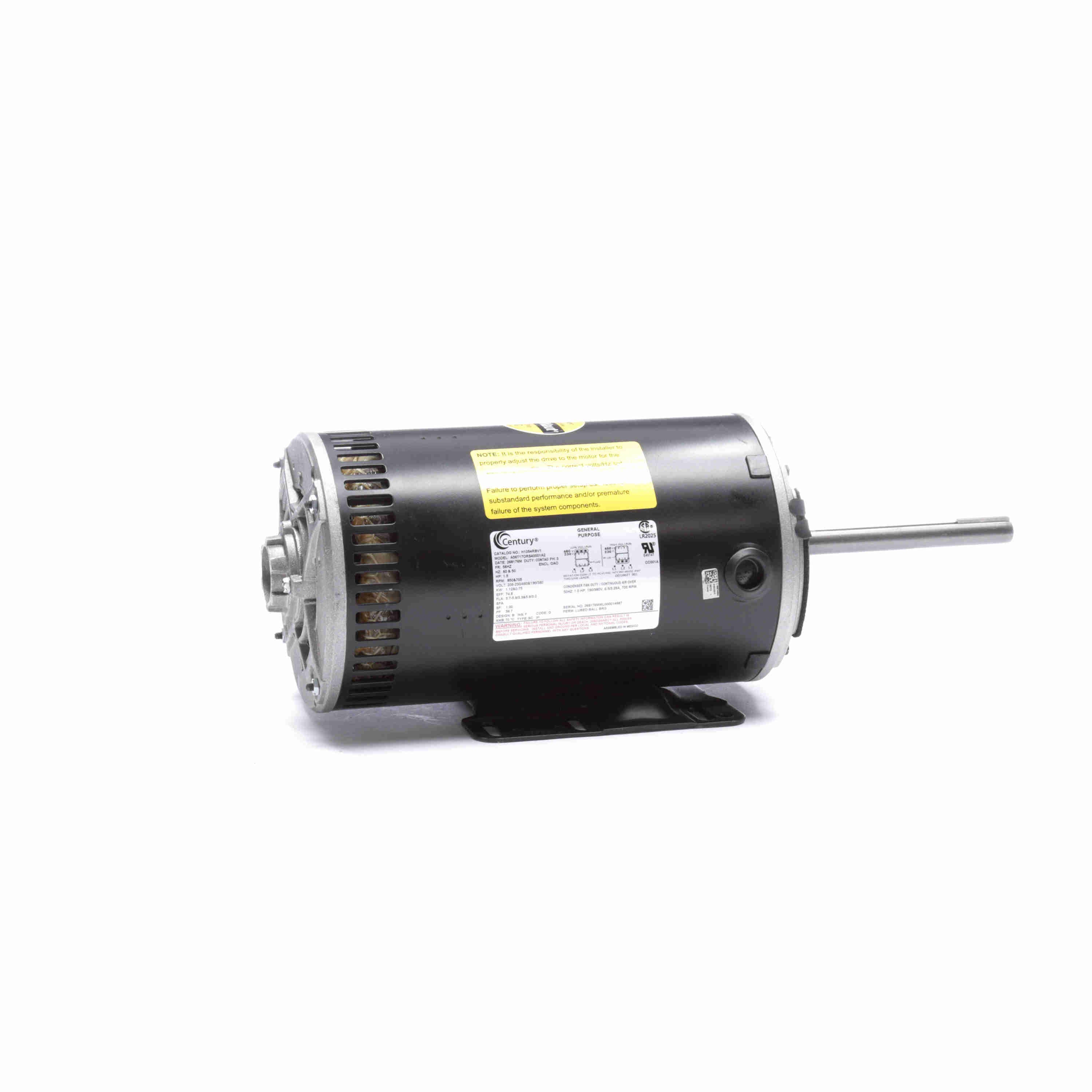

* Image is for reference only

H1054RBV1 Century Motor 1.5HP 850RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1054RBV1
$515.24
Sale $515.24
Description
  • This motor replaces Century H1054RB
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 208-230/460 V
Speed: 850 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 74 %
Ambient Temperature: 70 °C Frequency: 60 Hz
Current: 6.6-6.6/3.3 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 8 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 18.52 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 6 in

General Specifications

UPC: 786674074102 Weight: 48.00 LB
Packaged Length: 22.00 IN Packaged Width: 12.00 IN
Packaged Height: 12.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
