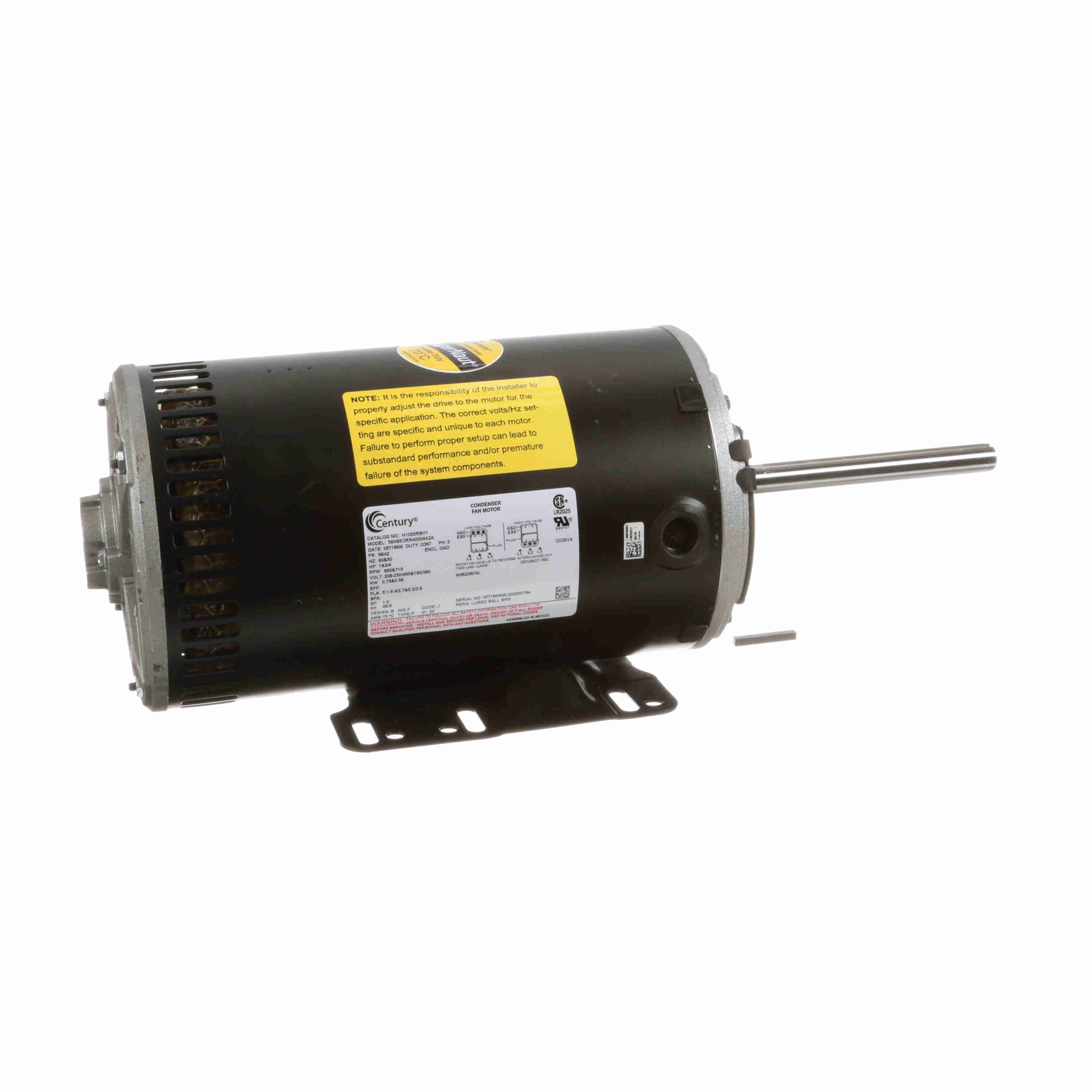

* Image is for reference only

H1053RBV1 Century Motor 1HP 850RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1053RBV1
$599.41
Sale $599.41
Description
  • This motor replaces Century H1053RB
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1&0.75 Hp
Output KW: 0.75 kW Voltage: 208-230/460&190/380 V
Speed: 850/715 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 72 %
Ambient Temperature: 70 °C Frequency: 60 Hz
Current: 5.1-5.4/2.7&5.2/2.6 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 8 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 18.52 in
Frame Length: 10.25 in Shaft Diameter: 0.625 in
Shaft Extension: 6 in

General Specifications

UPC: 786674074867 Weight: 47.00 LB
Packaged Length: 22.00 IN Packaged Width: 12.00 IN
Packaged Height: 12.00 IN HTC: 8501.51.6040
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 9.80 363.0 265.00 268.0 0 4.80 62.0 1.00
Full Load 2.70 100.0 98.80 100.0 865 1.04 48.8 1.00
Break-Down 7.20 267.0 302.00 306.0 618 4.06 70.2 1.00
Pull-Up 9.50 352.0 232.00 235.0 166 4.80 63.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 %
Current (Amps) 2.20 2.30 2.35 2.50 2.70
Rated Output (KW) 0.15 0.39 0.60 0.82 1.04
Efficiency (%) 0.0 49.8 64.9 70.2 73.3
Power Factor (%) 8.6 21.3 31.8 40.9 48.1
Speed (RPM) 890 885 880 870 865
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 24.70 49.40 74.10 98.80
