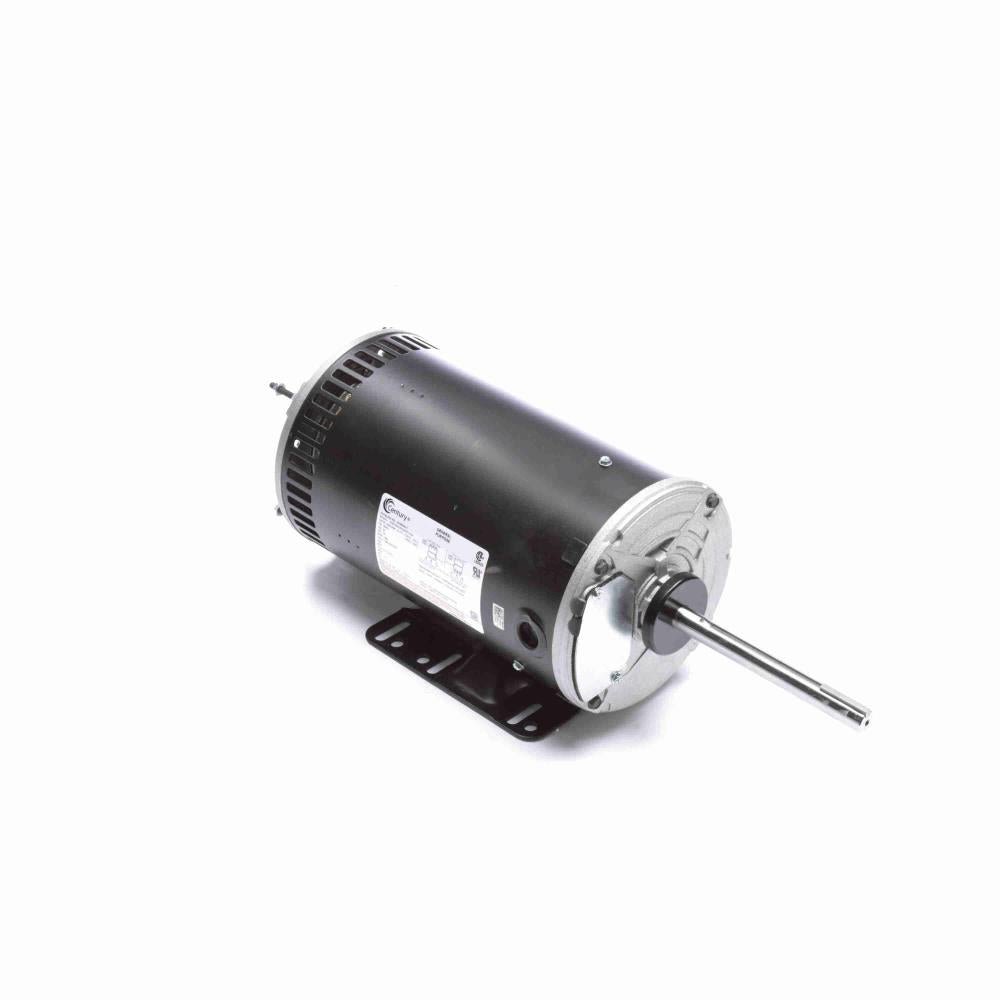

* Image is for reference only

H1053AV1 Century Motor 1HP 850RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1053AV1
$465.00
Sale $465.00
Description
  • This motor replaces Century H1053A
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 208-230/460 V
Speed: 850 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 70 °C
Frequency: 60 Hz Current: 5.1-5.4/2.7 A
Duty: Continuous Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 8 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 18.85 in
Frame Length: 10.15 in Shaft Diameter: 0.625 in
Shaft Extension: 6 in

General Specifications

UPC: 786674074089 Weight: 50.00 LB
Packaged Length: 23.00 IN Packaged Width: 10.00 IN
Packaged Height: 9.00 IN HTC: 8501.51.6040
Country of Origin: Mexico
