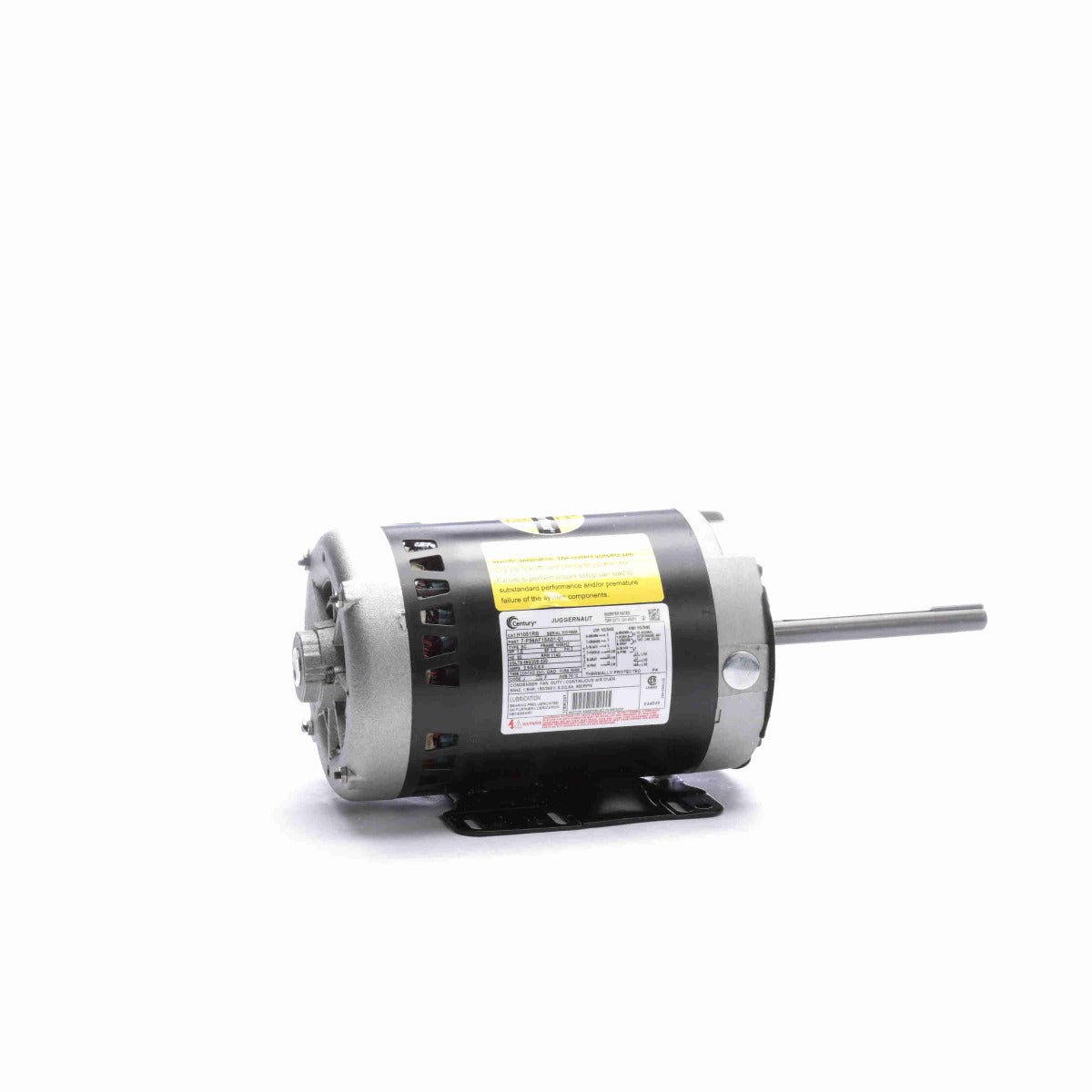

* Image is for reference only

H1051RBV1 Century Motor 1.5HP 1140RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1051RBV1
$486.61
Sale $486.61
Description



    • Replaces Century H1051RB
    • Rated 70°C Max Ambient temperature
    • VCD™ Voltage Change Device enables quick 230V or 460V voltage selection
    • Double sealed ball bearings are prelubricated with a special formulation for moisture resistance and provide extra long life
    • Shaft-up-design with external slinger
    • Quick-connect design for efficient OEM and retrofit installation
    • Automatic reset thermal protector protects against motor overload and automatically resets
    • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
    Specifications

    Nameplate Specifications

    Phase: 3 Output HP: 1.5 Hp
    Output KW: 1.1 kW Voltage: 230/460&190/380 V
    Speed: 1140/940 rpm Service Factor: 1
    Frame: 56HZ Enclosure: Open Air Over
    Thermal Protection: Thermally Protected Efficiency: 80&77 %
    Ambient Temperature: 70 °C Frequency: 60/50 Hz
    Current: 6/3&6.4/3.2 A Duty: Continuous
    Insulation Class: F UL: Recognized
    CSA: Y CE: N
    Number of Speeds: 1

    Technical Specifications

    Electrical Type: Squirrel Cage Induction Run Starting Method: Line Or Inverter
    Poles: 6 Rotation: Reversible
    Mounting: Rigid Base Drive End Bearing: Ball
    Opp Drive End Bearing: Ball Frame Material: Rolled Steel
    Shaft Type: Single Special Extension Frame Length: 9.65 in
    Shaft Diameter: 0.625 in Shaft Extension: 6 in

    General Specifications

    UPC: 786674076168 Weight: 46.66 LB
    Packaged Length: 23.00 IN Packaged Width: 10.00 IN
    Packaged Height: 9.00 IN Country of Origin: Mexico
