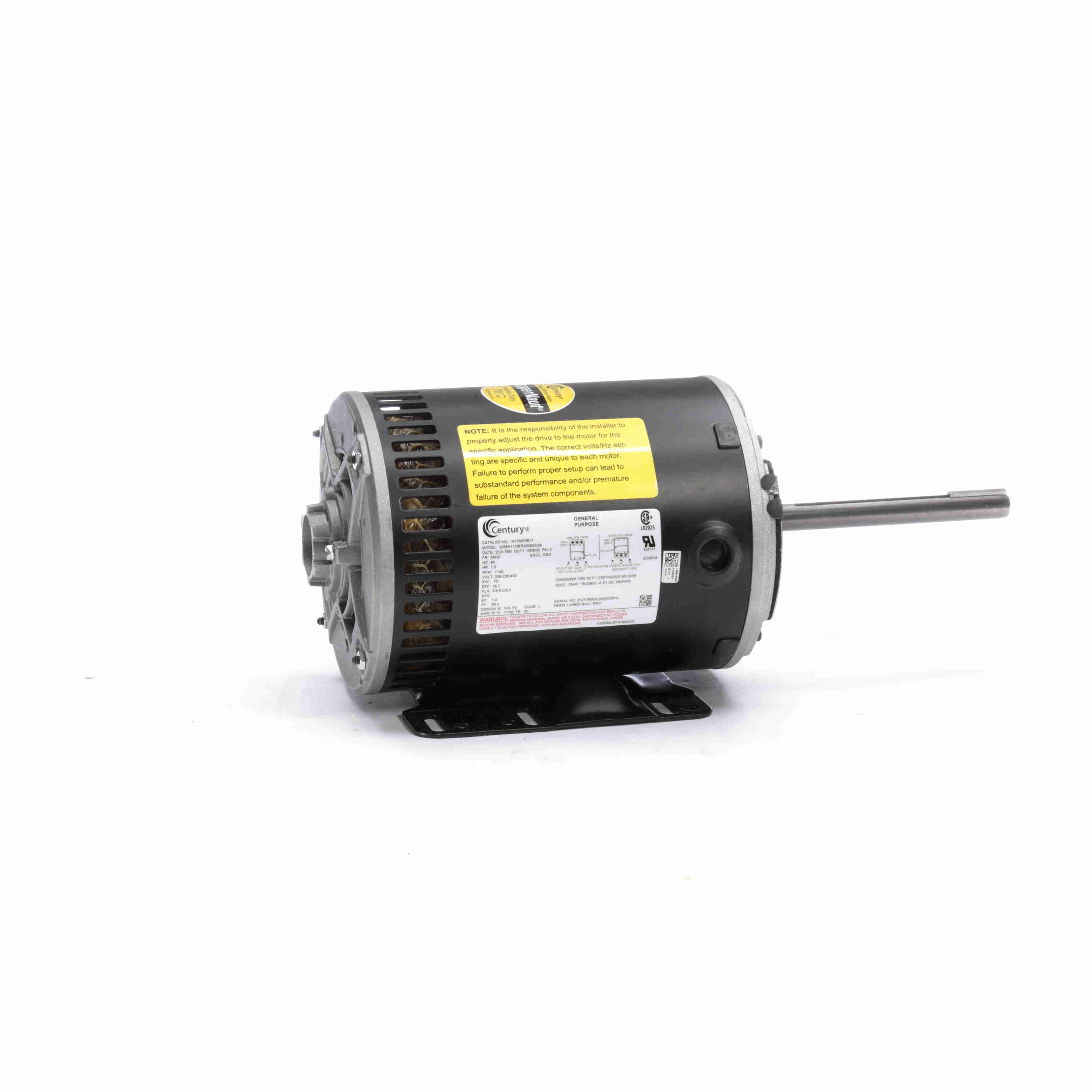

* Image is for reference only

H1050RBV1 Century Motor 1HP 1140RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1050RBV1
$419.81
Sale $419.81
Description
  • This motor replaces Century H1050RB
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 208-230/460&190/380 V
Speed: 1140/950 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 72 %
Ambient Temperature: 70 °C Frequency: 60 Hz
Current: 3.8-4.0/2.0 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 16.02 in
Frame Length: 7.65 in Shaft Diameter: 0.625 in
Shaft Extension: 6 in

General Specifications

UPC: 786674074058 Weight: 28.00 LB
Packaged Length: 19.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.00 IN HTC: 8501.51.6040
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 6.85 306.0 14.55 315.0 810 4.33 78.4 1.00
No Load 1.84 82.0 0.00 0.0 1,195 0.19 12.6 1.00
Locked-Rotor 9.50 424.0 11.53 250.0 0 5.36 69.8 1.00
Full Load 2.24 100.0 4.62 100.0 1,150 1.05 58.2 1.00
Pull-Up 9.50 424.0 11.53 250.0 0 5.36 69.8 1.00
