Home » H1032L Century Motor 2HP 1725RPM X145T TEAO 208-230/460 Volt 3 Phase
H1032L Century Motor 2HP 1725RPM X145T TEAO 208 - 230/460 Volt 3 Phase - Square One Electric Motors & Pumps

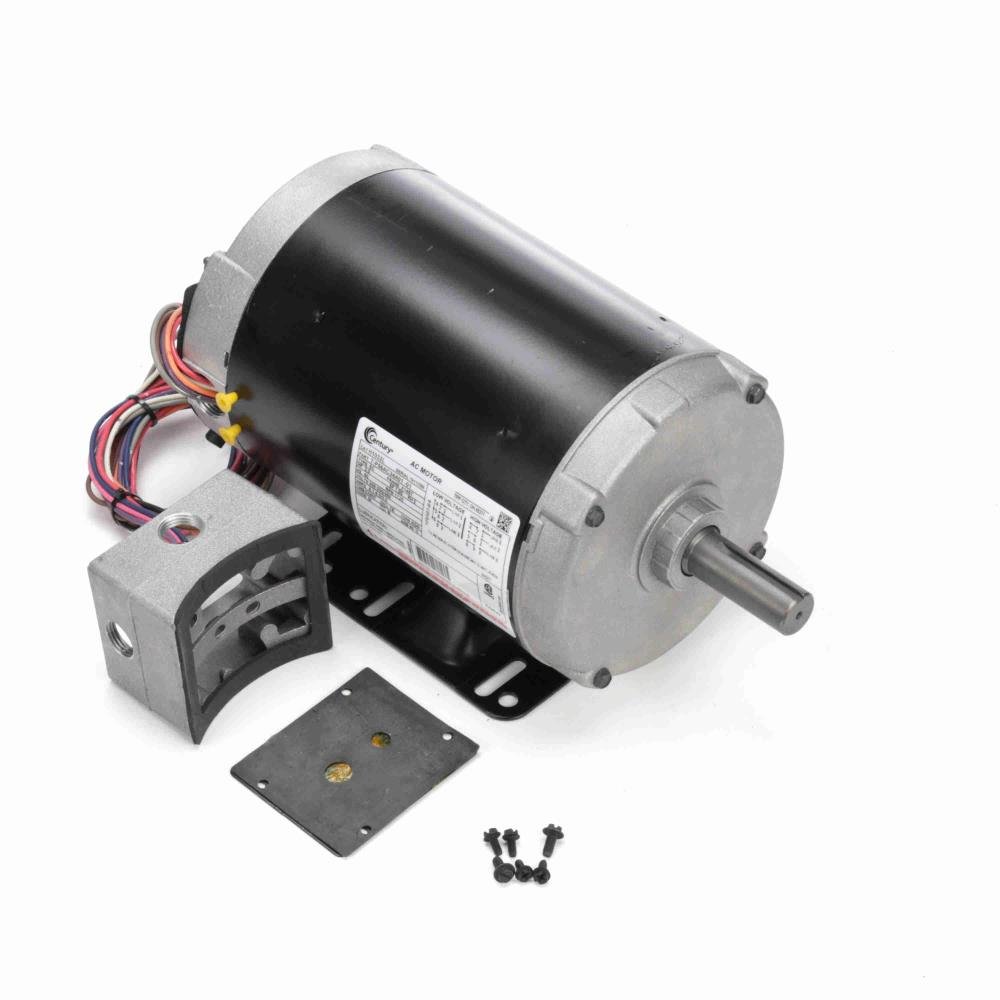

* Image is for reference only

H1032L Century Motor 2HP 1725RPM X145T TEAO 208-230/460 Volt 3 Phase

SKU: H1032L
$128.78
Sale $128.78
Description
  • This motor replaces Century H1032
  • Meets or exceeds all USA mandated efficiencies
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Continuous air over duty design allows consistent operation at the rated power. specifications
  • Double-shielded bearings extend the service life of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 208-230/460 V
Speed: 1725 rpm Service Factor: 1
Frame: X145T Enclosure: Totally Enclosed Air Over
Thermal Protection: No Protection Ambient Temperature: 65 °C
Frequency: 60 Hz Current: 6.1-6.0/3.0 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.31 in
Frame Length: 7.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in

General Specifications

UPC: 786674056153 Weight: 47.00 LB
Packaged Length: 17.00 IN Packaged Width: 11.00 IN
Packaged Height: 11.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
