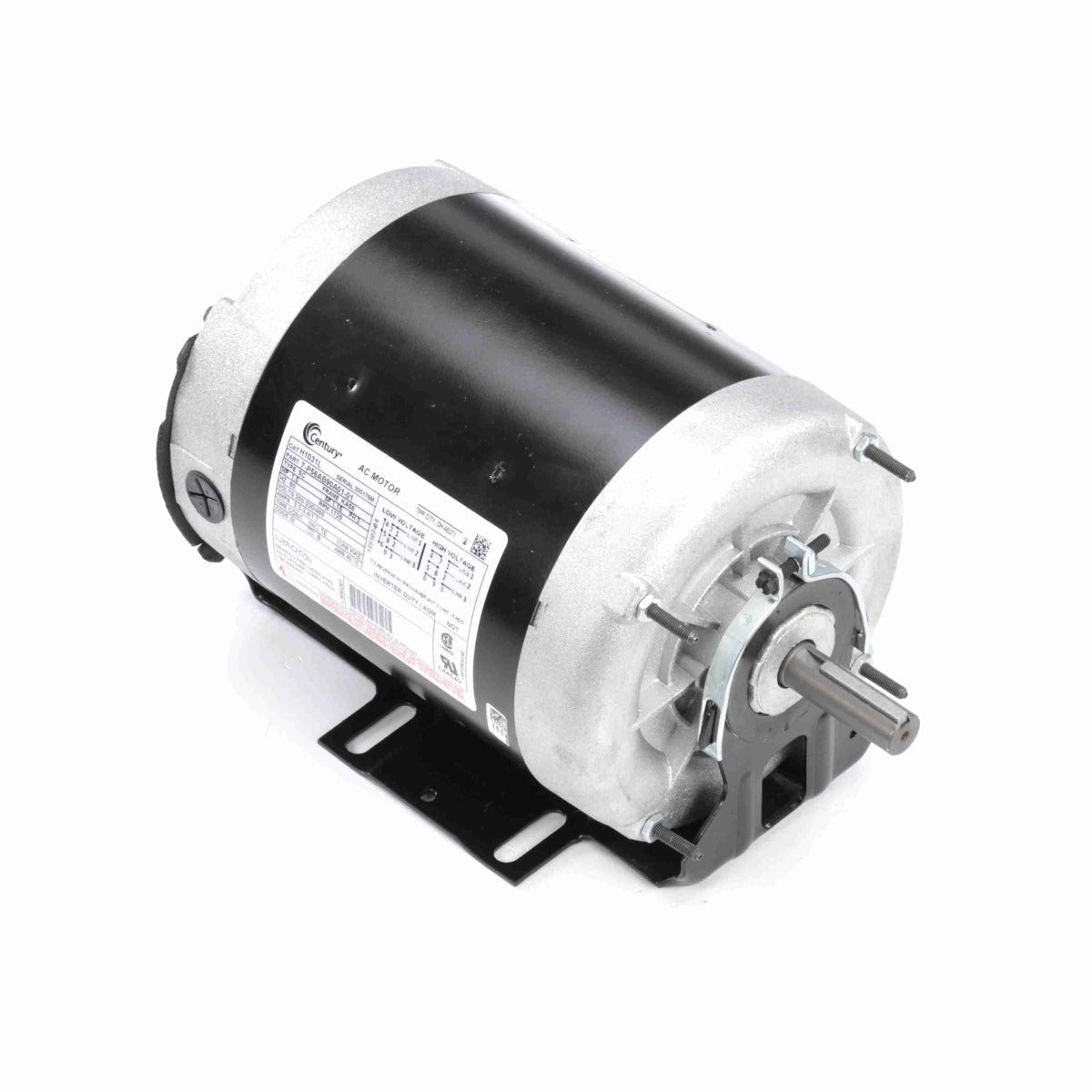

H1031L Century Motor 1HP 1725RPM KA56 TEAO 200-230/460 Volt 3 Phase

SKU: H1031L
$365.29
Sale $365.29
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Continuous air over duty design allows consistent operation at the rated power. specifications
  • Double-shielded bearings extend the service life of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 200-230/460 V
Speed: 1725 rpm Service Factor: 1.15
Frame: KA56 Enclosure: Totally Enclosed Air Over
Thermal Protection: No Protection Efficiency: 82.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 3.3-3.4/1.7 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.45 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674054524 Weight: 30.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
