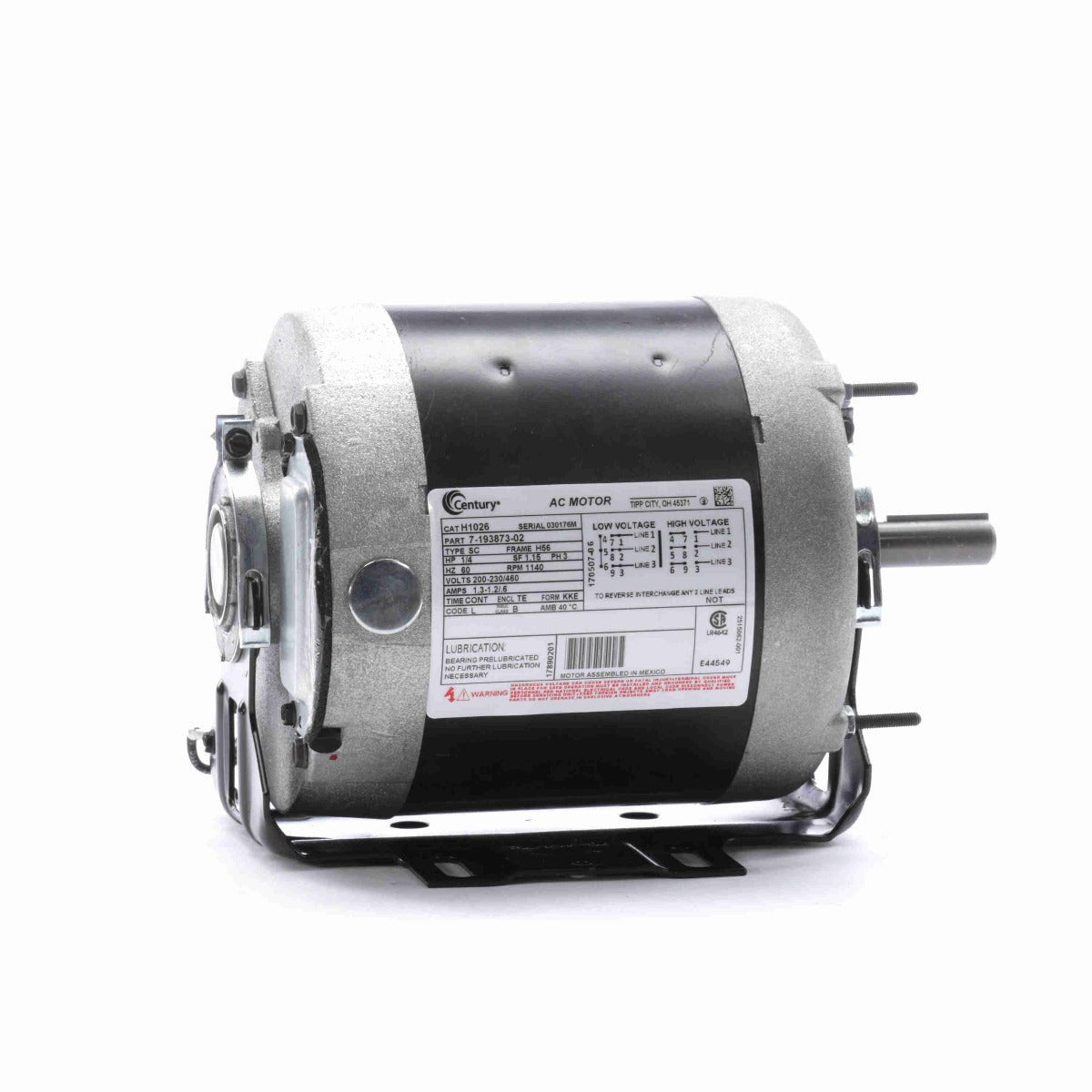

* Image is for reference only

H1026 Century Motor 1/4HP 1140RPM H56 TE 200-230/460 Volt 3 Phase

SKU: H1026
$297.88
Sale $297.88
Description

Century Motors H1026 Features:

  • This item replaces Marathon K282
  • Resilient Base
  • 7/8" extended thru-bolts, shaft-end



PRODUCT SPECIFICATIONS

General Specifications

UPC: 786674022455 Weight: 15.00 LB
Packaged Length: 13 IN Packaged Width: 10 IN
Packaged Height: 10 IN



Nameplate Specifications

Output HP: 1/4 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 200-230/460 V
Current: 1.3-1.2/.6 A Speed: 1140 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: B
Frame: H56 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1



Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 6 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 10.07 in
Frame Length: 4.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in
