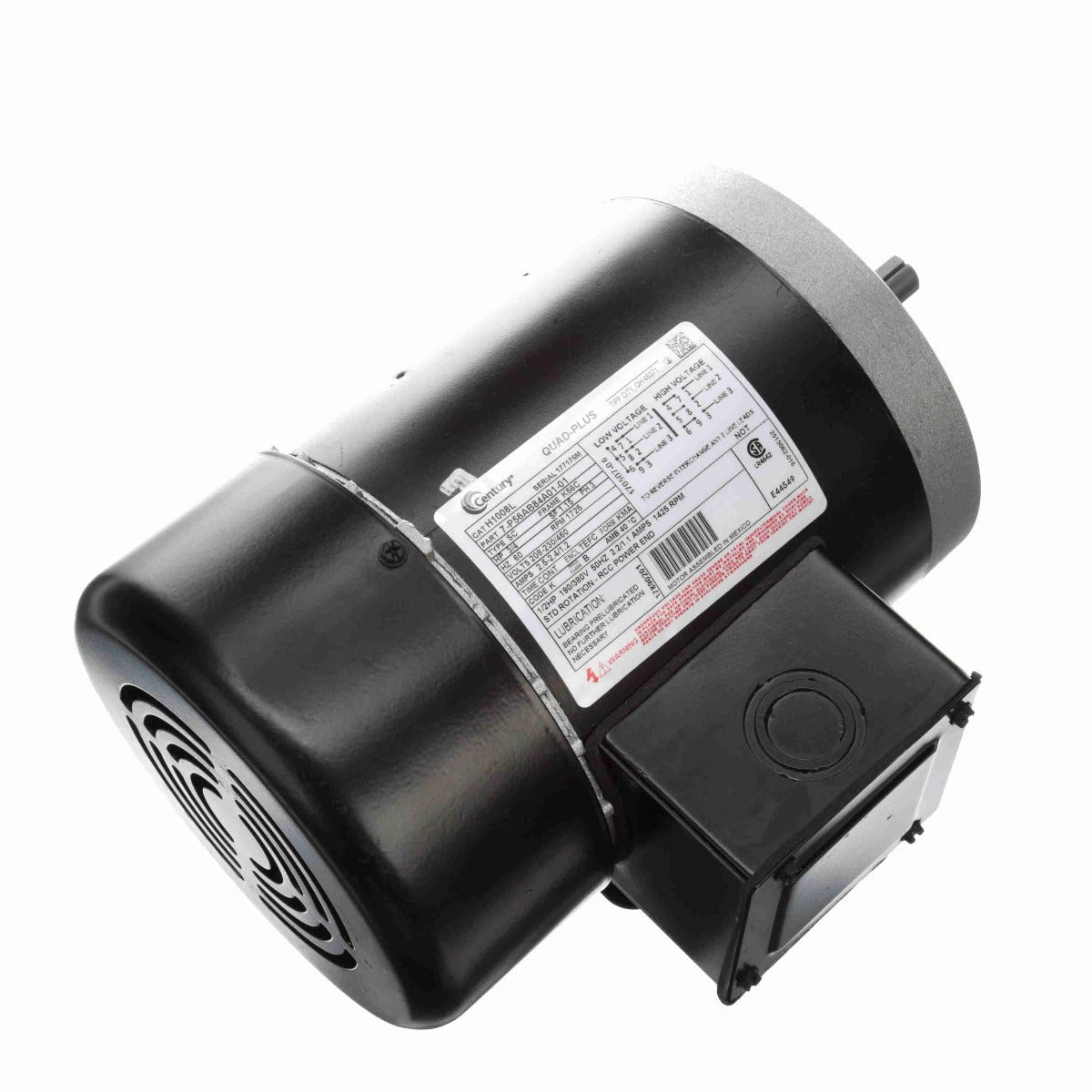

Century Motors H1008L Features:
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
- Continuous duty cycle design allows maximum operation at the rated power specifications.
- Class B or F Insulation protects motor for a maximum temperature rating.
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Â
PRODUCT SPECIFICATIONS
General Specifications
| UPC: |
786674055767 |
Weight: |
27.00 LB |
| Packaged Length: |
17 IN |
Packaged Width: |
11 IN |
| Packaged Height: |
11 IN |
Â
Nameplate Specifications
| Output HP: |
3/4 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
2.5-2.4/1.2 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
K56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Number of Speeds: |
1 |
Â
Technical Specifications
| Electrical Type: |
Polyphase, Induction Type, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible Counterclockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
11.71 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.07 in |
