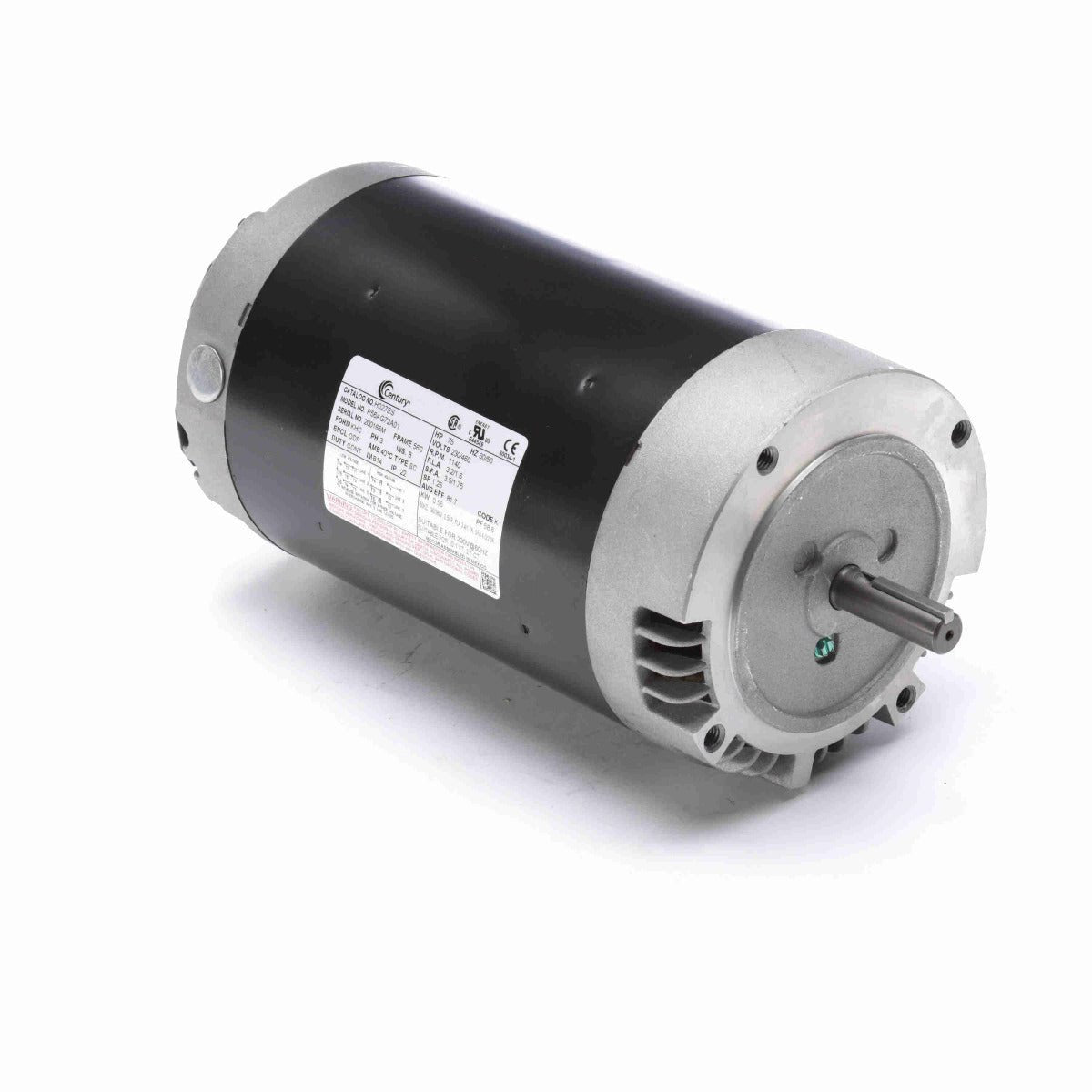

Century Motors H028 Features:
- NEMA C-Face
- Double sealed ball bearings
Â
PRODUCT SPECIFICATIONS
General Specifications
| UPC: |
786674022103 |
Weight: |
28.00 LB |
| Packaged Length: |
14.07 IN |
Packaged Width: |
9.5 IN |
| Packaged Height: |
11.37 IN |
Â
Nameplate Specifications
| Output HP: |
3/4 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
200-230/460 V |
| Current: |
4.0-4.0/2.0 A |
Speed: |
1140 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
J56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Number of Speeds: |
1 |
Â
Technical Specifications
| Electrical Type: |
Polyphase, Induction Type, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible Counterclockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
11.07 in |
| Frame Length: |
5.13 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.07 in |
Limited Quantity - Please Call for Availability.
